Model

Brand

TRANSITION

Model

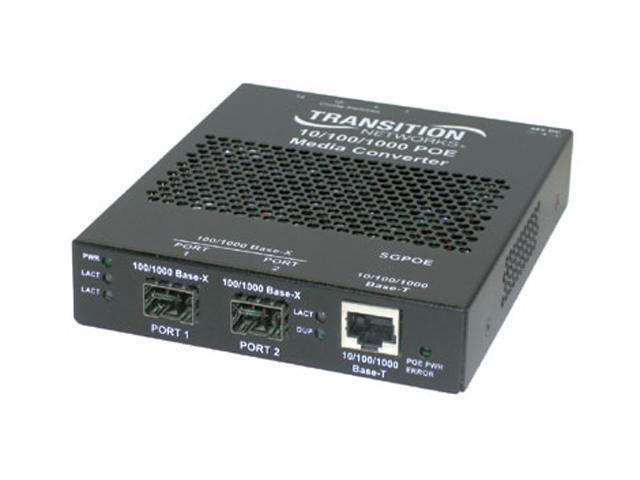

SGPOE1039-100-NA

Details

Standards

SGPOE1040-100: IEEE Std. 802.3, IEEE Std. 802.3af

TN-SFP-SX: IEEE 802.3 2003; ANSI X3.297-1997

Wavelength

TN-SFP-SX: 850 nm

Ports

SGPOE1040-100:
1 x RJ-45
1 x SFP (mini-GBIC) Expansion Slot

TN-SFP-SX:
1 x 1000Base-LX
1 x SFP (mini-GBIC)

Max Distance

TN-SFP-SX: 1800 ft

Transfer Rate

1 Gbps

Power Adapter

90 – 250VAC external power supply

External AC/DC required; 48vdc 0.67A

Environmental

Temperature

SGPOE1040-100: 0 – 40°C

TN-SFP-SX: -10° – 85°C

Humidity

SGPOE1040-100: 5% – 95% humidity non-condensing

Features

Feature

SGPOE1040-100

SFP ports support either 100Base or 1000Base fiber

Redundant SFP port option

IEEE802.3af Power-over-Ethernet Compatible

48 VDC PSE Output Voltage

Signal Pair or Spare Pair Power Insertion

PD Detection Signature

POE Legacy Detect for non-IEEE 802.3af compatible Powered Devices (PD)

Over-Current Protection & Under-Current Detection

Powered Device Reset

Switch selectable features and port settings

Minimum Load Sensing

Fault Protection Input

Auto-Negotiation

AutoCross

- Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.

Link Pass Through available on SGPOE10xx-100

- Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal

Automatic Link Restoration

- Transition Networks's converters will automatically re-establish link in all network conditions.

External AC power supply



TN-SFP-SX

Applications:

- Gigabit Ethernet Switches and Routers


- Fiber Channel Switch Infrastructure


- XDSL Applications

- Metro Edge Switching

Hot-Pluggable SFP Footprint LC Optical Transceiver

Digital Diagnostic Function

Class 1 Laser International Safety Standard IEC-60825 Compliant

Compatible with Small Form Factor Pluggable Mult-Sourcing Agreement (MSA)

TN-SFP-SX or -LXx SFP modules:

- Compliant with IEEE 802.3z Gigabit Ethernet
- Compliant with Fiber Channel 1X SM-LC-L FC-PI

TN-SFP-OC3x SFP modules:

- Compliant with 100BASE-FX
- Compliant with Intermediate-Reach SONET OC-3 / SDH STM-1 (S-1.1)

TN-SFP-OC12x SFP modules:

- Compliant with Intermediate-Reach SONET OC-12 / SDH STM-4 (S-4.1)

TN-SFP-FC2Xx SFP modules:

- Compliant with IEEE 802.3z Gigabit Ethernet
- Compliant with Fiber Channel 1X/2X SM-LC-L FC-PI
- Compliant with Short-Reach SONET OC-48 / SDH STM-16 (S-16.1)

Dimensions & Weight

Dimensions

SGPOE1040-100: 5.1 x 4.4 x 1 in

TN-SFP-SX: 2.18 x 0.52 x 0.33 in
