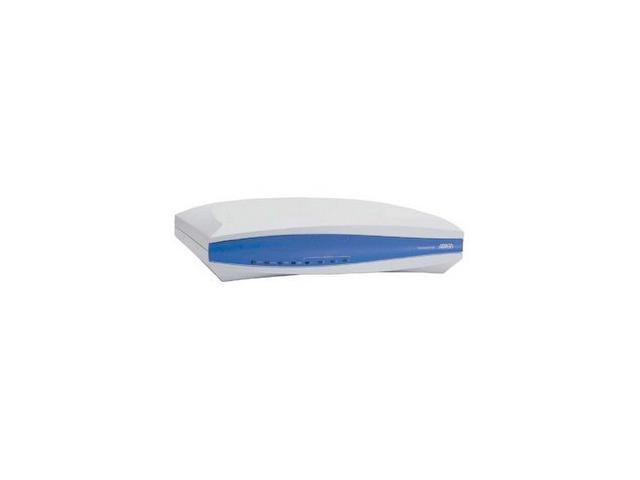

Adtran NetVanta 3130 1700611G2 10/100Mbps Fixed-port ADSL Access Router with Four-port Switch

Adtran NetVanta 3130 1700611G2 Fixed-port ADSL Access Router with Four-port Switch ADSL/ADSL2/ADSL2+ Interface ADSL ITU G.992.1 (Annex A) ADSL ITU G.992.2 (Annex A) G.Lite Extended Reach ADSL (RADSL) ADSL2 ITU G.992.3 (Annex A) ADSL2+ ITU G

ADSL/ADSL2/ADSL2+ Interface
ADSL ITU G.992.1 (Annex A)
ADSL ITU G.992.2 (Annex A) G.Lite
Extended Reach ADSL (RADSL)
ADSL2 ITU G.992.3 (Annex A)
ADSL2+ ITU G.992.5 (Annex A) WAN Ports
4 x 10/100Mbps LAN Ports

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The NetVanta 3130 is a fixed-port ADSL/ ADSL2/ADSL2+ IP access router with an integral four-port Ethernet switch. It provides a single ADSL network interface and four auto-sensing 10/100Base-T Ethernet interfaces. The NetVanta 3130 can also be pre-configured with a built-in analog modem for dial backup or remote management. This product is ideal for carrier-bundled service offerings and enterprise-level Internet access for secure, high-speed corporate connectivity. In addition to supporting ADSL (Annex A), and ADSL2, the NetVanta 3130 supports today's most advanced ADSL technology, ADSL2+, for applications taking advantage of its greater reach and higher bandwidth, up to 25 Mbps.

Learn more about the ADTRAN 1700611G2

Model

Brand: Adtran

Series: NetVanta 3130

Model: 1700611G2

Details

Speed: 10/100Mbps

WAN Ports: ADSL/ADSL2/ADSL2+ Interface
ADSL ITU G.992.1 (Annex A)
ADSL ITU G.992.2 (Annex A) G.Lite
Extended Reach ADSL (RADSL)
ADSL2 ITU G.992.3 (Annex A)
ADSL2+ ITU G.992.5 (Annex A)

LAN Ports: 4 x 10/100Mbps

LEDs: Power (Stat)
WAN (Ethernet)
VPN
LAN (Switch Ports)
Dial Backup (optional)

VPN: IPSec Tunnel Mode: 10 Tunnels
Encryption: DES, 3DES, and AES
Authentication Mechanisims: XAUTH, Digital certificates, Pre-Shared Keys, and Secure ID

Temperature: 0°C - 50°C

Humidity: Up to 95%, non-condensing

Features

Features: IP access router for broadband access using ADSL, ADSL2, and ADSL2+
Integral four-port managed Ethernet switch
Voice Quality Monitoring (VQM) and Mean Opinion Score (MOS) prediction
Standards-based routing/switching protocols
Stateful inspection firewall for network security
IPSec Virtual Private Network (VPN) for secure corporate connectivity across the Internet
Network Access Translation (NAT)-compatible Session Initiation Protocol (SIP) Application Layer Gateway (ALG) for Voiceover IP (VoIP)
Wi-Fi® Access Controller for centralized management of NetVanta Wireless Access Points (WAPs)
Recognizable Command Line Interface (CLI) to reduce learning curve
Intuitive Web-based Graphical User Interface (GUI) with step-by-step setup wizards
