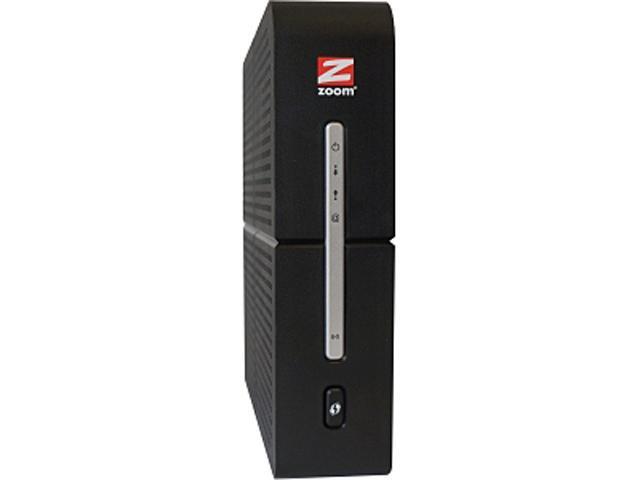

Zoom Model 5363 Cable Modem plus AC1900 Dual Band Wireless Router, Certified by Comcast, Time Warner and more

Compatible with Time Warner, Comcast, Charter, Cablevision, and others
DOCSIS 3.0, 8x4 cable modem top speed up to 343 Mbps
3x3 dual-band wireless speed up to 1900 Mbps
4x Gigabit Ethernet ports

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Model 5363 combines a Comcast and Time Warner Cable (TWC) certified 343 Mbps DOCSIS 3.0 8x4 Cable Modem with a very high-performance 1900 Mbps 802.11ac WiFi Router with 4 GigE LAN ports. The 5363 is certified for money-saving own-your-cable-modem programs by Comcast and TWC. The 5363's wireless networking features are the best in the industry and include 3x3 internal antennas for both a "1300 Mbps" 802.11ac/a radio operating at 5 GHz and a "600 Mbps" 802.11n/g/b radio operating at 2.4 GHZ. Speed and range are supercharged by wireless beamforming for both 2.4 and 5 GHz radios. Beamforming focuses Model 5363's wireless energy on each wireless device. 11ac beamforming is used when connecting to 802.11ac clients. Broadcom AnyBeam is used when connecting to ANY other 2.4 or 5.0GHz wireless client even if that smarphone, computer, tablet, smart TV or other WiFi compatible device doesn't have beamforming technology. Wireless performance is also boosted by Broadcom TurboQAM technology to increase maximum wireless-N data rates at 2.4 GHz to 600 Mbps, 33% over competitors without this feature. Beamforming, dual wireless radios, and 3x3 antennas for both radios provide a significant advantage, especially in locations with interference from nearby wireless networks. Model 5363 is certified by Comcast, TWC, and CableLabs to support DOCSIS 3.0 and IPv6, operating at 343 Mbps downstream, 123 Mbps upstream. DOCSIS 2.0 and 1.1 are also supported. Advanced router features include: wireless security with highest grade protection, , advanced firewall, parental controls, up to 16 guest networks (SSIDs), VPN tunneling, static and dynamic IP routing. Additional wireless LAN features include: 802.11e Quality of Service, WMM admission control, WDS for extending wireless range using repeaters, and WPS for easy wireless setup. The modem/router combination is a compact 8.2 X 7.4 X 2 inches. Model 5363 has a two year warranty from Zoom Telephonics, a Boston-based company founded in 1977.

Learn more about the Zoom Telephonics 5363

Model

Brand: Zoom

Model: 5363

Details

Type: Gateway Modem

Interface: Four 10/100/1000 Ethernet LAN Ports, 802.11 a/b/g/n/ac wireless

Cable Interface: F-Connector, female, 75O

Features

Features: Gateway:DHCP, NAPT, VPN tunneling, static routing and dynamic IP routing (RIPv1, RIPv2), SPI firewall with DoS(Denial of Service) protection and intrusion detection, IP filtering, Port filtering, URL filtering, full suite of ALGs, UPnP IGD 1.0 WiFi Homespot, L2oGRE tunneling

Wireless LAN:
802.11a/b/g/n/ac WiFi
802.11e QoS (Quality of Service)
WMM admission control Up to 16 SSIDs (8 per radio)
AnyBeam for implicit beamforming with 802.11 a/b/g/n
Explicit beamforming with 802.11ac

Security:WEP-64/128
WPA-PSK
WPA
WPA2-TKIP
AES
802.1x
802.11i (pre-authentication)

Operating Temperature:32 degree F to 104 degree F (0 degree C to 40 degree C)

Storage Temperature:-22 °F to 158 °F (-30 °C to 70 °C)

Operating Humidity:5 to 95% R.H. (non-condensing)

Regulatory:FCC 15B, FCC 15C, FCC 15E, UL 60950-1 US safety, RoHS

Power Adapter:Input: 110/220 VAC, 50/60 Hz, Output: 12VDC/1.5 Amp. US plug standard. Other plugs available.

Packaging

Package Contents: Cable Modem/Router, power cube, Ethernet cable, Quick Start flyer

Warranty, Returns, And Additional Information

Manufacturer Contact Info
Manufacturer Product Page|
View other products from Zoom Telephonics

Customer Reviews of the Zoom Telephonics 5363

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (2) 0% (0) 50% (1) 0% (0) 50% (1) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Christopher D. 7/7/2015 6:35:15 AM Ownership: 2/5 Verified Owner	Rating: 2/5Always disconnects at XBOX Live This review is from: Zoom Model 5363 Cable Modem plus AC1900 Dual Band Wireless Router, Certified by Comcast, Time Warner and more Pros: affordable AC cable modem router Cons: always disconnect on XBOX Live (Call of Duty). I have followed all instructions in their manual (DMZ, port triggering and plug and play - UPnP) but still would not stay connected. It always drops. I have return these product. 0 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
Judah Y. 5/25/2015 5:22:15 PM Ownership: 4/5 Verified Owner	Rating: 4/5Working as Advertised This review is from: Zoom Model 5363 Cable Modem plus AC1900 Dual Band Wireless Router, Certified by Comcast, Time Warner and more Pros: No need for a separate router because of 4 ports. In the long term I will save money by no longer renting from the cable company. Customer service was very helpful where the user manual fell short. Cons: User manual is not well written. Most examples and much of the wording was incorrect or incoherent. Customer service is not 24-hour. Other Thoughts: Great choice if you have multiple hard-wired and WI-Fi devices and do not want the extra hassle of connecting a separate router. Did you find this review helpful? Thanks for the valuable feedback you provided!
