Item#: N82E16833978023

LevelOne POS-4000 12V DC High Power PoE Splitter

  • LAN Interface:
  • IEEE 802.3x, Auto-Detection for 10/100BASE-T and full/half duplex
  • Standard Straight-through, or Cross-over CAT 5 Cable
  • Automatic MDIX function
  • RJ-45 Connector x 2
  • LED Indicators:
  • Pin It
  • Email this page
ICON Loading...

Product Overview

The LevelOne POS-4000 is a PoE Splitter working with the POI-4000, FSW-0513 and POH-1260 high power PoE injectors for enabling PoE functionality to network device that requires more power. The POS-4000 is capable of supporting maximum power output 12VDC/2.5A for device that requires power up to 30W. Internal current limit, short-circuit and overload protection are implemented to maintain safety of connected device. Furthermore, using with the POR-0100 PoE repeater can extend the PoE connecting distance beyond additional 100 meters.

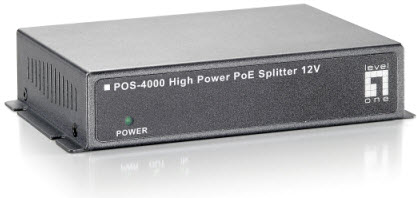

POS-4000

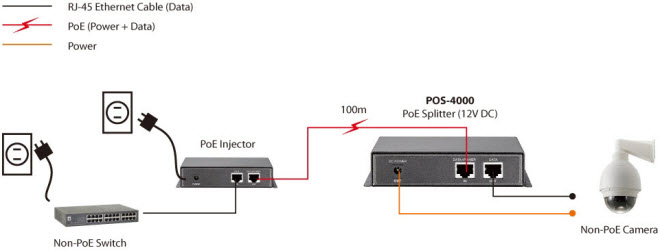

POS-4000 diagram

Key Features

  • Enables high-power PoE connectivity for non-PoE device
  • Max. power output up to 12VDC/2.5A (30W)
  • Simple Plug and Play installation

Package Contents

  • POS-4000 x 1
  • Output Power Jack x 1
  • Quick Installation Guide x 1


PoE Splitter Comparison

Model # POS-1001 POS-1002 POS-3000 POS-4000
PoE 802.3af 802.3af 802.3af/at Yes
Power Output 5-12V DC 5-12V DC 5-12V DC 3-12V DC
Power Supply PoE PoE PoE PoE
IP-Rating - - - -



Learn more about the LevelOne POS-4000

Model

Brand
LevelOne
Model
POS-4000

Spec

Specifications
LAN Interface:
IEEE 802.3x, Auto-Detection for 10/100BASE-T and full/half duplex
Standard Straight-through, or Cross-over CAT 5 Cable
Automatic MDIX function
RJ-45 Connector x 2

LED Indicators:
POWER: Power is ON

Input Power Requirement:
Pin Assignment and Polarity: 4/5 (+), 7/8 (-)

Regulations & Approvals:
FCC Rules Part 15
CE

Physical Dimension: (L x W x H)
120mm x 90mm x 28mm

Operating Temperature:
0°C~50°C

Operating Environment:
Humidity: 5% to 95% non-condensing

Features

Features
12 DC 2.5A High Power PoE Splitter

Split Power Over Ethernet (PoE) to remote devices

DC Output:12V DC

Ethernet 100 Mbps Wire Speed

Simple to install – Plug & Play

Customer Reviews of the LevelOne POS-4000

There are no reviews yet... do you own this product? Write a Review
