Model

Brand

U.S. Robotics

Model

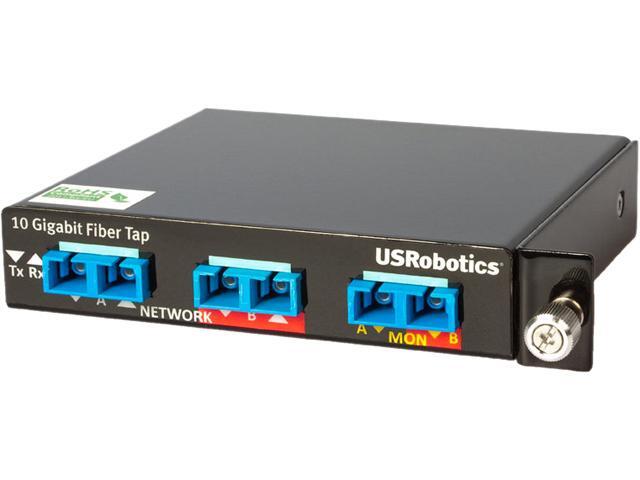

USR4515LC

Details

Type

Fiber Tap

Specifications

Physical

Metal 1U chassis
Two TX/RX LC Fiber Network Ports
Two simplex TX LC Fiber Monitor Ports

Fiber

LC Fiber connectors
50/50 Split Ratio
4.0 dB Insertion Loss
SR: 50 micron fiber diameter, wavelength 850 nm
SX: 50 micron fiber diameter, wavelength 850 nm
LR: 9 micron fiber diameter, wavelength 1310/1550 nm
LX: 9 micron fiber diameter, wavelength 1310/1550 nm

Environmental

Temperature:
Operating Temperature: 0 degree to 40 degree C
Non-Operating Temperature: -30 degree to 65 degree C
Humidity: Less than 95% non-condensing operating or non-operating

Regulatory & Certifications

CE approved
RoHS Compliant
WEEE Compliant

Package Contents
USRobotics Fiber Tap with rackmount bracket

Features

Features

Monitoring & Analysis

Captures and delivers a copy of all traffic to any analysis tool
100% visibility into the network - including VLAN tags
View all traffic on both sides of full duplex links
Reduces degradation of switch performance due to port mirroring
View Layer 1 and 2 errors such as runts and CRC errors not seen when performing network monitoring using SPAN ports
Full duplex monitoring
Best method to measure network link's performance
Great for network analysis and troubleshooting, IDS and monitoring applications

Network Stability

Ideal for 24x7 permanent access - eliminating the need to connect tools each time a link needs to be monitored
Non-intrusive way to connect a network tool
Minimize traffic delay
Fault-tolerant design

Secure & Reliable

Passive access means no interference of network traffic
Invisible on the network - no IP address means additional security
No single point of failure
Network traffic will continue to pass uninterrupted

Excellent Compatibility

50/50 split ratio
Multimode models support both 1G and 10G
Singlemode models support both 1G and 10G
Supports multiple topologies: Gigabit Ethernet, ATM, OC3-48, and SONET

Simple installation

Plug and play
No power required
Connectors on front for easy access and operation
Comes with convenient built-in rackmount adapter for use with the optional 1U 3 unit rack mount.
