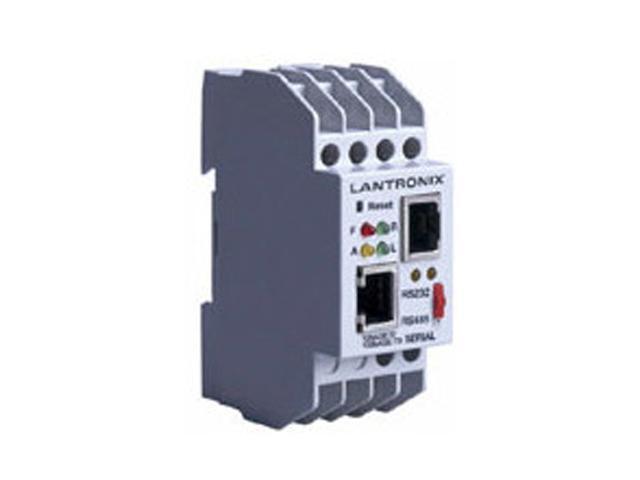

Lantronix XSDRSN-02 XPress-DR Device Server

Sold and Shipped by Newegg

Learn more about the Lantronix XSDRSN-02

Specifications: Input Voltage: 9 V DC to 30 V DC

Power Consumption: 3 W Maximum

Temperature: 32°F (0°C) to 140°F (60°C) Operating

Humidity: 20 to 90% Non-condensing Relative Humidity Operating

Additional Information:
Packaged in a rugged DIN-rail mount case.
Windows 95/98/ME/NT/2000-based configuration software simplifies initial setup.
Configurable serial interface supports RS-232, RS-422, or RS-485.
9-30VDC/9-24VAC power input.

Compatibility:
Windows 95
Windows 98
Windows ME
Windows NT
Windows 2000

Certifications & Standards:
UL
CSA
TUV
FCC
CE
FM Class I
Div. 2
IEEE 802.3
IEEE 802.3u
RoHS

Dimensions: 1.42" x 3.54" x 2.36"

Features: Data/Stop Bit:
2 Stop Bit2
8 Data Bit8

Flow Control:
XON/XOFF
RTS/CTS

Interfaces/Ports: 1 x RJ-45

Data Transfer Rate:
300 bps to 112.50 Kbps Serial
100 Mbps Fast Ethernet
10 Mbps Ethernet

Management:
SNMP
Telnet
HTTP (web browser)

Protocols:
TCP/IP
ARP
ICMP
SNMP
BootP
DHCP
TFTP
HTTP

Status Indicators:
Ready
Fault/Configuration
Activity
Link
Serial Transmit Data
Serial Receive Data.
