Item#: N82E16834982131

j5create JUD500 Ultra Station

  • 1 x VGA Port
  • 1 x HDMI Port
  • 1 x 10/100 Base-T Ethernet RJ-45 connector
  • 1 x USB 2.0 port
  • 1 x USB 3.0 port
  • 1 x USB 3.0 port with Battery Charger 1.1 A-type Female Connector
  • 1 x 3.5 mm Microphone Po
  • Pin It
  • Email this page
ICON Loading...
  • USB 3.0 Plug-and-Play Compatible
  • Add an External Display Through VGA or HDMI with a 2048 X 1152 Resolution
  • Wormhole Technology Allows Keyboard and Mouse Sharing Between Two Devices
  • Compatible with Mac to Mac / Windows to Windows / Mac to Windows / Mac to iPad (keyboard only for iPad)

The j5create JUD500 Ultra Station provides all the ports you need in one sleek design. The Ultra Station is an intelligent USB 3.0 laptop docking station that provides a host of connectivity options for Ultrabooks, laptops, and MacBooks. In addition to allowing a second monitor to be attached via HDMI or VGA connectors, the Ultra Station has connections for Ethernet, speakers, microphone, and other USB 2.0 and 3.0 peripherals.

The Ultra Station also contains j5create's Wormhole technology which includes KM functionality built in - use either keyboard or mouse to control the other device. This revolutionary technology allows you to drag and drop or copy/paste files easily and quickly across Windows to Windows or Mac to Mac and even direct transfers between Macs and Windows.

Connecting two computers with just one USB cable, the Ultra Station is the perfect solution for expanding your Ultrabook or MacBook into a full size workstation. Increase productivity with cross-platform multitasking.

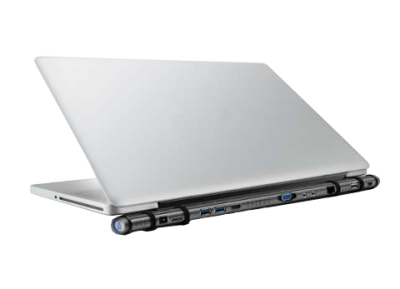

the back and rear view of the dockstation

Video

Details

Everything You Need for Your Digital Lifestyle

Everything you need for your Digital Lifestyle
Monitors this docking station can connect to
drag and drop files
Copy and paste in programs
port supports charging

Specifications

The item shows vertically

Power

  • Power Button: Blue LED button for Power on/off switch
  • Power Mode: Self-powered
  • Power Adapter: Input: 100 ~ 240VAC, 50 - 60 Hz Output: DC 5V/4A

System Requirements

  • Operating System: Mac OS X 10.6 Snow Leopard / 10.7 Lion compatible, Windows® XP / Windows 7® / Windows 8®
  • Computer Hardware: Available USB port (USB 3.0 is recommended), Intel 2 core Quad 2.33GHz and 2GB DDR2 RAM (minimum system requirements), USB connection kit (iPad).

Host

  • Upstream Port: USB 3.0 port, Micro-B Female Connector
  • Upstream Cable: USB 3.0 Micro-B to A-type, 40 inches (1 meter)

Hub

  • Downstream Port: 1 × USB 2.0 port, 1 × USB 3.0 port, 1 × USB 3.0 port with Battery Charger 1.1 A-type Female Connector

Video

  • VGA Port*: DB 15-pin Female Connector
  • HDMI Port*: HDMI Female Connector with Audio
  • Modes Supported: Extended, Mirror, Primary Display
  • Display Rotation: 0°, 90°, 180°, 270°

*Note: HDMI and VGA can be used simultaneously, however the output will be the same on both displays - either Mirrored or Extended.

Resolutions and Color Depth

Aspect Ratio Resolution Color Depth
Wide Screen Display
16:9 2048 x 1152 16-, 32-bit
16:10 1920 x 1200 16-,32-bit
16:9 1920 x 1080 16-,32-bit
16:10 1680 x 1050 16-,32-bit
16:9 1600 x 900 16-,32-bit
16:10 1440 x 900 16-,32-bit
16:9 1366 x 768 16-,32-bit
16:9 1360 x 768 16-,32-bit
16:10 1280 x 800 16-,32-bit
15:9 1280 x 768 16-,32-bit
16:9 1280 x 720 16-,32-bit
Standard Display
4:3 1600 x 1200 16-, 32-bit
4:3 1400 x 1050 16-, 32-bit
5:4 1280 x 1024 16-, 32-bit
4:3 1280 x 960 16-, 32-bit
4:3 1152 x 864 16-, 32-bit
4:3 1024 x 768 16-, 32-bit
4:3 800 x 600 16, 32-bit

Ethernet

  • Ethernet Port: 10/100 Base-T Ethernet RJ-45 connector

Audio

  • Microphone: 3.5mm stereo audio in
  • Speaker: 3.5mm stereo audio out

Wormhole Switch

  • Wormhole port: USB 2.0 Mini-B Female connector
  • Cable: USB 2.0, Mini-B to A-type, 7.5 feet (2 meter)
  • Transfer Rate: Up to 480MBps

Physical Specifications

  • Housing Material: Aluminum
  • Dimensions (W x H x D): Main body: 15.3 x 1.2 x 0.9 inches (386.4 × 28.5 × 22mm)
  • Weight: 4.87oz (138g)

Environment

  • Operating Temperature: -50 - 131°F (-10 - 55°C)
  • Storage Temperature: -77 - 167°F (-25 - 75 °C)
  • Relative Humidity: < 95% Non-condensing
  • Regulatory Compliance: FCC, CE, C-Tick, VCCI
  • RoHS: RoHS compliant

Learn more about the j5create JUD500

Model

Brand
j5create
Model
JUD500

General Spec

Compatibility
Compatible with Mac to Mac / Windows to Windows / Mac to Windows / Mac to iPad (keyboard only for iPad)
Ports Spec
1 x VGA Port
1 x HDMI Port
1 x 10/100 Base-T Ethernet RJ-45 connector
1 x USB 2.0 port
1 x USB 3.0 port
1 x USB 3.0 port with Battery Charger 1.1 A-type Female Connector
1 x 3.5 mm Microphone Port
1 x 3.5 mm Speaker Port

Physical spec

Dimension
15.21" x 1.12" x 0.87"
Weight
0.3 lbs.

Features

Features
Specification
Power
- Power Button: Blue LED button for Power on/off switch
- Power Mode: Self-powered
- Power Adapter: Input: AC 100-240V, 50~60 Hz Output: DC 5V/4A

Physical Specifications:
- Housing Material: Aluminum

Video
- Modes Supported: Extended, Mirror, Primary Display
- Display Rotation: 0, 90, 180, 270 degree


Feature:

USB 3.0 plug-and-play compatible

Add an external display through VGA or HDMI with a 2048 X 1152 resolution

Wormhole technology allows keyboard and mouse sharing between two devices

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the j5create JUD500

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 2/20/2014 12:04:09 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

1 out of 5 eggsWorst Customer Service Ever!!

Pros: None

Cons: This device ran hot from the beginning, and after it finally died, then the real fun began.

Their customer service is hands down the worst I've ever experienced. They lied to me over and over about when they were shipping a replacement. It's been over a month and I still don't have a replacement for the dead one yet.

When I brought this to their managemen's attention they said it was OK because they had a snow storm. I personally don't think weather is a valid excuse for lying to customers, but what do I know, right?

Bottom line is, you'll have a better experience if you just take your hard earned money and flush it down the toilet, rather than buying a product from these incompetent liars!

Other Thoughts: Don't buy anything from J5 Create!!!

1 out of 1 people found this review helpful. Did you? Yes No

  • Anonymous
  • 5/11/2013 5:33:21 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsNot quite there..

Pros: - Elegant design
- Good build quality.

Cons: - Proprietary graphic driver (not displaylink certified)
- Buggy software

Other Thoughts: I was willing to overlook the audio issue (audio via USB 3.0 under mountain lion) but the device was just too unstable for use on my system.

2 out of 3 people found this review helpful. Did you? Yes No

  • Johnny T.
  • 4/7/2013 6:41:58 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day

5 out of 5 eggsFun and looks good!

Pros: Device was simple to install and works good. Displays things well, lit characters on a dim background. Glad to have gotten it.

Cons: 4-pin USB connector instead of the usual 9-pin. That's silly, would've saved complications and a need to jot down special instructions for it.

Other Thoughts: Didn't try the program on their website, used LCD Smartie instead per suggestions of others, love it. I didn't buy the LCD for the program anyways so I don't feel that software aught to reflect on a hardware device's review.

1 out of 3 people found this review helpful. Did you? Yes No

  • Ricky A.
  • 3/5/2013 8:37:28 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year

5 out of 5 eggsAwesome!

Pros: Universal ... works with all my computers and laptops, even my wife's macbook!

Super handy ... adds all the ports that laptops don't have.

Great build quality.

USB 3.0 speed

HDMI and VGA output for extra displays

Cons: The HDMI and VGA can only output one image, so you can't extend two monitors with it, but if you can mirror two

Other Thoughts: Great device that has come in handy for me many times. I keep one in my house so when i work at home i just plug in a single connection and BAM, I am up and running with my full keyboard mouse monitors etc. Awesome device. Highly recommend

1 out of 2 people found this review helpful. Did you? Yes No

  • Richard H.
  • 2/23/2013 1:56:31 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsBossy little thing!

Pros: Provides the ports and services that it says it will

Cons: Takes over your laptop without any warning - changed resolution on my laptop's built-in screen to 1024x768, turned off the sound on my laptop and forced me to connect speakers to it to hear anything.

Other Thoughts: Probably fine if you're going to use it as a docking station (turn a laptop into a desktop) but not suitable for use as a portable/"road warrior" accessory.

4 out of 6 people found this review helpful. Did you? Yes No
