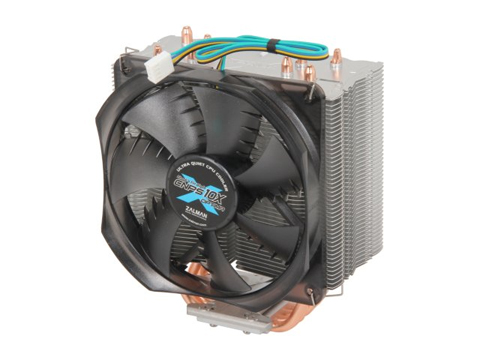

ZALMAN CNPS10X OPTIMA 120mm FSB (Fluid Shield Bearing) Shark's Fin Blade CPU Cooler

  • Fan RPM 1,000 - 1,700 rpm +/- 10%
  • Noise Level 17 - 28 dBA +/- 10%
  • Aluminum Fins, Copper Heatpipes and Base
  • Pin It
  • Email this page
ICON Loading...

CNPS10X Optima Features

Powerful Cooling Performance

Optimally designed aluminum fins disperse heat away from the CPU via four heatpipes with 6,553cm2 of Heat Displacement Area, while a switching-noise-free, high capacity 120mm fan quickly cools the heatsink for incredibly stable operation of high performance CPUs.

4 heatpipes

Shark`s Fin Blade / Dual Fan Support

Shark`s Fin Blade

Optimized for maximum airflow, Shark's Fin Blade Fan greatly reduces the turbulence caused by fan rotation, thus decreasing the noise and vibration while increasing the airflow. The heatsink is designed to mount one or two fans according to your preferences.

Differentiated Design

Direct Touch Heatpipe (DTH) Base technology transfers the CPU's heat directly to the heatpipes, thereby minimizing heat resistance and maximizing cooling performance.

Differentiated Design

Compatible with Mid Tower Cases (180mm Width)

Compatible with Mid Tower Case

For optimum case compatibility, the heatsink's height is set to 152mm which ensures compatibility with a case width of 180mm or greater.

Versatile Compatibility

CNPS10X Optima accommodates a broad range of sockets, including: Intel LGA1155 / 1156 / 1366 / 775, and AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2.

Versatile Compatibility

High Performance Super Thermal Grease ZM-STG2M

High Performance Super Thermal Grease ZM-STG2M

The high performance super thermal grease ZM-STG2M maximizes heat transfer from the CPU to the base of the CNPS10X Optima for intensified cooling performance.

CNPS10X Optima Components

Common Components

Common Components
CNPS10X Optima, Shark's Fin Blade Fan, Backplate, Side Caps, Bolts, Nuts, Fan Fixing Clips, Loading Block, Thermal Grease (ZM-STG2M), Double-Sided Tape, User's Manual

Intel Clip

Components for Intel
Intel Clip
Support Core i7 Extreme, Core i7, Core i5, Core i3, Core 2 Quad, Core 2 Duo, Core 2 Extreme, Pentium Dual Core, Pentium D, Pentium 4, Celeron D

AMD Clip A

Components for AMD
AMD Clip A
Support LIano, Trinity, Vishera, Zambezi, Phenom II, Athlon II, Phenom, Athlon FX, Athlon X2, Athlon, Sempron, Dual-Core Opteron, Opteron, Sempron




Learn more about the Zalman Tech Co., Ltd CNPS10X OPTIMA

Model

Brand
ZALMAN
Model
CNPS10X OPTIMA

Spec

Type
Fan & Heatsinks
Fan Size
120mm
Compatibility
Intel LGA 1155 / 1156 / 1366 / 775

AMD FM1 / AM3+ / AM3 / AM2+ / AM2
Bearing Type
FSB (Fluid Shield Bearing)
RPM
1000 ~ 1700 rpm +/- 10%
Noise Level
17 ~ 28 dBA +/- 10%
Heatsink Material
132(L) x 85(W) x 152(H)mm

Physical Spec

Weight
630g

Features

Features
4 Heatpipes

Rated Voltage: 12V

PWM Duty Cycle: 30 ~ 100 +/- 5%

Package Contents

Package Contents
CNPS10X Optima
Shark's Fin Blade Fan
Backplate
Side Caps
Bolts
Nuts
Fan Fixing Clips
Loading Block
Thermal Grease(ZM-STG2M)
Double-Sided Tape
User's Manual
Intel Clip
AMD Clip A

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Zalman Tech Co., Ltd CNPS10X OPTIMA

Do you own this product? Write a Review

Filter Results

Go
  • mkw87
  • 5/5/2013 4:31:27 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsVery Large, Excellent Cooler Though

Pros: Quick shipping from Newegg as usual. The cooler itself is performing great. It is definitely large, but it fits fine in my relatively small case. It comes with one fan and extra clips to attach a second one if you want to configure push and pull.

Installation was not hard, but you will need access to the back of your motherboard. Luckily both sides of my case are removable and there is a cutout window directly behind the CPU, so installation was pretty easy for me (took about 30 minutes but I did some cleaning with the cover off).

Cons: If you have the fan set to push heat towards the rear of your case, the fan might block your first DIMM slot.

Other Thoughts: Current setup:

ASUS M4A88TD-V EVO Motherboard
AMD Phenom II x6 1055T
G.Skill Ripjaws

Temperatures are running 31ºC at idle. Haven't put it under load yet but that's cooler than it was idling before.

9 out of 10 people found this review helpful. Did you? Yes No

  • N/A
  • 3/7/2013 8:08:33 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

3 out of 5 eggsdoes the minimum

Pros: Works.

Cons: Flimsy and cheap. Bought this for an A10 budget build and it was horrible. Wouldn't let me click my RAM over 1600 or it'd give me 10 blue screens of death ever 5 minutes. Turned my RAM down to 1600 and all worked fine.

Other Thoughts: If you want to use the inboard graphics of an A10 for gaming, dot at this board. Hell, I just wouldn't get it unless you are using it for a cheap HTPC or server. Wait a week and buy an x85.

0 out of 51 people found this review helpful. Did you? Yes No

  • N/A
  • 3/7/2013 7:44:06 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month

5 out of 5 eggsGreat power supply

Pros: Modular, cheap, great quality, solid.

Cons: Seriously have experience none.

Other Thoughts: First PSU I bought blew up. Went with this Antec and couldn't be happier. No hassle whatsoever.

1 out of 45 people found this review helpful. Did you? Yes No

  • N/A
  • 3/7/2013 7:41:49 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week

5 out of 5 eggsfreaking wrecks so far

Pros: This 7850 freaking shreds through everything I throw at it, including crisis on high at 1920 - 1080. Won't play very high, but trust me it still looks AMAZING. Pretty easy to install, stays cool, and looks good.

Great card at a cheap price.

Cons: Only thing that I can think of that I would change is the plastic cover. Very flimsy. But how much does that really matter?

1 out of 48 people found this review helpful. Did you? Yes No

  • Paul
  • 2/19/2013 6:54:42 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsWhisper Quiet

Pros: Large fan. Whisper quiet. Sturdy mounting system.

Paired with an AMD A10-5800K. Temps are low, idle in the 20s. Load in the 30s. Bios does a good job of controlling the fan.

Did I mention it's quiet?

Cons: The head of one of the mounting screws was stripped. Used a small pair of needle nose pliers to gently twist it out.

Once the fan is attached it's near impossible to get it off without bending up the heat sync. They do give you two sets of retainers for the fan though, probably because they know you'll destroy one set removing the fan.

Other Thoughts: This feels very much like a "one time use" product which may not be a bad thing depending on your application. In my case I installed the unit in a brand new system I built which most likely will not be torn down during it's life so it's probably fine for me.

6 out of 6 people found this review helpful. Did you? Yes No

  • doggy systems admin
  • 12/12/2012 10:57:37 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsthe back plate works for Gigabyte 1155 mobo

Pros: Built a Win Svr 2012 test/training PC with Gigabyte Z77M-D3H-MVP micro ATX motherboard with i7-3770 (not the K), 32 GB memory. This cpu cooler's back plate works. It stands off away from the soldered wires ends on the bottom of this motherboard. The prior heat sink I purchased (Thermaltake Thermaltake CLP0598 92mm Contact 16 CPU Cooler ) its back plate design got in the way of this Gigabyte motherboard's bottom soldered wire ends.

Cons: There were no cons.

This Zalman works but I had to smear the thermal paste between the cracks of heat pipes and cooler base so as to make sure there were adequate thermal conductivity. This is not a big deal. Then I slide the heat sink around to evenly distribute the thinly applied thermal paste to even it out. Again not a con, just standard stuff any experienced PC builder would do.

7 out of 7 people found this review helpful. Did you? Yes No

  • Dreckspatz
  • 10/1/2012 8:33:52 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsDirections could be better

Pros: Installed on a 3570k with 2 fans. The temps are pretty good and about what I expected for this price point. At stock speeds the CPU is getting to around 70 C during gaming. This was during the summer so the ambient temps were higher. I know Ivy Bridge runs hot, but I'm a little concerned about overclocking with this cooler. I'll start some oc'ing and if I don't like the temps then I'll have to look at other cooling solutions.

Cons: The directions are lacking. Zalman needs to hire a native English speaker to actually write detailed directions. Their pictures are not good enough. I will say that EVGA is also guilty of this with their cooler.

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 9/29/2012 5:59:52 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsWorks well

Pros: Great cooling capacity. With the stock cooler on my AMD FX-4170 at 4.2 ghz it was running 39c at idle. That changed to 27c after installation. Includes shoulder bolts to prent overtightening the clamping force.

Cons: It's a pain to install. The fan clips are hard to get on when it's in the case and you can't get to the the screws to bolt it on if you put the fan on first. The fan started to rattle day 5. It blocks using my first memory slot unless I blow the heat away from the rear exhaust. You can't use the included fan for a pull because the stupid clips won't have anything to attach too.

2 out of 2 people found this review helpful. Did you? Yes No

  • N/A
  • 8/14/2012 4:59:31 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsReally Great Cooler

Pros: This cooler is amazing its not to tall and fits in a mid tower very well. It is cooling a phenom 955 O.C. to 3.7 GHz and cools it very with well arctic MX 4 I have it with a push pull config and this thing is beast for the price this is my 4 zalman cooler and there impress me more everytime

Cons: None

Other Thoughts: Buy it if your thinking you won't be disappointed. Thanks new egg for amazing shipping

1 out of 1 people found this review helpful. Did you? Yes No

  • balance
  • 6/22/2012 6:45:30 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day

5 out of 5 eggsgreat cooler!

Pros: direct heat pipe contact, huge heatsink! dual fan capable, not too loud, great stuff

Cons: will most likely have to remove motherboard for installation, unless u've already have a backplate, it might just screw in..:-)

Other Thoughts: great buy

1 out of 1 people found this review helpful. Did you? Yes No
