Item#: N82E16835146012

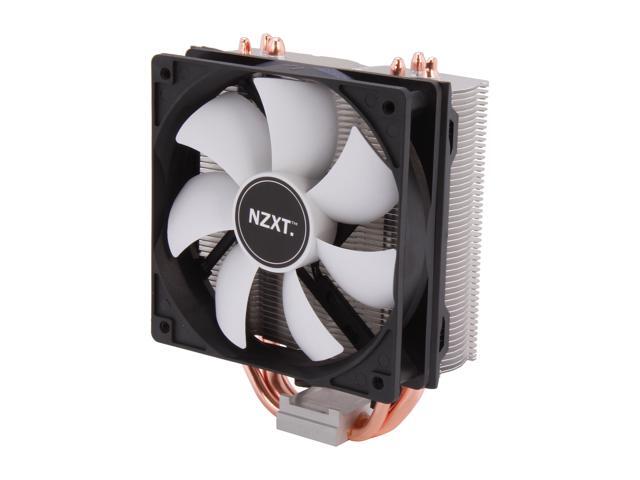

NZXT RC-HV120-01 120mm HAVIK 120 Dual Fan CPU Cooler

  • 1200 +/- 10% RPM (low); 1500 +/- 10% RPM (high)
  • 61.5-75.8 CFM
  • Aluminum & Copper
ICON Loading...

To achieve superior CPU cooling, you can count on NZXT’s award-winning HAVIK series to rid of all your heating issues. In comparison to the HAVIK 140, the HAVIK 120 is compact offering more versatility. This 120mm CPU cooler is perfect for overclockers seeking a small yet powerful fan cooler. The base is composed of nickel-plated copper material that utilizes four 8mm pipes for transferring heat to aluminum fins. This allows more air to reach the heatsink which keeps temperatures low while increasing longevity of your components. HAVIK 120 is a victory for any enthusiast looking for an inexpensive and high performing silent CPU cooler.

  • newegg Superior cooling performance The nickel-plated copper base, four 8mm pipes and aluminum fins ensure superb heat conduction and attain maximum dissipation into fans. With aero-dynamic fin design and up to 1500 +/- 10% RPM speed, the HAVIK 120 delivers superior airflow up to 75.8 CFM for efficient heat dissipation.
  • newegg Whisper quiet The HAVIK 120 features revamped 120mm FZ fans with 13 blades for intense silent cooling at low noise level of 22 dBA. Moreover, the rubber mounting ensures noise absorption.
  • newegg Broad compatibility The HAVIK 120 comes with universal bracket which is compatible with both Intel and AMD CPUs.

Learn more about the NZXT RC-HV120-01

Model

Brand
NZXT
Model
RC-HV120-01

Spec

Type
Fan & Heatsinks
Fan Size
120mm
Compatibility
Intel Socket: 2011 / 1366 / 1155 / 1156 / 775

AMD Socket: AM3 / AM2+ / AM2
RPM
1200 +/- 10% RPM (low); 1500 +/- 10% RPM (high)
Air Flow
61.5-75.8 CFM
Noise Level
18-22 dBA
Power Connector
3 Pin
Color
White
Heatsink Material
Aluminum & Copper

Physical Spec

Fan Dimensions
Dual 120mm
Heatsink Dimensions
125(W) x 160(H) x 58(D) mm (heatsink)
Weight
980g (with dual 120mm fans)
680g (excluding fans and mounting kit)

Features

Features
Long Life (Oil-Leaking Prevention)

Y-SPLIT Cable: White connector for low speed; black connector for high speed

Revamped 120mm FZ Fans with 13 blades for intense silent cooling

Nickel-plated copper base material

Four 8mm pipes and aluminum fins for attaining maximum dissipation into fans

Aero-dynamic fin design for improved airflow

Rubber mounting for noise absorption.

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the NZXT RC-HV120-01

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • James P.
  • 10/18/2012 5:48:22 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsUp to Par

Pros: Keeps temps down and it's not overly loud. Does its job

Cons: Somewhat complicated to put together, but not anything terrible.

Other Thoughts: I have Corsair LP memory and it barely clears the top. If I had the regular sticks with the heat fins there would have been issues. Not a problem for me just something to think about.

Manufacturer Response:

We want to thank you for being a customer of NZXT and we appreciate you taking the time to send your feedback and will continue to strive to make our products better.

Did you find this review helpful? Yes No

  • Griffin K.
  • 7/25/2012 2:01:35 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGreat Buy

Pros: Works Well. Did drop my temp around 10-15C @ Idle, 15-25C @ w/stress. This is from Stock heat sink to NZXT RC-hv.
Easy installation.

Cons: Price - Cooler master hyper evo is cheaper and yet performance gap isnt that big.
Brackets and Bolts - This is pretty heavy as a Heat sink. causing it to hang but even than it still makes around 90%-95% contact with the CPU.

Did you find this review helpful? Yes No

  • brandon M.
  • 6/14/2012 5:33:12 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsA little loud

Pros: Easy instillation. Runs i7 3770k idle at around 2 to 3 degrees above room temp at stock speeds load my i7 gets to 62 to 65 on adia64 stress test at stock speeds. looks awesome

Cons: loudest part of my system But not to loud where i cant bear it about as loud as a xbox 360 at load. fans run on 12v at all times no pwm 4 pin fan connector but i knew this before i brought it. The fans don't sit flush on the heatsink from the rubber mounts.

1 out of 2 people found this review helpful. Did you? Yes No

  • Andrew V.
  • 3/12/2012 7:16:34 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAwesome!

Pros: Where to start? It cools great, the parts are pretty high quality, didn't feel like they'd break any time soon. It sits nice and tight. Didn't have any problems with wiggling or looseness. All-in-all, it's top shelf product. Good job NZXT! They make awesome cases, one of which I'm thinking of picking up in the future, but this cooler is just another great line-up of products.

Cons: None that I can think of.

Other Thoughts: I have it installed in an Intel computer with an i5 2500K @ 4.4GHz. It cools like a champ. Never saw the temps go above 64C. I use OCCT. I would recommend this product to anyone with room in their case! With that said, the case it's in right now (the Intel one) has a side panel fan that won't go on with this installed. It's a BEAST! So make sure you have room! Measure, take notes, whatever it takes, before you buy this cooler. It's not a huge deal since I'm taking it out and putting into my other case, my main computer. The Intel one I'm selling, so obviously it's not staying in there. Anyway, it's an awesome cooler, and I am really enjoying it. So much easier to install and deal with than the Corsair Hydro series. I understand that they are great coolers, they really are, but this latest batch has some real issues. I've gone through two of them before I returned it for my money back. This is a nice relief.

5 out of 5 people found this review helpful. Did you? Yes No

  • Bryan P.
  • 2/27/2012 8:19:14 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

2 out of 5 eggsDevil in the details

Pros: Rubber mounting made fan installation easy. The LGA 2011 mounting was also easy, and didn't (for me) require access to both sides of the MB.

Cons: I haven't even turned this fan set on, but already I have a few things I wish I had looked more closely at:
This cooler only has 3-pin connectors for the fans - speed control is not necessarily going to be possible through your motherboard. Most MBs use 4-pin connectors so they can control fans through the PWM signal.
This cooler is SUPPOSED to be smaller than some, but it is still PLENTY big. I have an MSI board with RAM on both sides of the CPU socket, and while I literally saw pictures of other boards where it fit nicely between the DIMMs, on mine (MSI X79 Big Bang XPower II) I have had to remove the top heatsinks from the closest Corsair Dominator DIMMs on both sides to install the two fans for this cooler. It would have to be more narrow or the fans higher to allow these DIMMs to work with the top heat sink attached. (IF all slots are filled.)

Other Thoughts: I will re-visit this review if I change how I feel about it (we will see after I hear it run (I choose quiet over speed every time.

0 out of 8 people found this review helpful. Did you? Yes No
