Item#: N82E16835200015

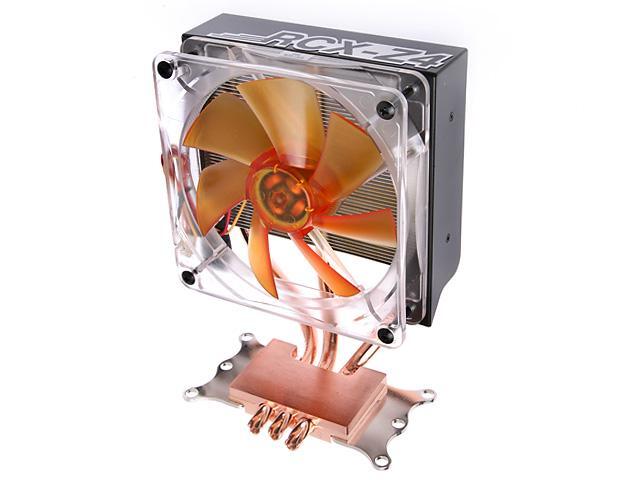

Rosewill RCX-Z4 120mm 2 Ball CPU Cooler

  • 1000 - 2000 RPM
  • 32.2 - 67.5 CFM
  • Hi-grade aluminum fins, 3 embedded "8mm" copper heat pipes and copper base
ICON Loading...

Keep your cool with the Rosewill RCX-Z4 CPU cooling system. This high efficiency system uses a 122x160x114.5mm heat sink with a 120mm fan attached to disperse heat transferred by three 8mm heat pipes from the solid copper contact block. The kit comes with mounting hardware for Intel LGA-775 and AMD-Socket 754, 939, AM2 CPUs.

The manually controlled fan spins at 1000 rpm lifespan. The fan speed controller attaches unobtrusively to the case in an unused expansion card slot. The large size also helps to keep the noise down to a quiet 15-29.8dBA, depending on speed.

  • newegg Excellent Cooling Performance Three high performance heatpipes maximize heat transfer to push cooling performance to the next level.
  • newegg Pure Copper Base A pure copper base maximizes heat absorption and transfer for excellent cooling.
  • newegg Ultra-quiet Amber Fan The Rosewill RCX-Z4 is equipped with a 120mm ultra-quiet amber fan with a manual fan speed control for exceptional cooling and quietness.
  • newegg Universal Socket Compatibility As an all-in-one solution for PC systems, the Rosewill RCX-Z4 features broad compatibility with all AMD socket 754, 939, AM2 and Intel LGA775 platforms.

Learn more about the Rosewill RCX-Z4

Model

Brand
Rosewill
Model
RCX-Z4

Spec

Type
CPU Cooler
Fan Size
120mm
Compatibility
Intel Core 2 Extreme (Socket LGA 775)
Intel Core 2 Quad (Socket LGA 775)
Intel Core 2 Duo (Socket LGA 775)
Intel Pentium Extreme (Socket LGA 775)
Intel Pentium D (Socket LGA 775)
Intel Pentium 4 (Socket LGA 775)
Intel Celeron D (Socket LGA 775)
AMD Athlon 64 FX (Socket 939, 940, AM2)
AMD Athlon 64 X2 (Socket 939, AM2)
AMD Athlon 64 (Socket 754, 939, AM2)
AMD Sempron (Socket 754, 939, AM2)
Bearing Type
2 Ball
RPM
1000 - 2000 RPM
Air Flow
32.2 - 67.5 CFM
Noise Level
15 - 29.8 dBA
Power Connector
3 / 4 Pin
Color
Transparent
Heatsink Material
Hi-grade aluminum fins, 3 embedded "8mm" copper heat pipes and copper base

Physical Spec

Fan Dimensions
120 x 120 x 25mm
Heatsink Dimensions
122 x 160 x 114.5mm

Features

Features
3 embedded '8mm" copper heat pipes for excellent heat dissipation
120mm ultra-quiet amber fan
Manual fan speed control
Copper base

Manufacturer Warranty

Parts
1 year limited
Labor
1 year limited

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Rosewill RCX-Z4

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • David K.
  • 2/25/2010 5:47:14 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsIt's big.

Pros: This thing is huge. I love it. Seems to do it's job pretty well. Make sure it will fit in your case. Mine is in full tower ATX.

Cons: Not a single piece of solid copper.

Other Thoughts: A pretty good cooler for the money. Got for $5 with combo deal. Excellent choice. Much better than stock. Might want to check into your own thermal.
My system:
Phenom II 550 X2 3.1ghz unlocked to X4.
4gb ddr3 1600mhz g.skill ripjaws ram.
Radeon 4830 open-box.
Asus m4a77TD open-box.
Orion XPOWER585 585w psu.

Did you find this review helpful? Yes No

  • Stan L.
  • 2/23/2010 5:12:02 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsRosewill RCX-Z4 120mm 2 Ball CPU Cooler - Retail

Pros: The cooler was offered in a bundle deal with the CPU that was too good to pass up. The large size of the fan surprised me when I opened the box but it's the quietest running CPU cooler I've owned besides being the tallest, heaviest and largest diameter cooler ever for me. Having said that, the AMD 550 idles at 28C and seldom has risen to 33C so far in normal usage. This is not overclocked - yet. A great value for the money.

Cons: Be sure to mount this so the RAM slots on the motherboard are not blocked, otherwise you might be removing it again to add/remove memory.

Other Thoughts: My first Rosewill product but I would definitely try their products again.

Did you find this review helpful? Yes No

  • luke g.
  • 2/13/2010 7:41:31 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsnot bad

Pros: works good keeps my 3.1 overclocked to 3.49 calisto black edition around 50 under load!

Cons: VERY LOUD

Other Thoughts: 3.49 calito phenom 2x4
4 gigs ddr3 1535 overclocked
500 gig wd hdd
pny 9800gtx+ overclocked to 800
dual multi drive dvd burners
rosewill green 530 watt cont. psu

Did you find this review helpful? Yes No

  • Michael H.
  • 2/11/2010 11:02:14 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggs!!Follow Up!!

Pros: Ok, so I ran this with the 550 overclocked at 3.6 and it would idle around 29 and 37 while gaming in my HAF 922 to be fair.

I swapped CPU's with my wife. She now has the 550 at 3.6 with a Zalman 9700 @ 2,000rpm. Now it idles at 36 and touches 41 while gaming in her Antec P180 with both exhaust fans on high to be fair again.

Cons: The wiring for the fan controller sucks. My temps don't change whether on low or high so I'll probably end up taking it out.

The stock fan is loud.

Other Thoughts: I did end up putting a Cooler Master R4 Green on there because they push a lot of air and are quiet at 1800rpm and below.

Note that the temps did not change with the R4 fan, it's just quieter and looks cool.

Mine is nowhere near my RAM, maybe someone installed it backward?

Not sure about the 2 egg review below. Stated not for overclocking?? Obviously with my experience above it works just fine if not better than the Zalman (debatable with the case difference).

Did you find this review helpful? Yes No

  • William w.
  • 2/9/2010 3:41:16 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggscould be a lot better...

Pros: It cools ok...

Cons: It has a 120mm fan but the heat spreaders only cover 120mm x 90mm, so 30mm of the fan blow on nothing.

it installs funny, but goes on.

All CPU coolers should come with dust screens.

Other Thoughts: I'll be replacing mine now that I know what I'm doing I know what to look for in a cooler and this one is entry level and not for any type of over clocking.

Did you find this review helpful? Yes No

  • Anonymous
  • 2/7/2010 7:47:40 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsExcellent

Pros: Keeps my Phenom II X 2 550 at 30c idle
offset so you can mount it two diff ways depending on layout of your motherboard
price

Cons: None

Other Thoughts: I consider this the best cpu cooler I have had and I would never have guessed that since it was almost free lol. Temps are lower than my previous Zalman 9500.

1 out of 1 people found this review helpful. Did you? Yes No

  • Rey J.
  • 2/5/2010 7:46:03 AM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsFAN....TASTIC

Pros: Keeps pc really cool easy install fit right in..comes with external fan controller, bought this for 5 bucks with combo and MIR

Cons: HUDGE!

Other Thoughts: fit in my antec 300 atx case perfectly cant go wrong with a combo buy on this one..but for 40$??? still not a bad buy

Did you find this review helpful? Yes No

  • Anonymous
  • 2/3/2010 6:26:36 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsAMD cooler

Pros: This is a good cooler for any platform. Works great on my Amd Phenom II x2 which I unlocked and is now an x4 running at 3.7 stable and cool. This keeps my processors temps a lot lower than the stock fans.

Cons: some people say big but it fit just fine in my regular ATX case

Did you find this review helpful? Yes No

  • aaron c.
  • 2/3/2010 1:06:13 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggskeeps its cool

Pros: works good so far and is pretty silent

Cons: bulky overcomplicated wiring kinda flemsy heatsink easy to bend/break

Other Thoughts: amd phenom ii x2_ cpu
g. skill 4gb ddr3_ ram
wd green 500 gb _hdd
gigabyte ga-ma790gpt-udsh_ mb
ocz modxstream-pro _psu

Did you find this review helpful? Yes No

  • Paul E.
  • 2/2/2010 2:58:55 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsgood cpu cooler

Pros: Large fan to move lots of heat away from the CPU. The manual fan controller is nice but probably not necessary.

Cons: Large. I had to remove my fan on the side of my case to make this fit with the case closed.

Other Thoughts: You should feel compfortable installing the fan mounting bracket on the MB before buying this cpu cooler.

Did you find this review helpful? Yes No
