Item#: N82E16835214056

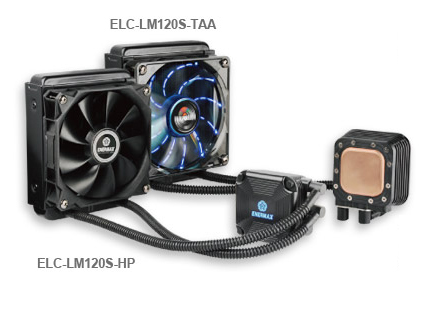

Enermax Liqmax 120S Aluminum All-in-One Liquid Cooler With 120mm High Static Pressure Fan

  • 600 - 1300/2000/2500 rpm
  • 28.6 ~ 60.3/88.9/111.0 CFM
  • 48.5 ~ 102.4/150.9/188.7 m3/h
  • Fan Noise 15 ~ 21.5/27/30 dBA

  • Pin It
  • Email this page
ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews





LIQMAX 120S Overview

LIQMAX 120SLIQMAX 120S


LIQMAX 120S Features

  • 3D Cold-plate design for better stability and rapid heat conductivity
  • Stylish water block with luminous LED LOGO for power-on indication
  • Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge
  • Precise micro-channel cold plate enlarges the cooling surface
  • All-in-one liquid cooling system with maintenance-free pre-filled coolant
  • High-pressure airflow fan with smart APS (Adjustable peak speed) control providing 3 peakRPM options (ELC-LM120S-HP)
  • Ceramic bearing pump for longer life span and noiseless operation
  • FEP tube ensures zero permeability and long-lasting reliability
  • Easy-install smart bracket gives perfect contact force with CPU
  • Additional screws included for a 2nd fan installation option


LIQMAX 120S Application View

LIQMAX 120S

LIQMAX 120S Reliable FEP Tube

LIQMAX 120S

LIQMAX 120S Luminous LED Logo for Power-On Indication

LIQMAX 120S

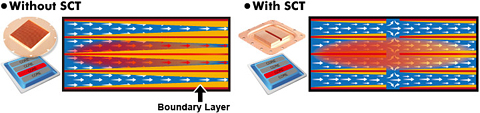

LIQMAX 120S Patented Shunt-Channel-Technology (SCT)

LIQMAX 120S

1. With SCT design , the cold plate can eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance.

2. When any CPU core is in over clock mode and generates hot spot, SCT design creates the redistribution and remix of coolant flow among individual channels to effectively remove heat surge on the CPU in a extremely timely and efficient manner.

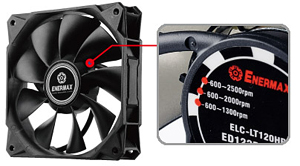

LIQMAX 120S Patented APS PWM Control

LIQMAX 120S

Three-Cooling Modes:

*Silent mode: 600 - 1300RPM
*Performance mode: 600 - 2000RPM
*OverClock mode: 600 - 2500RPM


Users can choose the most suitable mode depending on the system application without pushing fan speeds up to the limit. Just gently slide the small switch at the fan hub, and an easy adjustment can be made to suit different cooling performance requirements.



LIQMAX 120S Specifications

Model ELC-LM120S-HP
Cold Plate Material Copper
Pump Bearing Ceramic Bearing
MTBF 50,000 hours
Motor Speed 2300RPM
Rated Voltage 12V
Rated Current 0.3A
Radiator Dimensions 6.1 x 4.7 x 1.3 inches (156 x 120 x 32mm)
Material Aluminum
Tube Material FEP
Length 12.2 inches (310mm)
Weight (w/o fan) 1.1lbs (505g)
Bracket Compatibility Intel® LGA 775 / 1150 / 1155 / 1156 / 1366 / 2011,
AMD® AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+
Fan Dimensions 120 x 120 x 25mm
Bearing Twister Bearing
MTBF ≥160,000 hours
Speed 600 - 1300 / 2000 / 2500RPM
Rated Voltage 12V
Rated Current 0.13A / 0.27A / 0.45A
Air Flow 28.6 ~ 60.3 / 88.9 / 111.0 CFM
48.5 ~ 102.4 / 150.9 / 188.7m³ per hour
Static Pressure 0.8 ~ 1.7 / 4.7 / 7.4mm - H2O
Noise Level 15 ~ 21.5 / 27 / 30dBA
LED N/A
Connector 4-pin PWM
Warranty 2-years

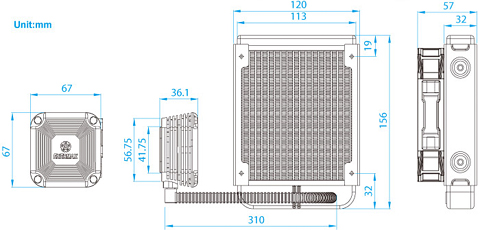

LIQMAX 120S Dimension Details

LIQMAX 120S


Learn more about the Enermax ELC-LM120S-HP

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details

Customer Reviews of the Enermax ELC-LM120S-HP

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Andy B.
  • 4/5/2015 8:07:05 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsFairly good, i like it

Pros: Only had it for one day but it seems like a nice cooler, it does what its supposed to. Its a fairly simple install. Should fit
most case's that take 120 . Not as loud as i thought it would be after reading some of the professional reviews.
Everything i needed was included. Fan was barely over 500rpm until i turned it up. I'm a in a P/Pull though to be fair.
On AMD FX9590, MSI990GDA, Rosewill Redbone case i didn't have to take the board out. This unit is going to end
up as a customer build at a customers house so no matter how loud it gets i wont hear it from my living room.

Cons: It took so much pressure to get that thing down all i could think during the process was "My boards gonna break,
My boards gonna break, My boards gonna break" Heatsink was in terrible shape but that's about normal for any new heatsink not just this unit.
I wouldn't use them short case to radiator screws, but maybe that's just me. One of my HS brackets didnt appear
to be cut or filed down completely. It was about 1/16" too long and didnt line up with the CPU bracket and pushed
the heatsink bracket on the other side out when i pushed it on. Took about 30 seconds with my dremmel to fix.
Not at all a deterrent for me. I did need to add a another case fan as i expected. With no big beige & brown air
cooler in there pushing air all over the place the rest of my heatsinks and components got warmer.

Newegg lost the 1 star not the product, i ordered 3 day & expedited order process on sunday night monday morning and it took untill friday night at 750pm for ups to show up with it. --It happens.

Other Thoughts: New heatsink or not, the same old rules apply. Heatsink definitely needs to be lapped first. Was actually pretty bad, i did a test install to check for that first.
But that is a normal chore for any new heatsink installations not just this unit.
So take 10 minutes and do it correctly, worst thing that can happen is it lowers your temps and don't warp pr damage your CPU or board.
For AMD, if your only going to use 1 fan. When you remove your old CPU bracket & plate off the back of the board- KEEP THE SCREWS CLOSE.
You should re-use them to attach the radiator to the back of the case, the screws supplied are way way to short.
I need more than 2/3 turns off a screw to know its tight. My case specs were wrong. SO,-IF you get forced into
a P/Pull install like i did, the stronger fan is the PUSH until you get the correct parts. The pump is only
3 wires on a 4 pin connector,so no speed adjustment on that. Over all i am pretty happy with it. I cant really
give you accurate temperature readings as my dungeon is always about 60f so everything runs cool regardless. I needed
to add an extra case fan to cool everything else off after removing the old CPU and air cooler.

I would recommend this and probably will buy another, if this one lasts.

Did you find this review helpful? Yes No

  • William M.
  • 3/9/2015 10:17:26 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsEnermax 120S All-in-one

Pros: The unit I received gave me no problems w/install.
Keeps my amd 6000+ nice n cool, possibly the best cooler I've ever used.

Cons: it will eventually fail

Other Thoughts: I have installed dozens of air coolers previous to this unit

Did you find this review helpful? Yes No

  • Josh V.
  • 1/28/2015 10:42:17 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year

3 out of 5 eggsWord of warning

Pros: Looks very appealing, blue led on pump is nice. Everything seems good quality, and the variable range switch on the fan is a nice touch.

Cons: The fan can get pretty loud, and the pump is very noisy and doesnt seem to be able to vary speed. I have tried both the cpu fan and the cpu opt fan header on the motherboard, dc and pwm control, and the 3 and 4 pin headers forr the cpu opt fan. None of these configurations allowed me to reduce the speed of the pump to quite it down at all.

Other Thoughts: I have two issues with this. Long story short i was having strange issues with my pc. At first i thought the pump was putting too much pressure on the cpu as the bolt / spring design they have puts alot of pressure on the cpu.

The second issue is that it shorted out my asus z-97 pro motherboard. Enermax sent me some washers to isolate the standoffs from the board and that seemed to solve the issue. So im not sure exactly what the problem was since maybe the added space from the washers relieved enough pressure off the cpu but this cooler was definitely causing a problem.

Did you find this review helpful? Yes No

  • Regina B.
  • 1/10/2015 10:15:50 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggs

Pros: Works well, gets the job done

Cons: Very noisy, rattles when running which is pretty annoying.

Other Thoughts: i'll go with another brand next time. wouldn't recommend...

Did you find this review helpful? Yes No

  • Matthew J.
  • 12/6/2014 1:47:26 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

4 out of 5 eggs775 2.83ghz Yorkfield Overclock

Pros: Bumped up FSB to deliver a rock solid stable 2.83 to 3.65 ghz OC (ITB and PRIME Tested)

Cons: See previous shorted board review

Did you find this review helpful? Yes No

  • Matthew J.
  • 12/6/2014 1:43:31 PM
  • Tech Level: Somewhat High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsShorted out 775 socket board

Pros: Runs stock chip settings at ambient
Silent

Cons: Shorted 775 socket board out (Bolts that mount the backplate aren't plastic covered which took forever to figure out why the machine wouldn't post) I just took some rubber and plastic washers and used them and it works.

Did you find this review helpful? Yes No

  • Kayvan B.
  • 12/2/2014 4:01:22 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week

4 out of 5 eggsFantastic cooler with a pathetically loud pump

Pros: - Cools really great, better than 120M by CM
-The whole product feels well built.
-Installation was one of easiest.
-Fan has built in speed setter.

Cons: -The pump is pathetically loud, I am actually shocked by how loud it is . Lowering RMP to min doesnt do that much to quite it down. On the other hand this means its great pump.

-Fan on there could be better, its decent...

Other Thoughts: - Overall I am impressed. I know this isnt supposed to be a budget cooler like 120V but i got it for 22 dollars after rebate. It performs significantly better than that.

The pump is strong that is why its loud, I just wished it would respond to lower RPM instead of being just about same from 25% to 70%.

Great little unit, if you can deal with the noise ( will be masked by fan anyway when things are heating up) I'd recommend it. Much better than antec's offerings much cheaper than corsair.

- I am using it to cool my g3258 OC to 4.6Ghz @ 1.35V no problem. will report back when I get 4970k in future.

Did you find this review helpful? Yes No

  • JEREMIAH K.
  • 10/14/2014 11:36:56 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsHappy so far

Pros: I bought this with the intention of buying a processor that I've seen many people say needs liquid cooling for gaming because the Stock Heatsink just sucks, and so far I am very happy with it, I am unsure though if the radiators tubes are supposed to be on the bottom of it or the top, everything I've seen shows them on the bottom, but it won't fit in my case the other way, this is not the manufacturers fault, this is the case manufacturers fault, anyway, I think I may know how to fix the problem, I just need to hope I have the right length of screws to make it work, but yes I love this product, it keeps my CPU much cooler than the stock one, I haven't even needed to turn my other case fans on high since I got it.

Cons: None as of now.

Did you find this review helpful? Yes No

  • Adam M.
  • 10/7/2014 9:03:04 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsWorked well for 5 months

Pros: Does its job. Kept cpu at 29-33C idle and never saw it go above 45C at load.

Cons: Hoses are slightly stiff and too short in my opinion. Kind of a pain to install.

Other Thoughts: I bought this back in May and the pump has started this horrible vibrating if it is over the 40% rpm mark tuning software. The higher the RPM the worse the vibration. I can feel it through my desk. I will be trying to RMA... I am sure the pump is failing.

Manufacturer Response:

Hello Adam

We apologize for any inconvenience this has caused for you. We stand behind the quality on all of our products. We are not sure why the pump has begun to become defective, but we would like to assist you as soon as possible. All of our products come with a one(1) year warranty, so please contact us when you can. Please see http://enermaxusa.com/rma.php for more details regarding this.

If you have any additional questions, please feel free to contact us directly.

Enermax Support Contact Information

Phone: 626-913-8899
Email: support@enermaxusa.com

Thank you,
Enermax Customer Service

Did you find this review helpful? Yes No

  • Mark W.
  • 9/8/2014 6:33:46 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsEnermax Liqmax 120S Aluminum All-in-One Liquid Cooler With 120mm High Static Pressure Fan

Pros: All in one TOTALLY complete package VERY high quality.

Cons: would be nice to have adhesive rubber strips to place between fan and radiator.

Other Thoughts: my temps went down 10 deg. F at idle. overclocked an i7 3770 NON K to steady 4.5 GHz. temps running in the LOW 90's F. when idle and not more than 140's F. low 60's C. cannot recommend enough!! Great Product.

1 out of 1 people found this review helpful. Did you? Yes No
