Item#: N82E16835214058

Enermax Liqtech 240 All-in-One Liquid Cooler 27MM Thick Radiator w/ Duo High Pressure Airflow Fans

  • 600 - 1300/2000/2500 rpm
  • 28.6 ~ 60.3/88.9/111.0 CFM
  • Fan Noise 15 ~ 21.5/27/30 dBA
  • Pin It
  • Email this page
ICON Loading...

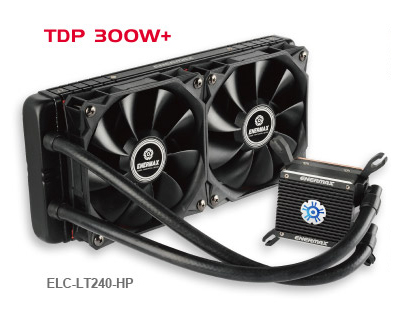

LIQTECH 240 Overview

LIQTECH 240LIQTECH 240


LIQTECH 240 Features

  • High quality aluminum water block prevents operating noise and improves cooling efficiency
  • Patented Shunt-Channel-Technology (SCT) boosts thermal conductivity and eliminates any heat surge
  • Precise micro-channel cold plate enlarges the cooling surface
  • Innovative radiator structure provides seamless contact area and increases heat dissipating speed
  • Double-length radiator enhances heat exchange capacity and cooling performance
  • High-pressure airflow fan with smart APS (Adjustable peak speed) control providing 3 peakRPM options
  • All-in-one liquid cooling system with maintenance free pre-filled coolant
  • Ceramic bearing pump for longer life span and noiseless operation
  • Flexible polyamide (PA) rubber tubes ensure zero permeability
  • Easy-install smart bracket gives perfect contact force with CPU


LIQTECH 240 High Quality Aluminum Water Block

LIQTECH 240

LIQTECH 240 Patented Shunt-Channel-Technology (SCT)

LIQTECH 240

1. With SCT design, the cold plate can eliminate the "Boundary Layer" to increase coolant flow momentum and accelerate heat transfer performance.

2. When any CPU core is in over clock mode and generates hot spot, SCT design creates the redistribution and remix of coolant flow among individual channels to effectively remove heat surge on the CPU in a extremely timely and efficient manner.

LIQTECH 240 Double-Thick Radiator with Seamless Contact Area

LIQTECH 240

Enermax innovative seamless radiator offers 140% better coverage than a conventional structure.
This makes the fins to carry away more heat from the pipes and cool the coolant efficiently than traditional structures.

LIQTECH 240 Flexible Polyamide (PA) Rubber Tube

LIQTECH 240

The flexible polyamide (PA) rubber tubes with non-permeable layer.
PA tubes are commonly applied in aerospace industry, provide maximum durability and effectively shield against leakage and corrosion.

LIQTECH 240 Patented APS PWM Control

LIQTECH 240

Three Cooling Modes:

*Silent mode: 600 - 1300RPM
*Performance mode: 600 - 2000RPM
*OverClock mode: 600 - 2500RPM


Users can choose the most suitable mode depending on the system application without pushing fan speed up to the limit. Just gently slide the small switch at the fan hub, and an easy adjustment can be made to suit different cooling performance requirements.



LIQTECH 240 Specifications

Model ELC-LT240-HP
Cold Plate Material Copper
Pump Bearing Ceramic Bearing
MTBF 50,000 hours
Motor Speed 2500RPM
Rated Voltage 12V
Rated Current 0.3A
Radiator Dimensions 10.7 x 4.7 x 1 inches (273 x 120 x 27mm)
Material Aluminum
Tube Material Polyamide (PA) rubber tube
Length 12 inches (310mm)
Weight (w/o fan) 2.4lbs (1095g)
Bracket Compatibility Intel® LGA 775 / 1150 / 1155 / 1156 / 1366 / 2011,
AMD® AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+
Fan Dimensions 120 x 120 x 25mm
Bearing Twister Bearing
MTBF ≥160,000 hours
Speed 600 - 1300 / 2000 / 2500RPM
Rated Voltage 12V
Rated Current 0.13A / 0.27A / 0.45A
Air Flow 28.6 ~ 60.3 / 88.9 / 111.0 CFM
48.5 ~ 102.4 / 150.9 / 188.7m³/h
Static Pressure 0.8 ~ 1.7 / 4.7 / 7.4mm - H2O
Noise Level 15 ~ 21.5 / 27 / 30dBA
Connector 4-pin PWM
Warranty 2 years


LIQTECH 240 Detailed Dimensions

LIQTECH 240


Learn more about the Enermax ELC-LT240-HP

General

Brand
Enermax
Model
ELC-LT240-HP
Type
Liquid Cooling System

Block

Block Compatibility
Intel LGA 775/1150/1155/1156/1366/2011,
AMD AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Block Material
Copper

Pump

Pump Bearing
Ceramic

Radiator

Radiator Dim.
273 x 120 x 27mm
Radiator Material
Aluminum

Fan

Fan Dim.
120 x 120 x 25 mm
Fan RPM
600 - 1300/2000/2500 rpm
Fan Air Flow
28.6 ~ 60.3/88.9/111.0 CFM
Fan Noise
15 ~ 21.5/27/30 dBA
Fan Connector
4 Pin

Tube

Tube Dim.
310mm Length
Tube Material
FEP

Quick Info

Warranty

  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years


Customer Reviews of the Enermax ELC-LT240-HP

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Roberto S.
  • 9/18/2014 8:59:40 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsSimply Amazing

Pros: Keeps the CPU very cool. Can be used in a push-pull configuration. Included fans have adjust settings for low-med-hi presets. Radiator looks amazing and build quality feels like other Enermax products. Mounting brackets for pump are anodized Aluminum and much stronger than other liquid cooling units ive used.

Cons: NOT FREE, Rubber tubing could be a bit more pliable its a little stiff.

Other Thoughts: The pumps logo sits tilted 90° so its not level.

Did you find this review helpful? Yes No

  • Geen G.
  • 9/18/2014 5:16:55 PM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggs

Pros: looks great, well constructed, insturctions easy to figure out

Cons: couldn't use it on my case didn't fit inside my case. it was all my fault though not the product

Other Thoughts: cant take it apart wish i could so i could put it on top out side my case. I order cool master glacer 120L and it worked perfectly for my situation. I'm going to keep this radiator for an other computer for my living room.

Did you find this review helpful? Yes No

  • David S.
  • 9/9/2014 6:03:08 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExcellant so far

Pros: Good Design, well-built from strong materials. Tubing size is substantial.....not small, so coolant flow is not restricted. After experience with the other "shiny metal" maker of liquid CPU coolers, this product has much less fan noise. Using this with the standard fans, PWM dual connector is supplied, so both fans run off the single 4-pin PWM motherboard CPU connector, while the pump is connected to the additional 3-pin CPU connector. Be sure to enable the CPU fan control in the BIOS for Auto, so that the motherboard can adjust the fan speed automatically based on thermal CPU temps.

Cons: None noted.

Other Thoughts: If you can turn your case upside down to install the radiator, this will make the installation process a one-person job. The radiator mounts with small machine screws through the case, and are separate from the fan screws, which is a much better mounting approach.

1 out of 1 people found this review helpful. Did you? Yes No

  • Daniel R.
  • 9/5/2014 12:38:27 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggs2nd cooler much better

Pros: Great build quality. Fans stay relatively quiet up until around 41-42% speed which is more than sufficient.

Cons: First one was defective. See other thoughts.

Other Thoughts: I have a previous review where my first one was defective causing abnormal core temps.

Second one is running great so far with max temps around 75C on 4790k. Enermax was very responsive in their support ticket system with questions and I just handled my return with Newegg directly.

Did you find this review helpful? Yes No

  • Daniel R.
  • 9/1/2014 8:19:25 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

3 out of 5 eggsI must be the unlucky one.

Pros: Build quality is there, good fans, pump is quiet.

Cons: Unusually high core temps. See other thoughts.

Other Thoughts: I am running an Intel i7 4790k @ 1.2v (stock)

The idle temps are 38-40C according to hardware monitor and msi afterbunner. On full load using prime95 after just a few minutes core temps are reaching 95C.

Core 0 and 1 sit around 38-40. Core 2 35-37. Core 3 32-34. Its as if the bracket is not seating itself properly. When removing the CPU the paste spread seems fine. On load core 0, 1, 2 are all 90-95C and the only Core 3 is at a temp I would expect with this cooler (82-83C).

I've tried making adjustments on the torque on each corner to no avail. I have reapplied "Article Silver 5" three times using the "Pea method". Each time the temps have been the same.

I've opened a ticket with Enermax regarding this and will update my review when I have more information.

Manufacturer Response:

Hi Daniel,

We apologize for the inconvenience.

Your case is no being handled by our Tech Support Team. They will be providing you instruction on how proceed with the replacement.

Please feel free to contact us for further assistance.
Enermax support contact information
Email: support@enermaxusa.com
Phone: 626-913-8899

Thank you,
Enermax Customer Service

Did you find this review helpful? Yes No

  • Joshua W.
  • 8/20/2014 8:48:13 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGood Product

Pros: Keeps my CPU under requirements. Easy to install

Cons: Both fans crapped out on me within 2 days luckily I had the old fans from my case that would mount to the radiator. A little to big for your normal case.

Manufacturer Response:

Hi Joshua,

We are sorry to learn that both of the fans stopped working on your ELC-LT240-HP. Enermax LiqTech 240 Liquid Cooler comes with 1 year limited warranty.
Please contact us via the contact information below. We will be more than happy to send you replacement fans. Please kindly include a copy of the proof of purchase when submitting a RMA request.

http://www.enermaxusa.com/rma.php

Please feel free to contact us for further assistance
Enermax support contact information
Email: support@enermaxusa.com
Phone: 626-913-8899

Thank you,
Enermax Customer Service

1 out of 1 people found this review helpful. Did you? Yes No

  • Aaron A.
  • 8/16/2014 11:42:55 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsEnermax Liqtech 240 All-in-One Liquid Cooler 27MM Thick Radiator w/ Duo High Pressure Airflow Fans

Pros: Keeps my i7-4790k very cool, as low as 23°c! Fit in my Antec 1200 Full Tower No problem, just had to move to two rear fans closer together by reaming out the screw holes for the rear fans and flipping the rad upside down (tubes near the bottom fan/gpu slot) Fit like a charm. :)

Cons: The fan speed adjustment switch is behind the fans, the way I have mine set up anyways.

Other Thoughts: Maybe some color choices for the rubber that the radiator rests on..?

1 out of 1 people found this review helpful. Did you? Yes No

  • Justin B.
  • 8/14/2014 5:37:20 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsgood pump

Pros: its big, good surface area, and putting 4 fans on it keeps this thing ice cold

Cons: the pump worked for a few hours then started to grind. it then set of alarms that the cpu fan had failed. after i beat it with a screw driver it seemed to fix itself. so the con here is that it was a out of box failure till i beat it to work. now it stays quite and is super cold

Other Thoughts: only has about a foot of tubing. i had to go to O'reilly to get longer tubing.

1 out of 1 people found this review helpful. Did you? Yes No

  • Dave M.
  • 8/9/2014 10:12:14 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat for small itx cases!

Pros: This product worked great right out of the box. Immediately installed this into a Bitfenix Mini ITX. Keeps my A10-7850K Kaveri around 40c at full load, overclocked.
The two fans that mount to the radiator are quiet for normal tasks and can be jacked up for performance gaming.
Processor mounting was cake, my ASRock iTX board had a few components in the way of the plastic BACK bracket for the board. I easily cut some mm off the bracket for a better fit.

Cons: None

Other Thoughts: If you are looking to overclock, this will to the trick!

1 out of 1 people found this review helpful. Did you? Yes No

  • Robert C.
  • 8/1/2014 11:55:55 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsMiddle of the road performance with excellent quality

Pros: This is not my first AIO water cooler. I have also used the Corsair H55 and H110. Typically you will run into SOMETHING while installing your AIO cooler that will turn out to be something you can or can not live with, but this Enermax unit did not present any major issues. It fit, it works, and I have no real complaints. Here is the performance I am seeing after extensive testing:

First, the test setup:

1. Ambient air temp of 72 deg F
2. AIDA 64 Extreme used for all temperature and fan speed monitoring, along with with the load testing.
3. The TIM provided was discarded and I used my go-to TIM which is Prolimatech PK-3. My experience has shown this is the best TIM out there right now and I have used just about all of them.
4. The radiator is in top mount position, with the fans mounted below it drawing air up and out of the case pushing through the radiator. The fans were left at the default 600 RPM to 2000 RPM range via the switches on the fan motors and the fan speeds are varied by my system BIOS.
5. IDLE temps were recorded after the system had been pretty much idling all day. LOAD temps were recorded after 30 minutes with a reset on the averages about 2 minutes into the test so the results were not skewed. Therefore the LOAD temps are averaged over a 28 minute period, having had 2 minutes to come up in number from idle.
6. My motherboard uses multi-core enhancement, moving up the turbo bins. When I load all four cores the motherboard will push all cores to 3.8 GHz.

My system rig:

MSI Z97M Gaming, v. 1.2 BIOS
G.Skill Ares DDR3-2133 11-13-13-31, 16 GB (2 X 8GB sticks), 1.5V
Core i7-4790
Enermax Liqtech 240mm AIO water cooler
SanDisk Extreme II SSD, 480 GB as OS/Primary
MSI Gaming GTX770 TF video card, at factory default overclock
Seagate hybrid 3.5" 7200 RPM HDD 1TB as mass storage
LG DVD/RW
Seasonic GII 650W PSU
Steelseries Rival Optical Mouse
tT-Esports Poseidon Z Blue switch mechanical keyboard
Klipsch Promedia 2.1 system and Razor ORCA cans
Dell U2312 IPS display at 1080p via DVI
Corsair Obsidian 350D case
Windows 8.1 Update 1 64 bit

Results:

IDLE:

Core 0 25 deg C
Core 1 27 deg C
Core 2 23 deg C
Core 3 30 deg C

LOAD, all cores, all threads, 3.8 GHz (multi-core enhancement is used by MSI)

Core 0 57 deg C
Core 1 55 deg C
Core 2 55 deg C
Core 3 54 deg C

Other Pros:

1. Attractive
2. Hoses are flexible and easy to work with and pivot at the pump head.
3. VERY STURDY and stout mounting system for the heat pump.
4. Fans are PWM
5. A PWM splitter cable is provided so you don't have to hunt one down. This lessens the number of power connectors you need to locate on your motherboard and ensures both fans are controlled at the same rate.

Cons: 1. Price for performance. Enermax has a high quality unit and the performance is good, but not spectacular.
2. Fan speed switches are mounted on the side of the fan motor that will not be accessible once the fans are mounted to the underside of the radiator. Be sure you know what range you want before installing!

Other Thoughts: None at this point.

3 out of 4 people found this review helpful. Did you? Yes No

ICON Loading...

Protect Your Investment!

    • (more options) read warranty details

Send It As A Gift!

gift services details
Are you an E-Blast Insider? Subscribe Newegg e-Blast
PayPal
Shop without retyping payment details. Secure shopping made faster.
Check out with PayPal.

Home
Home >
Computer Hardware >
Fans & PC Cooling >
Water / Liquid Cooling >
Enermax >
Item#: N82E16835214058
Related Products
Following the success of the Seidon 120M, COOLER ...
      Overview   Features 3D Cold ...
The Corsair Hydro Series H60 is a fantastic ...
General Brand CORSAIR Series Hydro Series H100i Model ...
Shop by Region: United States | Canada | China
VeriSign Click for the BBB Business Review of this Computers - Supplies & Parts in Whittier CAThis site protected by Trustwave's Trusted Commerce program Inc500
Policy & Agreement | Privacy Policy  © 2000-2014 Newegg Inc.  All rights reserved.
If the Adobe Reader does not appear when you click on a link for a PDF file, you can download Adobe Reader from the Adobe web site. nassau
