Item#: N82E16835233037

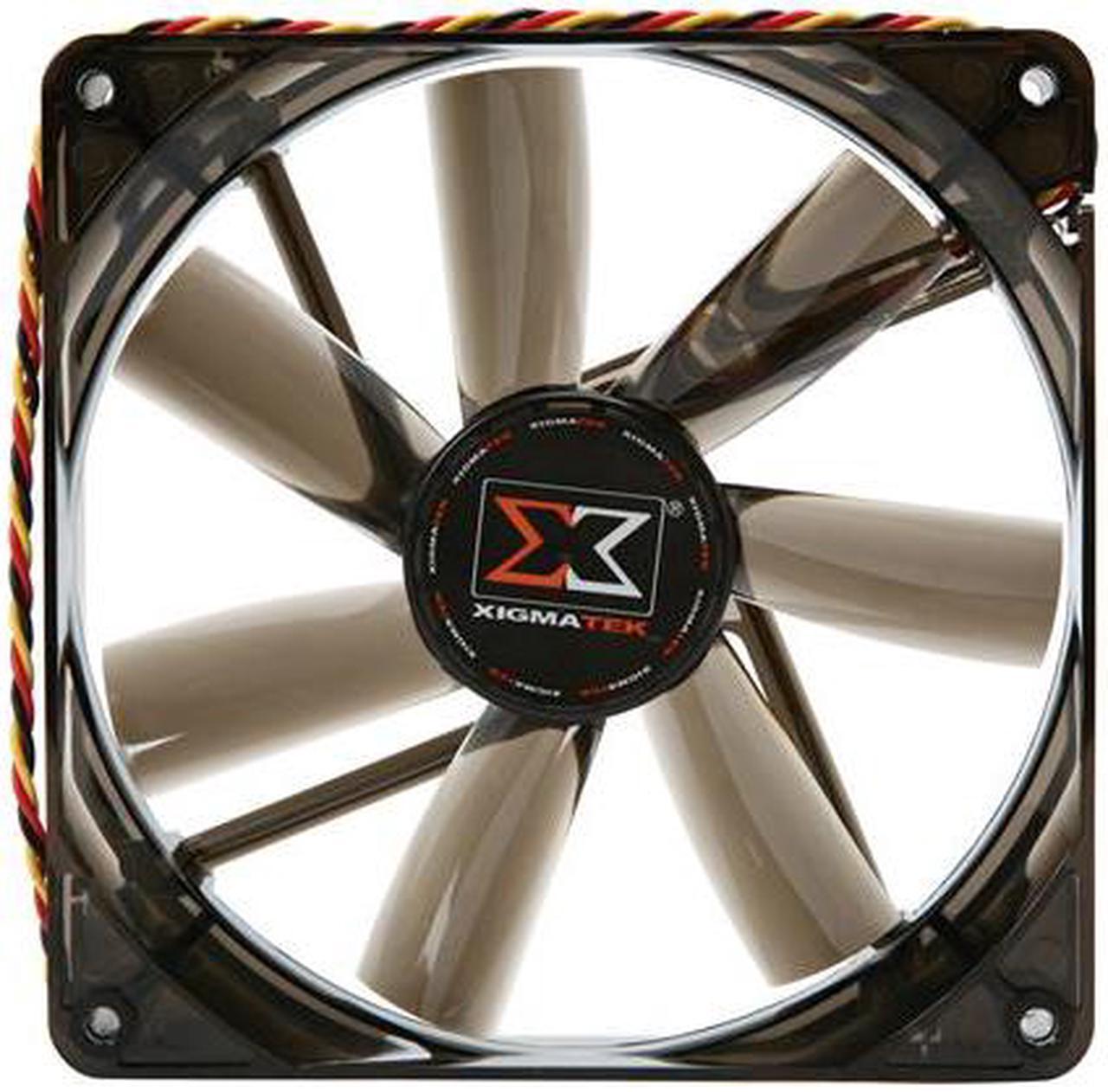

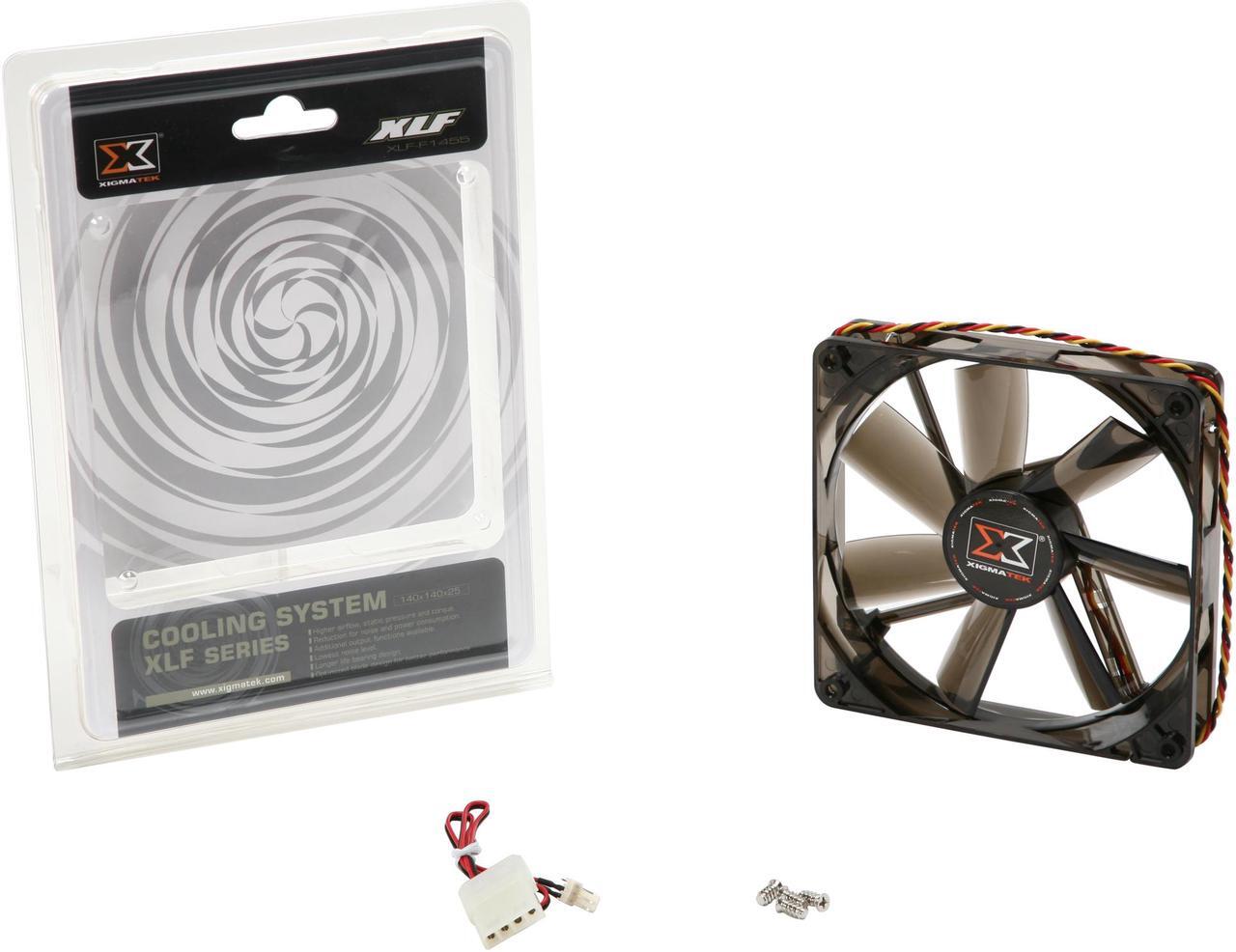

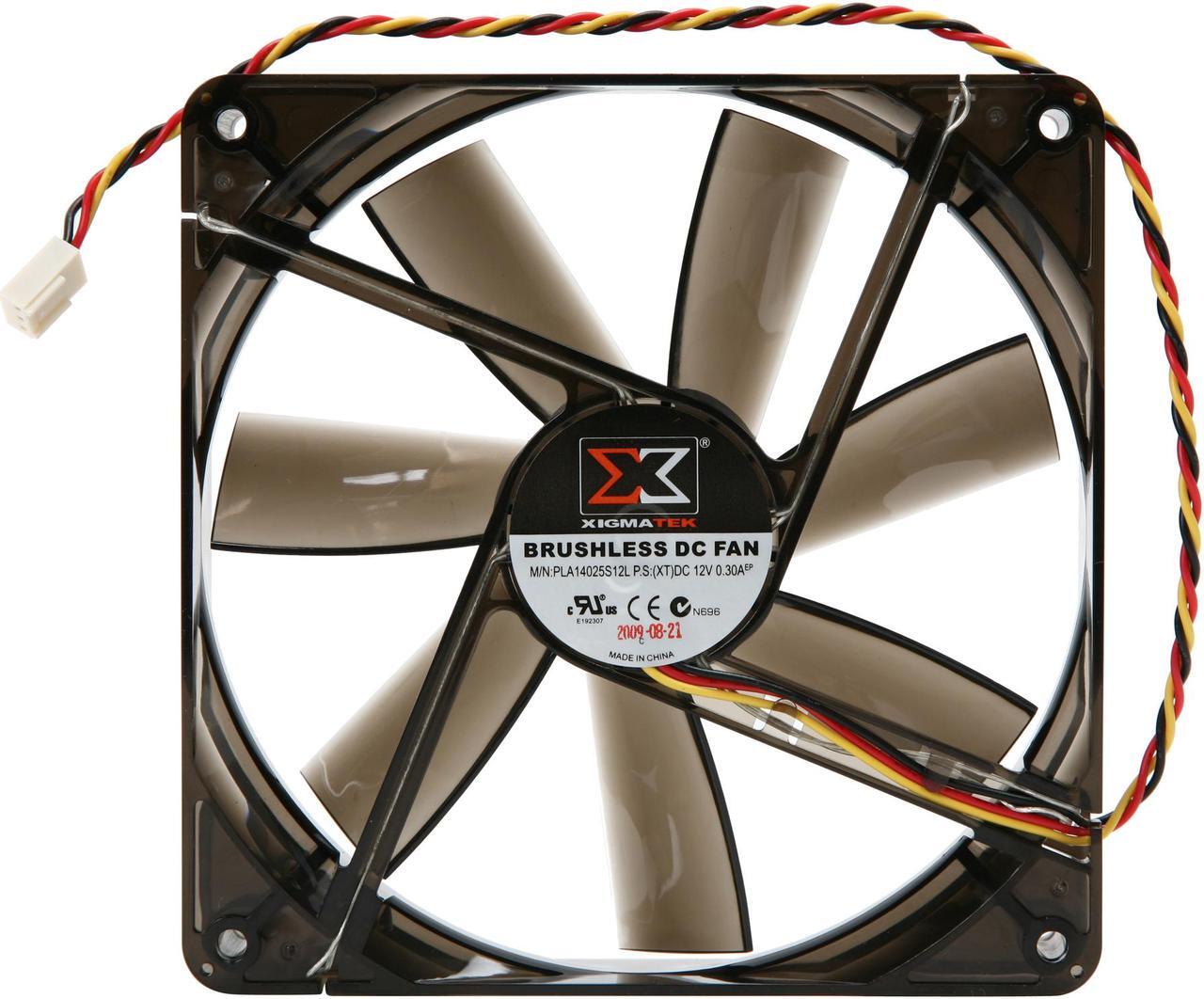

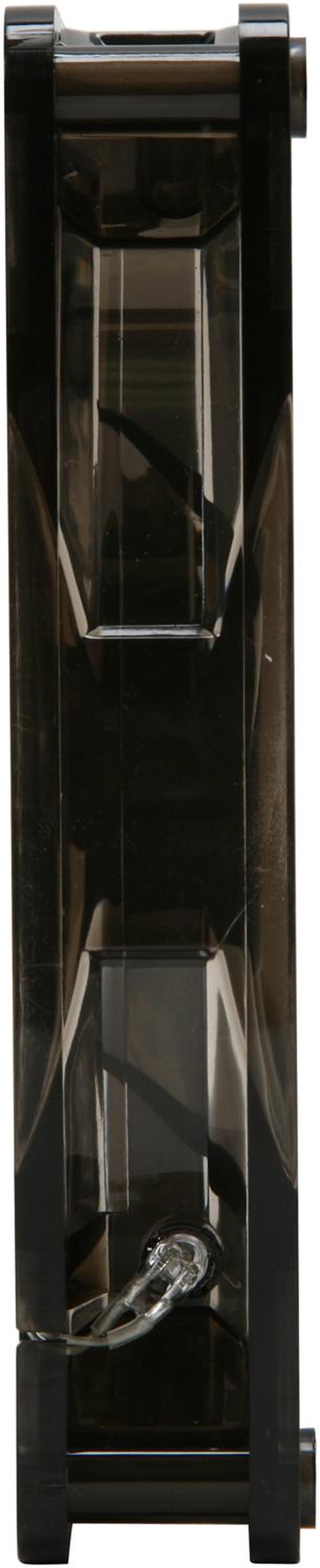

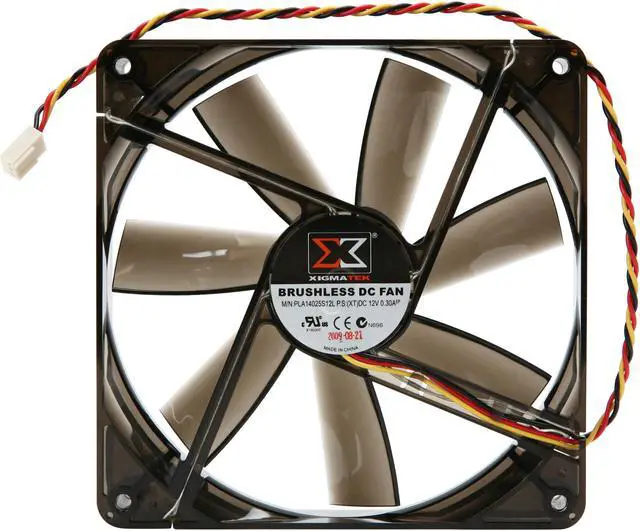

XIGMATEK FCB (Fluid Circulative Bearing) Cooling System XLF XLF-F1455 140mm White LED Black Case Fan PSU Molex Adapter/extender included

  • 140mm
  • 1000 RPM 63.5 CFM
  • Fluid Circulative Bearing
  • <16 dBA
This product qualifies for the Iron Egg guarantee. We'll match any qualifying competitor's price.
  • Pin It
  • Email this page
ICON Loading...

The new Xigmatek XLF Series of 140mm system fans continues the company's innovative design focus to provide advanced features and performance while maintaining excellent value to the end user. XLF Series is created with attention and detail, and not only does it look prestige from every angle it is manufactured with impeccable performance.

The XLF Series fan comes standard with 4 white LEDs insuring your case fan to be the center of attraction.

The XLF features a high quality "Fluid Circulative Bearing" which is tested to increase its lifespan by 50%. The Fluid Circulative Bearing uses a remarkable re-circulative fluid method which enables the bearing to rotate at a high and stable revs, reaching rotations up to 2200 RPM. Unlike average bearings on the market, FCB will cancel out 98.9% friction which means in practical everyday usage this ultimately produces a near silent atmosphere (<25 dBA).

Product Name

XLF Bearing



140(W) x 140(H) x 25(D) mm

Voltage Rating

12 V

Starting Voltage

6 V


1000 R.P.M.

Bearing Type

FCB Fluid Circulative Bearing

Air Flow

63.5 CFM

Air Pressure

1.111 mmH2O

Life Expectance

50,000 hrs


Noise Level

<16 dBA


Available color

4 white LED


3 Pin


4 pin adaptor


  • newegg Reliable and Outstanding Performance The 140mm fan’s optimized blade and long-life bearing design combine to create superior cooling performance with up to 63.5 CFM of airflow, higher static pressure and torgue while reducing the noise and power consumption.
  • newegg Cooling aesthetics The 4 pieces white LEDs and transparent colorific blade & frame add cooling aesthetics.

Learn more about the XIGMATEK XLF-F1455


XLF Series


Case Fan
Fan Size
Bearing Type
Fluid Circulative Bearing
1000 RPM
Air Flow
63.5 CFM
Noise Level
<16 dBA
Power Connector
3 Pin
4 white

Physical Spec

140 x 140 x 25 mm


Higher airflow, static pressure and torque.

Reduce noise and power consumption

4 pcs White LEDs and transparent colorific blade and frame

Low noise level.

Optimized blade design to create cooling performance

Quick Info

Customer Reviews of the XIGMATEK XLF-F1455

Do you own this product? Write a Review

ICON Loading...

Filter Results

  • Yang Y.
  • 2/21/2014 2:08:02 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

1 out of 5 eggsWorthless piece of junk

Pros: Cheap, got both fans for ~$12 after rebate.

Cons: Got these to replace my stock Antec fans b/c I can undervolt them with my fan controller. 6 months into use, one fan started to have loud rattle sound even at 700 RPM range; a year and half later, the other one starts to have buzzing sound at any RPM range. Xigmatek claims the fan has fluid circulative bearing, I don't believe them. I know this isn't Noctua quality, but even my cheapest Coolermaster, NZXT, and Antec fans last longer than 2 years at least. Just avoid this fan, spend money somewhere else if you want a cheap fan (NZXT).

Did you find this review helpful? Yes No

  • Chih C.
  • 7/23/2013 3:49:58 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsExcellent

Pros: Quiet and moves lots of air.

Cons: None!

Did you find this review helpful? Yes No

  • Patrick A.
  • 7/10/2013 12:39:10 PM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Quiet
Transparent Black with White LED

Cons: none so far

Other Thoughts: Purchased two on 03/02/2012 to cool my case and as of this review they have yet to make any bad noise.

Did you find this review helpful? Yes No

  • Josh I.
  • 5/12/2013 11:02:07 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

4 out of 5 eggsOk fan

Pros: Moves an okay amount of air with not much noise. White LEDs look very nice.

Cons: Lasted less than 1 year (about 11 months) before it started making a subtle but noticeable clicking noise.

Other Thoughts: Looked nice while it lasted. Even with the noise it makes it still performs well, just annoying in a quiet room.

Did you find this review helpful? Yes No

  • Alex R.
  • 2/18/2013 7:16:40 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsGreat Case

Pros: This case is huge and very well built. I did extensive research before deciding to get this case, and it did not dissapoint me.

Cons: I am taking one egg off due to Xigmatek's customer service. The item arrived with a crack in the window, which is not a huge deal since I plan on replacing it with a larger one anyway. However, I contacted Xigmatek asking them if it was possible to buy a replacement window for the time being over a week ago and never got a response.

0 out of 6 people found this review helpful. Did you? Yes No

  • Dustin H.
  • 2/5/2013 11:05:33 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggsgreat fan

Pros: is a very large, quiet fan, moves decent air.

the blades are mirrored, and the LED's shoot down them, giving a swirl

Cons: I didn't get my rebate either, but doesn't make it less of an awesome fan.

I think i paid 16 each on 4 of them

Other Thoughts: I have them in a fractal designs R4. my CPU fan died over a year ago, and my GPU fans have both failed as well, I still have low temps

soc 939, single core, 6600gt (nvidia)

1 out of 1 people found this review helpful. Did you? Yes No

  • James M.
  • 12/6/2012 9:04:59 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

2 out of 5 eggsbig fan .. big sound

Pros: Bought this as an inexpensive front case fan. It's large and moves air quite well enough. Simple to install. Blade and air direction clearly marked on outer case. LEDs are not bright or annoying.

Cons: Makes a horrid high pitched whining noise. Certainly louder than 16 dBA claimed on package. And the terrible tone puts that loud noise over the top into annoying category.

Other Thoughts: Sent it back for refund. Will look for something better.

0 out of 1 people found this review helpful. Did you? Yes No

  • Kenneth F.
  • 12/3/2012 5:45:02 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsRebate Arrived

Pros: It works

Cons: None: See Other Thoughts

Other Thoughts: As stated below, if you have a copy of your rebate submission the person to contact is Nicole at She will work with you to get your rebate. I resubmitted mine via email, but it did take about 6 weeks to receive the check. The company writes their rebates check once a month.

Did you find this review helpful? Yes No

  • Anonymous
  • 10/25/2012 7:15:22 PM
  • Tech Level: Average
  • Ownership: less than 1 day
  • Verified Owner

5 out of 5 eggsVery good for $13

Pros: I have a Corsair C70 case with two of these mounted to the clear window. At full speed, these are about as quiet as my Noctua fans and move a decent amount of air. I had the 120mm version of these fans mounted to my window before and these are many times quieter than them. The LED's look good, and they aren't ridiculously bright.

Cons: Not free, and the wires could be covered with something to look nicer.

Did you find this review helpful? Yes No

  • Thomas S.
  • 9/24/2012 12:30:39 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsSave your rebate info!

Pros: The fan itself works just fine. Good airflow and reasonably quiet.

Cons: The price point for this fan is a mediocre bargain, and nothing in particular sets it apart. They seem to make up for this by offering rebates that they hope they don't have to honor (check the other reviews and Google the company to verify this). Do not buy this fan (or anything from this company) based on a rebate, and if you do buy it intending to claim a rebate, SAVE A COPY OF EVERYTHING YOU SEND! Then be ready to wait, wait some more, and finally hound them until they honor their rebate.

Other Thoughts: I purchased this fan on 2/7/12 where it was free after rebate. Being the type to enjoy getting something for nothing, I decided to take a chance, but I made sure to keep copies of everything I sent and also set myself a reminder to check back on it. The deal said to allow ten weeks from the postmark deadline to receive payment. I waited every bit of that and then some without seeing anything, so I sent an email to check on it. A nice lady named Nicole asked me to email a copy of the submission, so I did (obviously if I hadn't had the warning and known to save everything I would have never seen a dime). Over two weeks later, and I had to ask for a date to receive payment. Nicole told me that they only process payments once a week but I was in queue (never mind that two of their payment cycles had already passed). Over two weeks more and I finally asked for an exact date. Things must have gone to a supervisor, because I finally got paid on 9/24/12 (over SEVEN MONTHS after I sent it).

0 out of 2 people found this review helpful. Did you? Yes No
