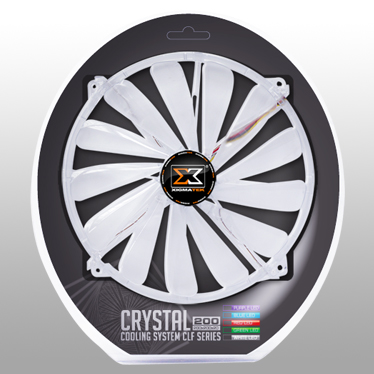

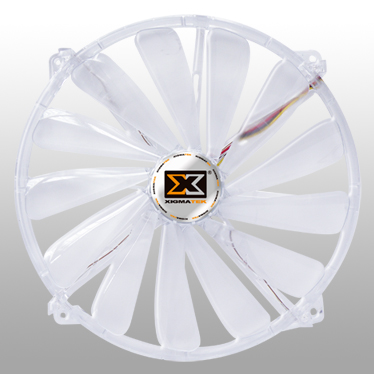

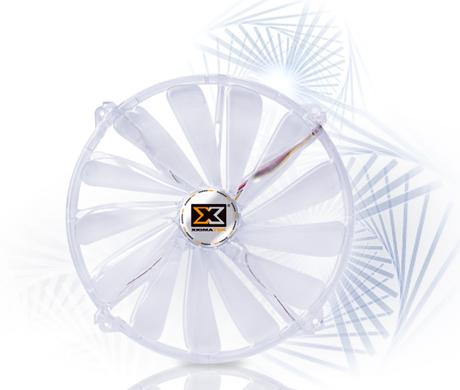

XIGMATEK FCB (Fluid Circulative Bearing) LED Fan Crystal series CLF-F2002 200mm Red LED Case Fan Molex Adapter/extender included

(15) |

Write a Review

200mm
800 RPM 76.0 CFM
Fluid Circulative Bearing

The new Xigmatek CLF Crystal Series of 200mm system fans continues the company's innovative design focus to provide advanced features and performance while maintaining excellent value to the end user. CLF Series is created with attention and detail, and not only does it look prestige from every angle it is manufactured with impeccable performance.

The CLF Series fan comes standard with quad LEDs incorporated with transparent frame and blades insuring your case fan to be the center of attraction.

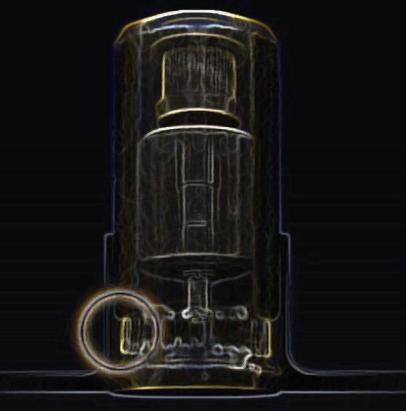

The CLF features a high quality "Fluid Circulative Bearing" which is tested to increase its lifespan by 50%. The Fluid Circulative Bearing uses a remarkable re-circulative fluid method which enables the bearing to rotate at a high and stable revs, reaching rotations up to 1500 RPM. Unlike average bearings on the market, FCB will cancel out 98.9% friction which means in practical everyday usage this ultimately produces a near silent atmosphere (<20 dBA).

Product Name	CLF Bearing
Fan	Dimension	200(W) x 200(H) x 20(D) mm
	Voltage Rating	12 V
	Starting Voltage	9 V
	Speed	800 R.P.M.
	Bearing Type	FCB Fluid Circulative Bearing
	Air Flow	76.0 CFM
	Air Pressure	0.49 mmH2O
Life Expectance	30,000 hrs
Noise Level	<18 dBA
Available color	4 red LED
Connector	3 Pin
Accessory	4 pin adaptor Screws4 Rubbers4

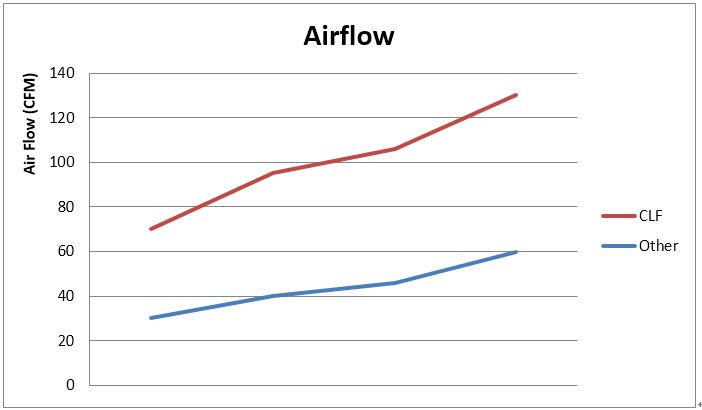

Reliable and Outstanding Performance The 200mm fan’s optimized blade & long-life bearing design creates superior cooling performance with up to 76.0 CFM of airflow while reducing the noise and power consumption.
Whisper-quiet The XIGMATEK LED Fan Crystal series runs at an ultra-low noise level (<18 dBA) to deliver a quiet computer environment. Anti-vibration rubbers are attached.

Learn more about the XIGMATEK CLF-F2002

Model

Brand: XIGMATEK

Series: LED Fan Crystal series

Model: CLF-F2002

Spec

Type: Case Fan

Compatibility: Case

Fan Size: 200mm

Bearing Type: Fluid Circulative Bearing

RPM: 800 RPM

Air Flow: 76.0 CFM

Noise Level: <18 dBA

Power Connector: 3 Pin

Color: Transparent

LED: Red

Physical Spec

Dimensions: 200 x 200 x 20 mm

Features

Features: Performing max. Air flow and mini. amount of noise

Less power consumption

Optimized blade design to create cooling performance

Reduce noise and power consumption

Quad LEDs and transparent frame and blades

Longer life bearing design

Reliable and outstanding performance

Anti-vibration rubbers attached

4 pin adaptor attached

Voltage Rating: 12 V

Starting Voltage: 9V

Life Expectance: 30,000 hrs

Manufacturer Warranty

Parts: 1 year limited

Labor: 1 year limited

Quick Info

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year

Manufacturer Contact Info

Customer Reviews of the XIGMATEK CLF-F2002

Do you own this product? Write a Review

Filter Results Last 2 Weeks (1) Last 6 Months (3) All Reviews (15) 60% (9) 20% (3) 20% (3) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go page SubmitTopPaginationForm of 2 previousTopPaginationForm\| nextTopPaginationForm
N/A 5/8/2013 10:36:11 AM Tech Level: 4/5 Ownership: 3/5 Verified Owner	Rating: 4/5 Pros: 1. The Led is bright 2. Silent fan 3. Good if your chassis does not have that big room on top Cons: 1. You can only mount it on one side 2. Some how It does not feel it takes out air that much on top Other Thoughts: I would suggest try some other fan if you want some more air flow Did you find this review helpful? Thanks for the valuable feedback you provided!
PhrogUSMC 3/30/2013 4:29:08 PM Tech Level: 3/5 Ownership: 2/5 Verified Owner	Rating: 5/5Great fan Pros: Slim fit Quiet Keeps my system cool Red LEDs look great Overall good fan. The slimmer profile allowed my CM Hyper 212+ to JUST BARELY fit under it in a CM HAF XB cube. Cons: Almost didn't fit in CM HAF XB. Not the fan's fault, since CM engineered it so only THEIR 200mm fan will fit. Other Thoughts: In my HAF XB currently (all red LED): Xigmatek 200x20mm (TOP) Xigmatek 140x25mm(x2) (FRONT) Xigmatek 120x25mm (TOP REAR) Xigmatek 80x25mm(x2) (LOWER REAR) All 6 fans together are quieter than the stock 120mm(x2) fans that came with the case, and the red glow looks great and is not bothersome in low light. Did you find this review helpful? Thanks for the valuable feedback you provided!
chris j 12/13/2012 6:39:56 PM Tech Level: 4/5 Ownership: 2/5 Verified Owner	Rating: 3/5 Pros: Blows good air, and is thin, and nice red color Cons: No duel mount, i knew it didnt when getting it. I was going to just get bolts and nuts, but just got another fan that had the duel mount Other Thoughts: Great for top mounted fan Did you find this review helpful? Thanks for the valuable feedback you provided!
wes 11/14/2012 6:47:55 AM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 5/5Awesome! Pros: Fits perfectly in my Coolermaster HAF-912. Looks great and matches my red theme. This is the only fan that had clearance for my antec all in one water cooler on the back with this fan in the top of the case. Low clearance, quiet operation, moves lots of air. Cons: Absolutely nothing that I can tell. Other Thoughts: Good for the HAF 912 and I assume other cooler master cases with 200mm fan spots. Slimmer so there is room for push pull radiator on the back of case (one of those fans is outside of my box) Did you find this review helpful? Thanks for the valuable feedback you provided!
Dargon 8/21/2012 9:40:42 AM Tech Level: 4/5 Ownership: 3/5 Verified Owner	Rating: 5/5Good thin fan. Pros: Good Fan for tight Spaces. Has good color, not pink like most pictures on the net make it out to be. Cons: Slightly louder, though still very quiet. Less air flow. All due to the slim size. Out of the box it is only set up as an exhaust fan. (that's what I wanted anyway though.) Other Thoughts: If you need a slim fan for a tight space this is virtually the only fan in town. Good quality. Did you find this review helpful? Thanks for the valuable feedback you provided!
N/A 5/2/2012 2:19:54 PM Tech Level: 4/5 Ownership: 4/5 Verified Owner	Rating: 5/5Good fan Pros: Very silent and works great. Cons: None yet. Did you find this review helpful? Thanks for the valuable feedback you provided!
Da Alpha Supreme 2/11/2012 1:41:54 AM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5Good, but will be Pros: great with a Fan Controller. A true Red LED, will fit in a tight spot. Fan will run @ 710RPM with a fan controller. If it's hooked up a Mobo, it will probably not reach 600. Quite for it's size. Long Cable so it is easy manageable anywhere in the case. Cons: Wish it was a smoke black Other Thoughts: i7-2600K @ 5.1GHz (2) EVGA GTX 560Ti 448 Cores Classified Edition Asus Maximus IV Extreme-Z 16GB of DDR3 1600 Corsair Corsair 180 Force GT SSD Corsair AX850 PSU Corsair H100 Cooler Corsair 650D Lamptron FC5 V-2 LG Black 12X Blu-Ray Writer Did you find this review helpful? Thanks for the valuable feedback you provided!
Mike 12/23/2011 11:27:40 AM Tech Level: 4/5 Ownership: 2/5 Verified Owner	Rating: 4/5Great fan, Just one Problem Pros: Very quiet Good construction Red LEDS match the NZXT led kit color Cons: -1 Egg: Can only be mounted as exhaust fan. Other Thoughts: Don't ask me why they designed it like this... Completely dumb. Anyways make a trip to Lowes and grab 8-32x1-1/4 machine screws with nuts. This will let you use it as intake also. Then use dremel to remove the ends of screws that stick out. 2 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
datatype_void 11/8/2011 5:37:06 AM Tech Level: 4/5 Ownership: 3/5 Verified Owner	Rating: 5/5All fans are not created equal Pros: -Nice red LEDs. Not orange, not pink. Red. -Easy installation. Cons: None. Other Thoughts: -Installed right into my Cooler Master Haf X. -Barely audible until right around full blast. -To those complaining that it couldn't be mounted on top of the Haf X; you should be installing it as an exhaust fan anyway. Heat rises, why push it back down into the case? CPU: AMD Phenom II X6 1090T Black Edition (4.1GHz with 281MHz bus speed) Heatsink: ZALMAN CNPS9900MAX-R 135mm Heatsink Motherboard: ASUS Sabertooth 990FX GPU: 2x MSI GeForce GTX 460 Cyclone in SLi (1037/860/1875) Memory: G.SKILL Ripjaws X Series 16GB 7-8-9-24-26-1T (4 x 4GB) Storage: WD Black Caviar 750Gb x1; Mushkin Enhanced Callisto Deluxe 40Gb SSD x1 PSU: OCZ ZX Series 1000W 80PLUS Gold Case: Cooler Master Haf X Did you find this review helpful? Thanks for the valuable feedback you provided!
Fishcake 9/1/2011 8:23:45 AM Tech Level: 4/5 Ownership: 2/5 Verified Owner	Rating: 3/5iffy Pros: push a good amount of air, led is bright and not the slightest bit orange or pink Cons: mounting is really annoying, which is a major turn of. not worth it once the mounting was done in the haf x. the fans mount INSIDE the case to be set up as an exhaust, which is a major design flaw. don't get this if you are installing two fans at the top of the haf x considering the haf x cant fit second fan inside the case to be mounted Other Thoughts: good fans, just an insanely ridiculous mounting setup Props to newegg, always doing a good job with delivery 0 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
