XIGMATEK AOS (Aeronautical Oil System Bearing) XAF-F1454 140mm White LED Black Case Fan Ultra Quiet Copper Bushing Axis Aeronautical Oil System Bearing

(7) |

Write a Review

140mm
800 - 1300 RPM 90.3 CFM (MAX)
Aeronautical Oil System Bearing

Overview

The new Xigmatek XAF Series of 140mm system fans continues the company’s innovative design focus to provide advanced features and performance while maintaining excellent value to the end user. The innovative “waveform” shape of the fan blades on the XAF series aren’t just for show and provide real performance benefits. The XAF series also features a very high quality copper bearing system which extends the service life of the fan 50% over that of fans using regular ball or sleeve bearings.

Xigmatek XAF-F1454

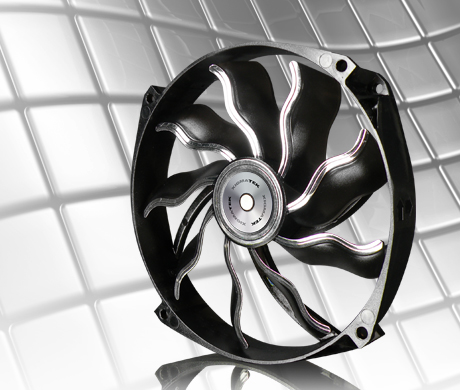

A New Wave in Fan Design

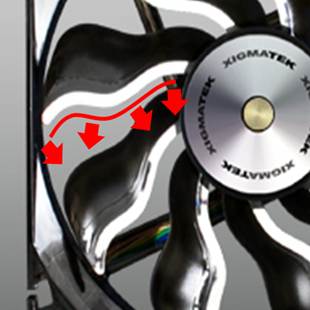

The unique “waveform” fan blade shape of the XAF series fans were specifically designed to maximize airflow per revolution. The “waveform” shape, along with the minimized central hub, increases the surface area of each fan blade over traditional designs and delivers up to 15%-20% more CFM at comparable RPMs over normal fan designs. Furthermore, unlike traditional fans which act like an air scoop, the irregularly shaped wave of air that forms in front of the “waveform” blade helps to reduce the collection of dust on the fan blade itself.

• Innovative “waveform” fan blade designed for performance – The unique shape of the XAF series fan blades and the minimally sized central hub dramatically increases blade surface area and generates 15%-20% more CFM at comparable RPMs to traditional fans. More airflow equals better cooling performance.

• Dramatically reduces dust collection – Traditional curved fan designs act like air scoops and over time they collect dust over the entire blade which increases air resistance and decreases performance. The unique “waveform” fan blade of the XAF series generates an irregularly shaped pressure wave in front of the fan blade which helps to reduce dust collection.

• High quality copper bearing for long life – The bearing is the heart of a fan system. Xigmatek’s use of superior grade copper materials for the bearing system ensures up to 50% longer service life than regular ball or sleeve bearing designs. Greater reliability gives you peace of mind for your PC system.

Features

• Innovative “waveform” fan blade design to dramatically increase airflow up to 20% over standard blade designs

• “Waveform” blade produces irregular air pressure wave at the front of the blade helping to reduce dust collection

• High quality, long life copper bearings designed to extend service life up to 50% over standard ball or sleeve bearing designs – MTBF rated at 150,000 hours

• Available in 3-pin (non-PWM) or 4-pin (PWM) versions

• Comes in a variety of colors and with or without white LED

• 140mm versions available for most standard PC system applications

Specifications:

Product Name	XAF-F1454
Product Number	CFP-DYGWL-KU4
Material	P.B.T.
Dimension	140(L)x140(W)x25(H) mm
Voltage Rating	12 V
Start Voltage	=9V
Speed	800~1200 R.P.M.
Bearing Type	Aeronautical Oil System Bearing
Air Flow	90.3 CFM [MAX.]
Air Pressure	1.08 mmH²O [MAX.]
Life Expectance	150,000 hrs
Noise Level	<18 dBA
Color	Black & Black
Connector	4 pin with PWM
LED	4

Xigmatek Leading the Way

Xigmatek continues to lead the market in innovative ideas that are translated into truly unique products. Xigmatek’s commitment to innovation, design, quality, performance and value means that the customer gets the best featured and price/performance value in the market.

Xigmatek: We Innovate

Best airflow-noise ration Wave Shaped and small hub dimension increase 25% of air flow while dropping 10% noise. And waveform and enhanced lubricant circuits provide outstanding aerodynamic efficiency. As a result, the XIGMATEK XAF-F1454 delivers airflow up to 90.3 CFM (MAX) at less than 18 dBA noise level.
Fan speed control Wide range of PWM function (800 to 1300 RPM) ensures simple and easy fan speed adjustment with the latest ETC IC.
Long life cycle Copper bushing axis bearing provides long-term life and stability.

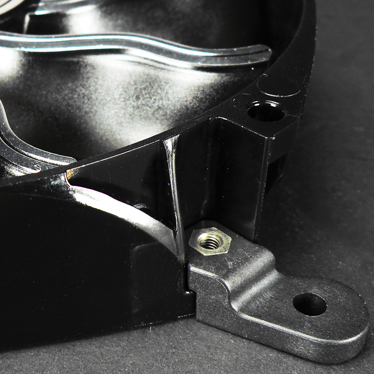

Broad compatibility The round frame of this 140mm fan allows it to be installed on 120mm or 140mm mounting holes.

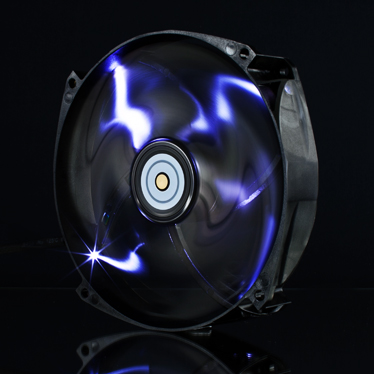

Cooling aesthetics The 4 pieces white LEDs and transparent colorific blade & frame add cooling aesthetics.

Learn more about the XIGMATEK XAF-F1454

Model

Brand: XIGMATEK

Model: XAF-F1454

Spec

Type: Case Fan

Compatibility: Case

Fan Size: 140mm

Bearing Type: Aeronautical Oil System Bearing

RPM: 800 - 1300 RPM

Air Flow: 90.3 CFM (MAX)

Noise Level: <18 dBA

Power Connector: 4 pin with PWM

Color: Black

LED: White

Physical Spec

Dimensions: 140 (L) x 140 (W) x 25 (H) mm

Features

Features: Copper bushing axis Bearing to provide long-term life and stability

4 pcs White LEDs and transparent colorific blade and frame

Quick Info

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year

Manufacturer Contact Info

Customer Reviews of the XIGMATEK XAF-F1454

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (2) All Reviews (7) 71% (5) 29% (2) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
N/A 1/9/2013 1:13:19 PM Tech Level: 3/5 Ownership: 3/5 Verified Owner	Rating: 5/5Great fan Pros: Looks great, makes very little noise, and moves a lot of air. The thin frame makes mounting a breeze almost anywhere. Im also a fan of the sleeved cable. Cons: none so far, i thought the mounting brackets were annoying at first. Once i got them installed however its a very solid design and they are very easy to attach. Other Thoughts: they are a little on the expensive side. But it is a quality fan. Did you find this review helpful? Thanks for the valuable feedback you provided!
smarty 11/29/2012 5:31:58 PM Tech Level: 5/5 Ownership: 2/5 Verified Owner	Rating: 4/5great fan Pros: this fan looks great in my case and moves alot of air its led are very bright and it adds a nice touch Cons: you can see lights on signing through case this is not an isue for me but may be for you and also be shore that u check the static pressure its really low... so be carfull when adding this to a radiator or heatsink as it may not have enough pressure to properly cool may be check the Xigmatek XAF-F1255 120MM PWM Fan with Copper Bushing Axis Black Blade White LED out thats what im mounting on my h100 Did you find this review helpful? Thanks for the valuable feedback you provided!
R3 9/10/2012 4:56:23 PM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5High speed, Low drag! =P Pros: Works as advertised. Moves air quietly when unrestricted. LEDs aren't too bright, aren't to dim. Cons: Watching the thinnish fan housing contort and listing to the plastic creek as I put the case screws in was a bit worrying, but after pulling the fan off to inspect for damage there was none. Other Thoughts: If possible use the included adapters when installing, process goes much easier and lets you avoid stressing the housing any. Did you find this review helpful? Thanks for the valuable feedback you provided!
Mongral 4/28/2012 6:42:38 PM Tech Level: 3/5 Ownership: 3/5 Verified Owner	Rating: 5/5I’m happy Pros: Seems to blow (a lot of air). No hums/wining, so very quiet. If you run it at 100% you will hear the air blowing/moving so not silent. Mine is good at between 75-80% power. Cons: The white LEDS are stupid. What was I thinking? Maybe I’ll take a sharpie to them. Shipping was spendy. Shouldn’t have to pay shipping if you by a bunch of stuff. Other Thoughts: Screwwed into a 120mm fan size but is bigger. I had both 14cm and 12cm. adapter things came with it to go into a 14cm I think i'll get another<no ledz> We'll see how long it lasts.... Did you find this review helpful? Thanks for the valuable feedback you provided!
N/A 1/1/2012 8:36:42 PM Tech Level: 5/5 Ownership: 3/5 Verified Owner	Rating: 5/5great fan Pros: extremely quiet and very powerful Cons: none 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
N/A 12/5/2011 2:46:01 PM Tech Level: 4/5 Ownership: 2/5 Verified Owner	Rating: 4/5Alright Pros: Quiet. Looks good. Cons: I'm not a pro with fans or anything so I'm not sure if you're just not supposed to install these kind of fans lying flat (top of case) because they made some noise when I had em there. Touching the front made it stop for a short time. I ended up just putting them on the side of the case and they're fine. 5 eggs if noise of cause of my ignorance. Other Thoughts: Noise level is lower than I expected. Will probably get some more powerful fans for my systems intake. 0 out of 5 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
BPags52 11/23/2011 4:51:40 PM Tech Level: 3/5 Ownership: 2/5 Verified Owner	Rating: 5/5Great fan!! Pros: Great fan! It's silent just like the other xigmateks I have (which are the crystal series 120mm white LED fans), but this one moves much more air. Cons: The molex adapter that it comes with isn't an extender like the one that comes w/ the crystal series fans. This one is only about 2 inches long, whereas the others are around 8-10 inches long. I wouldn't have been able to plug it in where I wanted to if I didn't have an extra molex adapter/extender that came with one of the other xigmateks. Other Thoughts: I used this fan to replace the rear 120mm exhaust fan in a Corsair 600T case, it moves much more air than the stock fan. This fan BARELY fits in that slot, but it does fit. Also, when you go to put the side panel back on, it will not be a perfect fit on that rear edge/corner of the case, because part of the side panel will bump ever so slightly into the side of the fan. It's just the corner of the side panel that doesn't line up perfectly w/ the rest of the case, but the panel WILL snap fully into place. It is hardly noticeable, most people won't notice it unless you point it out to them and they look at it from the side. The corner only protrudes out like 2mm...not enough for any light to shine through. It's not enough to bother me. Overall, I'm happy w/ the purchase, great airflow and it is silent. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
