Item#: 9SIA9PV3YB0448

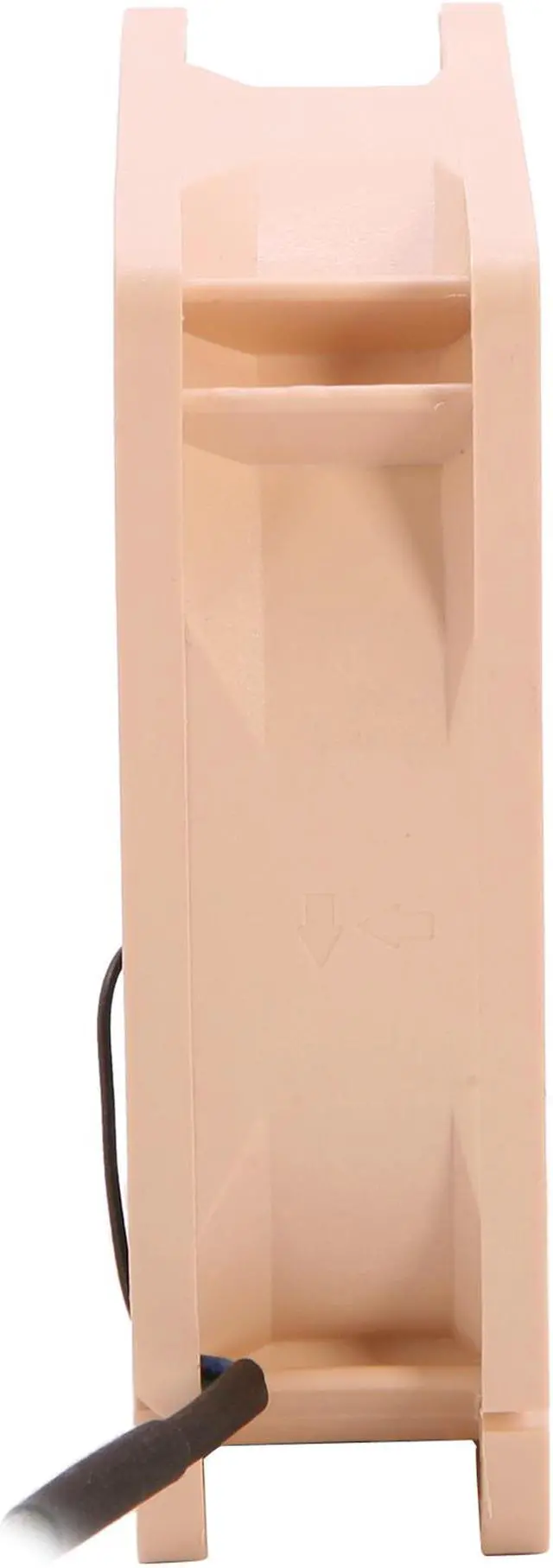

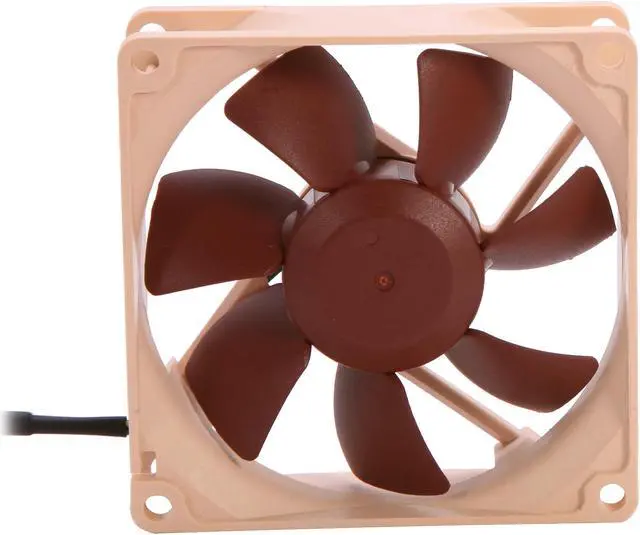

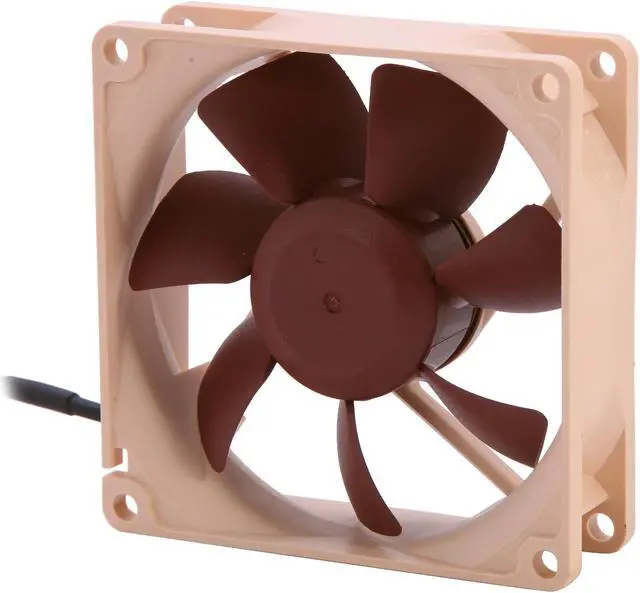

Noctua NF-R8 PWM 80mm Case Fan

Sold and Shipped by AmaMax (USA) Since 1993 a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 80mm
  • 1800 RPM +/-10%, 1300 RPM +/-10% (w/ L.N.A), 300 RPM +/-10% (Min. Rotational Speed (PWM)) 53.3 m3/h (standard), 39.4 m3/h (w/L.N.A.)
  • SSO-Bearing (Self-stabilising oil-presure bearing)
  • 17.1 dBA, 10.2 dBA(w/ L.N.A)

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

The classic NF-R8 80mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO bearing and topped off with a 6 years manufacturer’s warranty, the NF-R8 PWM is a proven premium choice for the highest demands.

  • newegg Proven NF-R8 Design Tens of thousands of quiet cooling enthusiasts swear by Noctua’s classic NF-R8. Its impressive quietness, excellent performance and impeccable, time-tested quality made the R8 a default choice for 80mm quiet cooling.
  • newegg Custom designed PWM IC with SCD Supporting fully automatic PWM speed control, the NF-R8 PWM uses Noctua’s novel, custom designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
  • newegg Low-Noise Adaptor The NF-R8 PWM is supplied with a Low-Noise Adaptor (L.N.A.) that reduces the maximum fan speed from 1800 to 1300rpm. The L.N.A can be used either to run the fan at a fixed speed of 1300rpm or to cap the maximum speed when using automatic PWM control.
  • newegg Extensive Cabling Options The fan’s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows you to connect a second NF-R8 fan to the same PWM fan header for automatic control.
  • newegg SSO-Bearing Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua’s time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.

Learn more about the Noctua NF-R8 PWM

Model

|
Brand
Noctua
Model
NF-R8 PWM

Details

|
Type
Case Fan
Compatibility
Case
Fan Size
80mm
Bearing Type
SSO-Bearing (Self-stabilising oil-presure bearing)
RPM
1800 RPM +/-10%, 1300 RPM +/-10% (w/ L.N.A), 300 RPM +/-10% (Min. Rotational Speed (PWM))
Air Flow
53.3 m3/h (standard), 39.4 m3/h (w/L.N.A.)
Noise Level
17.1 dBA, 10.2 dBA(w/ L.N.A)
Power Connector
4 Pin
Color
Brown

Features

|
Features
Raised Blade Design

SSO Bearing ( Self-stabilizing Oil-pressure bearing ) design.

Dimensions & Weight

|
Dimensions
80 x 80 x 25mm

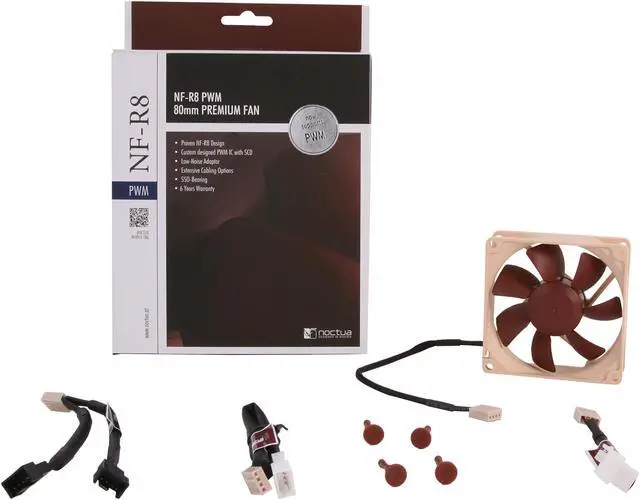

Package Contents

|
Package Contents
Low-Noise-Adapter (L.N.A)
4 Pin Y-Cable
30cm Extension Cable
4 Vibration Compensators
4 Fan Screws
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 6 years
  • Limited Warranty period (labor): 6 years
  • Read full details
