Item#: N82E16838129101

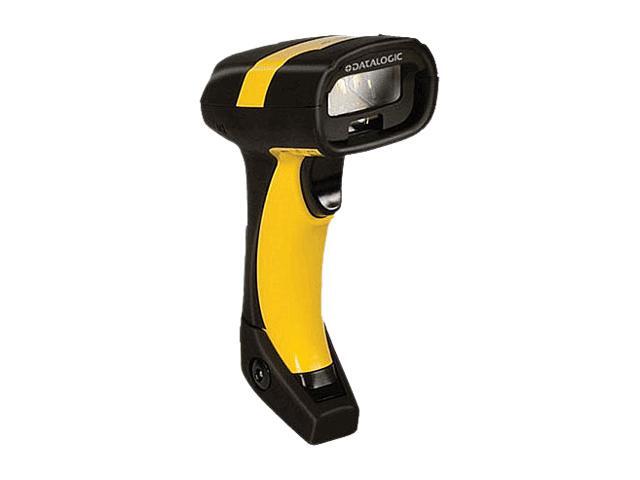

Datalogic PD8330-AR PowerScan PD8330 Industrial Bar Code Reader

Be the first to review this product...
  • Rugged laser 1D bar code scanner
  • Patented "Green Spot" Technology
  • Auto Range reads 8.0 in to over 41.0 ft
  • Scanner only, cable sold separately

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the Datalogic PD8300

General

|
Brand
Datalogic
Series
PowerScan
Model
PD8300
Part Number
PD8330-ARK2
Form Factor
Handheld
Connectivity
Corded
Scan Engine
1D

Connectivity

|
Included Cables
Scanner Only - No Cable
Interfaces Supported
Multi-Interface

Scan Performance

|
Light Source
630 - 680 nm VLD
Resolution
3 mils
Depth of Scan Field
5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in
7.5 mils: 3.5 to 24.2 cm / 1.4 to 9.5 in
10 mils: 2.9 to 42.8 cm / 1.1 to 16.8 in
13 mils: 2.3 to 55.1 cm / 0.9 to 21.7 in
20 mils: 6.3 to 78.5 cm / 2.5 to 30.9 in
40 mils: 2.5 to 97.8 cm / 1.0 to 38.5 in
Pitch
5 to 55° / -5 to -55°
Roll
±20 degree
Yaw
±60 degree
Scan Speed
35 +/- 5 scans/sec.
Print Contrast Ratio (Minimum)
15%
Decoding Capability
1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

STACKED CODES Code: 16K; Code 49; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Electrical

|
Input Voltage
4 - 30 VDC
Current
Operating (Typical): 420 mA @ 4 V; 310 mA @ 5 V; 62 mA @30 V
Standby/Idle (Typical): 4 mA

Mechanical

|
Color
Yellow/Black
Dimensions
8.1" x 4.5" x 2.7"
Weight
0.65 lbs.

Features

|
Ruggedness
Rugged
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 5 years
  • Limited Warranty period (labor): 5 years
  • Read full details

Customer Reviews of the Datalogic PD8300

There are no reviews yet... do you own this product? Write a Review
