Item#: N82E16838134148

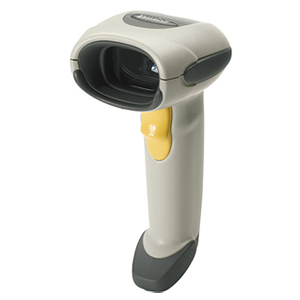

Motorola LS4208-SBZK0100ZR Symbol LS4208 Barcode Scanner

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 1D Laser
  • Handheld
  • 200 decodes per second
  • PS/2 Interface
  • Includes PS/2 cable
  • Color: Black

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Symbol LS4208

Handheld Scanner

Increase Performance with Motorola’s Next-Generation Scanner for Customers who Value Productivity
With the Symbol LS4208 handheld laser bar code scanner, you’re able to effortlessly speed throughput, even with bar codes in poor condition. Wherever you need to quickly capture and process data — such as at the retail checkout counter, in pharmacies and hospitals, and in light warehouse environments — this ergonomically designed scanner helps you increase accuracy, improve productivity, cut maintenance costs and reduce the risk of downtime.

Benefit from Innovative Features Never Before Delivered by a Single Scanner
The Symbol LS4208 delivers intuitive, productivity enhancing functionality that allows even your novice users to quickly capture data. Its innovative multi-line rastering scan pattern virtually eliminates the need for end-user training, and lets you scan all types of one-dimensional (1D) bar codes, including damaged symbols or stacked GS1 DataBar (formerly RSS) bar codes. The PDF configuration expands the decoding capabilities to include PDF417, microPDF and composite symbologies. In addition, the scanner’s 19-inch scanning range and superior motion tolerance gives users greater flexibility to rapidly and accurately capture data from a variety of items without pausing between scans, while recently added faster scanning and decoding capabilities mean employees are able to process more items more rapidly and spend less time keying in data.

Minimize Your Chances of Downtime
Designed for constant, rigorous use in retail, office and light industrial settings, the Symbol LS4208 provides you with reliability you’ll be able to depend on. Along with a 6 ft. drop spec that allows the scanner to keep on running even after dropped repeatedly to concrete, the Symbol LS4208 also offers single circuit-board construction. By eliminating the failure points commonly found with interconnect ribbon cables, this unique design feature helps to lower your total cost of ownership.

Future-Proof Your Investment
The Symbol LS4208 provides you with next generation technology today and the adaptability to meet your needs in the future. The scanner’s multi interface and universal cables enable connection to a variety of hosts, allowing you to easily update your systems. In addition, since the Symbol LS4208 is designed for the newest and emerging 1D symbologies such as GS1 DataBar (formerly RSS) bar codes, as well as PDF and other variants (PR configuration), you’ll be able to continue using the same device for all your scanning requirements, even though your requirements may change.

Protect Your Investment with Comprehensive Services and Support
Even the most durable scanners require a support plan. That’s why Motorola’s Enterprise Mobility Services cover every aspect of your Symbol LS4208 — to ensure all of your support needs are met.

LS4208 LS4208
  • 1D, PDF and Composite Code Scanning
    Available in both 1D only (SR) and PDF/Composite (PR) configurations to support a wide range of productivity-enhancing applications
  • Multi-Line Rastering Scan Pattern
    Improves productivity by reducing the need to rescan bar codes or key in data, resulting in shorter lines at the retail point of sale
  • Superior Motion Tolerance
    Enables end users to quickly move from one bar code to the next without hesitation
  • Wide Working Range
    Reads good quality as well as poor quality codes at similar ranges, reducing the need for the user to move the scanner back and forth
  • Checkpoint Electronic Article Surveillance (EAS)
    Offers dual functionality to improve return on investment and save critical counter space
  • Durable Construction and Patented, Single Circuitboard Design Able to Withstand Multiple 6-foot (1.8m) Drops to Concrete
    Lowers the total cost of ownership by protecting against downtime from accidental drops
  • Plug-and-Play Setup, Intuitive Scanning
    Enables rapid deployment and immediate use without formal training, allowing new and experienced employees to immediately help improve operational efficiency
  • Remote Management-Ready
    Reduces total cost of ownership by enabling remote, network-based device management
  • Optional Hands-Free Intellistand
    Enables presentation scanning and automatic switching between handsfree and handheld modes
  • GS1 DataBar (Formerly RSS) Bar Code Support
    Supports the latest symbologies to future-proof your investment
LS4208 LS4208
Physical Characteristics
Dimensions (H x L x W): 6.7 x 3.7 x 2.7in. (17 x 9.3 x 6.8cm)
Weight: Approximately 6.4oz (181g)
Voltage and current: 5VDC ± 10%@ 140mA
(Stand by: <35mA)
Color: Cash Register White or Twilight Black
Performance Characteristics
Light Source 650nm laser diode
Motor frequency: 50Hz
Decode rate: 200 decodes per second
Roll ± 35°
Pitch ± 60°
Yaw ± 60°
Print Contrast: 25% minimum reflectance
Motion Tolerances: Horizontal velocity: 200in./second (508cm/s)
Vertical velocity: 200in./second (508cm)
Angular velocity: 200in./second (508cm/s)
Decode Capability: UPC/EAN and with supplementals, Code
39, Code 39 Full ASCII, Tri-optic Code 39,
GS1 DataBar (formerly RSS) Variants,
UCC/EAN 128, Code 128, Code 128 Full
ASCII, Code 93, Codabar (NW1),
Interleaved 2 of 5, Discrete 2 of 5
MSI, Codell, IATA, Bookland EAN, Code 32
Interfaces Supported: On-board multiple interface with: RS-232C
(Standard, Nixdorf, ICL, & Fujitsu);
IBM 468x/469x; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation. In addition,
Synapse Adaptive Connectivity allows
for connectivity to all of the above, plus many non-standard interfaces

Learn more about the symbol LS4208-SBZK0100ZR


Form Factor
Scan Engine


Included Cables
PS/2 Keyboard Wedge Cable Included
Interfaces Supported
USB, RS-232, Keyboard Wedge, IBM 468x/469x, Laser / Wand Emulation, Synaps

Scan Performance

Light Source
650 nm visible laser diode
±60 degree
±35 degree
±60 degree
Scan Speed
200 decodes per second
Decoding Capability
UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS Variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32


Twilight Black
6.7" x 2.7" x 3.7"


Color: Twilight Black. RoHS
General Purpose
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by's Standard Return Policy.
