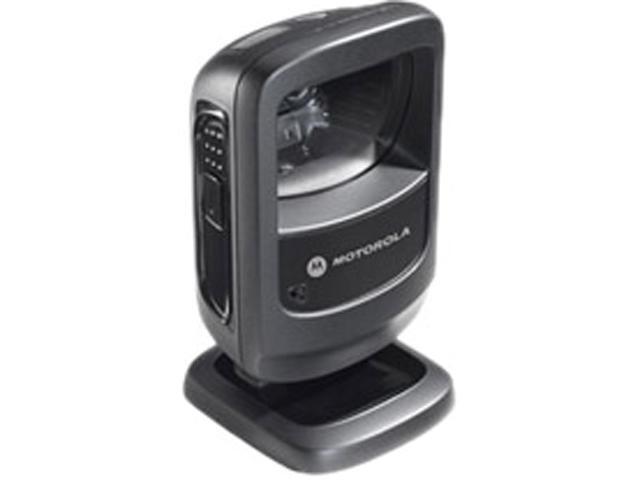

DS9208
Newegg.com - A great place to buy computers, computer parts, electronics, software, accessories, and DVDs online. With great prices, fast shipping, and top-rated customer service - once you know, you Newegg.
If you are reading this message, Please click this link to reload this page.(Do not use your browser's "Refresh" button). Please email us if you're running the latest version of your browser and you still see this message.
Newegg.com - Computer Parts, Laptops, Electronics, HDTVs, Digital Cameras and More!

Loading...

| Physical Characteristics | |
| Dimensions (H x W x D): | 5.512 x 3.232 x 3.150 inches (14.0 x 8.21 x 8.0cm) |
| Weight: | 9.5oz (269g) |
| Voltage and Current | Idle: 5VDC ± 10% @ 150ma average Scanning: 5VDC ± 10% @ 230ma average |
| Color: | Midnight Black / White |
| Performance Characteristics | |
| Light Source: | Aiming pattern: single dot, 625nm LED Illumination: 630nm LEDs |
| Imager Field of View | 46° Horizontal x 29.5° Vertical |
| Print contrast: | 25% minimum reflective difference |
| Roll | 360° |
| Pitch | ± 65° |
| Yaw | ± 60° |
| Graphics Format Support |
Images can be exported as Bitmap, JPEG or TIFF |
| Image Transfer Speed | USB 2.0: Up to 12Mbps RS-232: Up to 115Kbps |
| Image Transfer Time | Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb |
| Image Quality | 120ppi on a 4 x 6in. (10.2 x 15.2cm) document @ 4.7in. (11.9cm) |
| Interfaces supported: | USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge |
