Item#: N82E16842111015

Tripp Lite SMART500RT1U Smart Pro 500 VA 300 Watts 1U Rackmount 7 Outlets Line Interactive UPS

  • 500 VA 300 Watts
  • 7 Outlets
  • RS-232, USB
  • Pin It
  • Email this page
ICON Loading...

PRODUCT DESCRIPTION

Requiring only one rack space (1U) in a standard rack enclosure, Tripp Lite's SMART500RT1U protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced Automatic Voltage Regulation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts. The SMART500RT1U has seven outlets (six UPS-supported, one surge-only) including one outlet that is individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems. The SMART500RT1U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment insurance (USA/Canada only) and a 2-year product warranty.

Ideal for Protection of Data Center/Network Rackmount Equipment

The SMART500RT1U provides advanced Automatic Voltage Regulation, reliable battery backup and comprehensive power management capability in just 1U of rack space. Featuring seven outlets and USB/DB9 ports, the SMART500RT1U offers a complete power protection solution for servers, storage devices and telecom equipment.

Ideal for Protection of Data Center/Network Rackmount Equipment

Advanced Automatic Voltage Regulation (AVR)

Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts, and overvoltages. The SMART500RT1U corrects brownouts as low as 90V to a nominal 120V, providing safe, computer-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.

Reliable Battery Backup

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART500RT1U features a large internal battery that provides three minutes of battery support for a full load (300 watts) and eight minutes for a half load (150 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

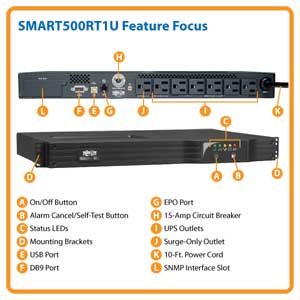

Feature Focus

Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART500RT1U features a 567-joule surge suppression rating to protect connected components and data from the harmful effects of power surges.

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART500RT1U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

The SMART500RT1U features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software, these communication ports provide comprehensive network power monitoring and control. Capabilities include automatic unattended shutdown, UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART500RT1U also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

Controllable Outlet

The SMART500RT1U includes one outlet that is individually controllable via a software interface to reboot locked-up equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment.

Versatile Installation Options

The SMART500RT1U requires only 1U of rack space in a standard 4-post rack enclosure. It can also be installed in a 2-post rack or in an upright tower configuration (mounting accessories included).

Ultimate Peace of Mind

The SMART500RT1U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 2-year product warranty.

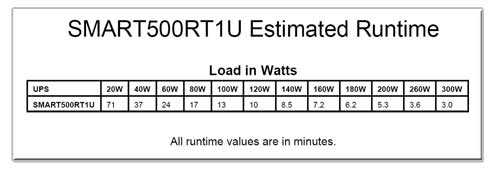

SMART500RT1U Runtime Chart
What’s in the Box

What's in the Box

  • • SMART500RT1U UPS System
  • • Mounting Hardware
  • • Cabling for USB & DB9 Monitoring and EPO Switching
  • • PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
  • • Instruction Manual
Tripp Lite
SmartPro® UPS Systems
SMART500RT1U
SMART500RT1U
SMART750RM1U
SMART750RM1U
SMART1000RM2U
SMART1000RM2U
SMART1500RM2U
SMART1500RM2U
AC Input 120V 120V 120V 120V
Rack Space 1U 1U 2U 2U
VA/Watts 500/300 750/600 1000/800 1500/1000
Outlets 6 x 5-15R 6 x 5-15R 6 x 5-15R 8 x 5-15R
Half-Load Runtime 8 min. 13 min. 14 min. 19 min.
Communication Ports USB; DB9 USB; DB9 USB; DB9 USB; DB9
Warranty 2-year, 3-year with registration 2-year, 3-year with registration 2-year, 3-year with registration 2-year, 3-year with registration
  • newegg Ideal for Protection of Data Center/Network Rackmount Equipment The SMART500RT1U provides advanced Automatic Voltage Regulation, reliable battery backup and comprehensive power management capability in just 1U of rack space. Featuring 7 outlets and USB/DB9 ports, the SMART500RT1U offers a complete power protection solution for servers, storage devices and telecom equipment.
  • newegg Advanced Automatic Voltage Regulation (AVR) Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts, and overvoltages. The SMART500RT1U corrects brownouts as low as 90V to a nominal 120V, providing safe, computer-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.
  • newegg Reliable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART500RT1U features a large internal battery that provides 3 min. of battery support for a full load (300 watts) and 8 min. for a half-load (150 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.
  • newegg USB/DB9 Ports, SNMP Capability and Included PowerAlert Software The SMART500RT1U features a USB port and a DB9 port (cables included). Used with Tripp Lite’s included PowerAlert software, these communication ports provide comprehensive network power monitoring and control. Capabilities include automatic unattended shutdown, UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART500RT1U also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.
  • newegg Controllable Outlet The SMART500RT1U includes one outlet that is individually controllable via a software interface to reboot locked-up equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment.

Learn more about the Tripp Lite SMART500RT1U

Model

Brand
TRIPP LITE
Model
SMART500RT1U

Input

Input Voltage Range
120 V
Input Frequency
60Hz +/- 3 Hz

Output

VA Rating
500 VA
Watts
300 Watts
Output Voltage
120Vac +/- 5%
Outlets
7

Battery

Battery Run Time
17 minutes (250VA)
Battery Recharge Time
2-4 hours to 90%

Spec

Interface Port
RS-232, USB
Management Software
YES
Approvals
cUL, FCC, NOM, UL

Surge Protection

Data Line Protection
RJ-11 Modem/Fax/DSL protection
Surge Energy Rating
480 joules

Physical Spec

Rackmountable
Yes
Weight
22 lbs
Dimensions
1.75" x 17.5" x 11.75"

Features

Features
EPO port: Includes RJ11 EPO (emergency power off) port and cable
TVSS grounding: Includes back panel grounding point with thumbscrew for data line surge suppressors and other network accessories requiring a safe grounding point
Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure

Packaging

Package Contents
SMART500RT1U UPS
RJ11 Cable
Driver Disk
USB Cable
RS-232 Cable
User Manual
Kits
Screws

Manufacturer Warranty

Parts
3 years limited

Quick Info

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 0 day


Customer Reviews of the Tripp Lite SMART500RT1U

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 2/24/2012 10:39:39 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year

1 out of 5 eggsDenial issues

Pros: This did provide power and automatic shutdown through some power outages over about two years.

Cons: It failed after a less than 1 minute outage, with only one server hooked up to it. The kicker is that even after failing, with no power coming out of any of the outlets, it continued to claim that it was doing great. The breaker was not thrown, and the unit was still "on". I plugged the server into the wall, left the serial cable connected and checked logs, etc. Everything A-OK, it said. Passing self-tests.

Other Thoughts: I would gladly replace the battery if it told me there was a problem. I suspect that *was* the problem. But the unit couldn't tell me that. If you cannot trust the unit's evaluation of its own battery, what can you trust?

Manufacturer Response:

Thank you for your review. Please call Tripp Lite’s Chicago-based Tech Support Team at 773-869-1234 as there could be several reasons why the unit didn’t hold the load during the power outage. Tripp Lite Tech Support would be glad to conduct troubleshooting on the unit and they can also determine if the PowerAlert software has the correct settings in place to provide correct status of the battery. Thank you.

Did you find this review helpful? Yes No

  • datapharmer
  • 5/16/2011 12:14:40 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

3 out of 5 eggsWell it isn't too expensive...

Pros: It works. Simply put it held a load when tested. I haven't tested it with the generator running as another poster said that could be a problem. Next time we run our tests I'll post again if it fails to switch back.

It is about the cheapest rack mountable UPS on the market. If you expect to get what you pay for you will be satisfied.

Cons: Really not network manageable at all. It is great they include a switched outlet, but without any means of managing it the feature is worthless. The add-on card is extremely over priced. Just give me a basic ethernet connection so I can monitor the current status, load, and control the switched outlet - anyone who really needs the snmp and EPO will be buying a more expensive unit anyhow. It would be nice to have some sort of limited management for smaller network setups where we don't have to run a usb cable to the thing.

OSX support is limited to network management (no usb), so even if you do install the software and hook it up you are out of luck unless you run windows or feel comfortable running blobs on fedora or suse. I haven't hooked a pc in the switch room to even see if there is a means of using the switchable outlet without the add-on card, but wouldn't be surprised it there isn't; there is no reference to it in the manual anywhere.

Other Thoughts: A switchable outlet is worthless with no means to control it...

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 11/17/2008 7:19:09 AM
  • Tech Level: Somewhat High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Great price on 300 Watt 1 RU unit. I have 6, all work well.

Cons: Not really a con but it's only 300 watts. It can be overloaded but then again, it works within its design parameters perfectly.

1 out of 1 people found this review helpful. Did you? Yes No

  • Nickw
  • 11/5/2008 4:02:15 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsGreat UPS

Pros: Great rack mountable UPS. Easy to install and maintain. Tested with 10% load and it lasted just over 3 hours.

Cons: I wish it included the web card. Webcard is way overpriced for not having any advanced features

Other Thoughts: Would purchase another

Did you find this review helpful? Yes No

  • ifixit
  • 10/26/2007 1:40:20 AM
  • Tech Level: High
  • Ownership: more than 1 year

5 out of 5 eggsSmall, light, rack-mountable

Pros: Mounts easily in short-depth racks, making it fit in nicely with network switches or audio gear. Cheap.

Cons: No network support. Unless there is a PC nearby, forget about monitoring this UPS.

Other Thoughts: At writing, have had one of these mounted on a wall, 20 feet off the floor of a plastics factory for about 2 years, powering some small network hardware.

It continues to work fine,

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 12/13/2006 7:47:05 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsBuy something else

Pros: Low cost

Cons: For those who have a backup generator this UPS does not have any kind of sensitivity setting at all. Which means it will NOT cycle onto generator power unless it's perfect.

Other Thoughts: I bought this to power my switches, bad idea. They crashed after this UPS would not kick over to the generator power.

1 out of 5 people found this review helpful. Did you? Yes No
