Tripp Lite SMART1500RM2U 1500VA 1350W UPS Smart Rackmount AVR LCD 120V USB DB9 SNMP 2URM, 8 Outlets

1500 VA 1350 Watts
8 Outlets
RS-232, USB

PRODUCT DESCRIPTION

Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SMART1500RM2U protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced automatic voltage regulation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts. The SMART1500RM2U has eight outlets arranged in two load banks that are individually controllable to reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems. The SMART1500RM2U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment insurance (USA/Canada only) and a 2-year product warranty.

Ideal for Protection of Data Center/Network Rackmount Equipment

The SMART1500RM2U provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in just 2U of rack space. Featuring eight outlets and USB/DB9 ports, the SMART1500RM2U offers a complete power protection solution for protection for servers, storage devices and telecom equipment.

Advanced Automatic Voltage Regulation (AVR)

Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts, and overvoltages. The SMART1500RM2U corrects brownouts as low as from 83V and overvoltages as high as 147V to a nominal 120V, providing safe, computer-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.

Reliable Battery Backup

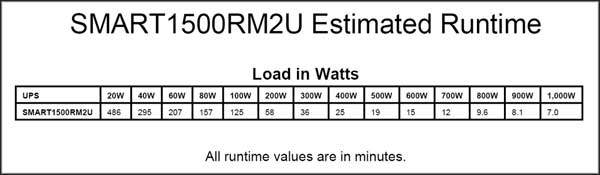

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART1500RM2U features a large internal battery that provides seven minutes of battery support for a full load (1000 watts) and 19 minutes for a half load (500 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART1500RM2U features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges.

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART1500RM2U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

The SMART1500RM2U features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART1500RM2U also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

Controllable Load Banks

The SMART1500RM2U's eight outlets are arranged in two load banks that are individually controllable via a software interface to reboot locked-up equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment.

Versatile Installation Options

The SMART1500RM2U requires only 2U of rack space in a standard 4-post rack enclosure (mounting accessories included). It can also be installed in a 2-post rack using the optional 2POSTRMKITWM accessory, or in an upright tower configuration with the optional 2-9USTAND accessory.

Ultimate Peace of Mind

The SMART1500RM2U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 2-year product warranty. A third year is available with product registration.

What's in the Box

• SMART1500RM2U UPS System
• Mounting Hardware
• Cabling for USB & DB9 Monitoring and EPO Switching
• PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
• Instruction Manual

SmartPro® UPS Systems	SMART1500RM2U	SMART1500RMXL2UA	SMART2200RM2U	SMART3000RM2U
AC Input	120V	120V	120V	120V
Rack Space	2U	2U	2U	2U
VA/Watts	1500/1000	1500/1000	2200/1920	3000/2250
Outlets	8 x 5-15R	8 x 5-15R	4 x 5-15R; 4 x 5-15/20R	8 x 5-15/20R; 1 x L5-30R
Half-Load Runtime	19 min.	21 min.	13 min.	11 min.
Expandable Runtime	—		—
Compatible Battery Packs	—	BP36V15-2U; BP36V42-3U	—	BP48V24-2U; BP48V60RT-3U
Communication Ports	USB; DB9	USB; DB9	USB; DB9	USB; DB9
Warranty	2-year, 3-year with registration	2-year, 3-year with registration	2-year, 3-year with registration	2-year, 3-year with registration

Learn more about the Tripp Lite SMART1500RM2U

Model

Brand: TRIPP LITE

Series: SmartPro

Model: SMART1500RM2U

Input

Input Voltage Range: 120V AC

Input Connection: NEMA 5-15P

Output

VA Rating: 1500 VA

Watts: 1350 Watts

Output Voltage: LINE MODE: Sine wave line voltage 120V (-21% +8%)
BATTERY MODE: Sine wave output within 5% of 120VAC

Outlets: 8

Outlet Type: NEMA 5-15R

Battery

Battery Run Time: Full load runtime: 4.5 minutes
Half load runtime: 13 minutes

Battery Recharge Time: Less than 4.5 hours from 10% to 90%

Battery Replaceable: Hot-swappable, user replaceable batteries

Spec

Alarms: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Interface Port: USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Management Software: YES

Approvals: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

Surge Protection

Surge Energy Rating: 570 joules

Physical Spec

Rackmountable: 2U

Weight: 46.5 lbs.

Dimensions: 3.5" x 17.5" x 13.45"

Features

Features: Tripp Lite SMART1500RM2U line interactive 2U rack/tower UPS with 1500VA / 1.5kVA / 1350W capacity

Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 147V

NEMA 5-15P input plug; 6 NEMA 5-15R output receptacles, Two independently switchable output load banks

Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages

High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emissions

Internal batteries offer 13 minutes at 50% load (675W) and 4.5 minutes at 100% load (1350W)

Hot-swappable, user-replaceable internal batteries can be replaced with no disruption to connected equipment

Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information

Packaging

Package Contents: SMART1500RM2U UPS System
PowerAlert software with USB, Serial & EPO cabling
4 post rackmount installation kit
Instruction manual

Manufacturer Warranty

Parts: 3 years limited

Labor: 1 year limited
