Tripp Lite SMART3000RM2U 3000VA 2250W UPS Smart Rackmount AVR LCD 120V USB DB9 SNMP 2URM, 9 Outlets

(2) |

Write a Review

3000 VA 2250 Watts
9 Outlets
DB-9, USB

PRODUCT DESCRIPTION

Requiring only two rack spaces (2U) in a standard rack enclosure, Tripp Lite's SMART3000RM2U SmartPro® UPS System protects connected equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Featuring advanced automatic voltage regulation, it provides regulated 120V nominal output without using battery power during brownouts and overvoltages. Large internal batteries support connected equipment during blackouts, and runtime is expandable with optional external battery packs. The SMART3000RM2U features three individually controllable outlets that can reboot select equipment on demand or maximize battery runtime for mission-critical equipment. USB and DB9 communication ports support messaging of detailed UPS operational parameters and line power status. Included PowerAlert UPS monitoring and unattended shutdown software provides management support for an unlimited number of network UPS systems.

Ideal for Protection of Data Center/Network Rackmount Equipment

The SMART3000RM2U provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in just 2U of rack space. Featuring nine outlets (1 x L5-30R, 8 x 5-15/20R) and USB/DB9 ports, the SMART3000RM2U offers a complete power protection solution for protection for servers, storage devices and telecom equipment.

Advanced Automatic Voltage Regulation (AVR)

Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by brownouts (low-voltage conditions) and overvoltages. The SMART3000RM2U corrects brownouts as low as 83V and overvoltages as high as 147V to a nominal 120V, providing safe computer-grade power to all connected components without consuming backup battery power needed to support equipment through blackouts.

Controllable Load Banks

The SMART3000RM2U includes three outlets that are individually controllable via a software interface for remote reboot of locked-up equipment or load shedding to maximize battery backup time for mission-critical equipment.

Reliable Battery Backup

UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART3000RM2U features a large internal battery that provides four minutes of battery support for a full load (2250 watts) and 11 minutes for a half load (1125 watts). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. For mission-critical applications demanding continuous uptime, the fully scalable SMART3000RM2U can provide expandable runtime with optional external battery packs, sold separately.

Highly Efficient Operation Reduces BTU Output

The SMART3000RM2U features high-efficiency operation—up to 96%—that can significantly reduce a facility's energy costs by minimizing heat output, lowering cooling requirements and reducing the consumption of electricity.

Surge Suppression and EMI/RFI Line Noise Filtering

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART3000RM2U features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART3000RM2U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

USB/DB9 Ports, SNMP Capability and Included PowerAlert Software

The SMART3000RM2U features a USB port and a DB9 port (cables included). Used with Tripp Lite's included PowerAlert software these communication ports provide comprehensive network power monitoring and control. Capabilities include UPS and line power status messaging (on battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity), timed inverter shutoff after unattended shutdown, and UPS output power control for delayed or immediate reboot of connected devices. The SMART3000RM2U also accepts an optional SNMPWEBCARD accessory that enables the UPS to operate as a managed device on the network.

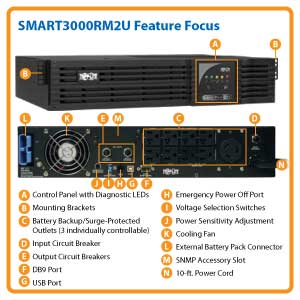

Front-Panel LED Display

The SMART3000RM2U features an array of five front-panel LEDs that show line power, battery power, AVR, overload and replace battery status.

Versatile Installation Options

The SMART3000RM2U requires only 2U of rack space in a standard 4-post rack enclosure (mounting accessories included). It can also be installed in a 2-post rack using the optional 2POSTRMKITWM accessory, or in an upright tower configuration with the optional 2-9USTAND accessory.

Ultimate Peace of Mind

The SMART3000RM2U comes with $250,000 Ultimate Lifetime Insurance coverage for connected equipment and a 2-year warranty. A third year is available with product registration.

What's in the Box

• SMART3000RM2U UPS System
• PowerAlert Software CD
• 1 x 6-ft. USB Cable
• 1 x 6-ft. DB9 Cable
• 1 x 6-ft. EPO Cable (RJ11)
• 4-Post Rackmounting Hardware

SmartPro® UPS Systems	SMART2200RM2U	SMART2600RM2U	SMART3000RM2U	SMART3000RMXL2U
AC Input	120V	120V	120V	120V
Rack Space	2U	2U	2U	2U
VA/Watts	2200/1920	2600/2100	3000/2250	3000/2880
Outlets	4 x 5-15R; 4 x 5-15/20R	4 5-15R; 4 5-15/20R; 1 L5-20R	8 x 5-15/20R; 1 x L5-30R	8 5-15/20R; 1 L5-30R
Half-Load Runtime	13 min.	11 min.	11 min.	10 min.
Expandable Runtime	—
Compatible Battery Packs	—	BP48V24-2U; BP48V60RT-3U	BP48V24-2U; BP48V60RT-3U	BP48V24-2U; BP48V60RT-3U
Communication Ports	USB; DB9	USB; DB9	USB; DB9	USB; DB9
Warranty	2-year, 3-year with registration	2-year, 3-year with registration	2-year, 3-year with registration	2-year, 3-year with registration

Ideal for Protection of Data Center/Network Equipment The SMART3000RM2U provides advanced automatic voltage regulation, reliable battery backup and comprehensive power management capability in a 2U of rack space. Includes 8 NEMA 5-15/20R and 1 L5-30R output receptacles, two independently switchable output load banks. Switched output load banks can be rebooted remotely in real time or on schedule via software interface, or shed less critical loads to extend battery runtime for the most critical equipment.
Advanced Automatic Voltage Regulation (AVR) Advanced AVR protects connected equipment from incremental hardware damage, data loss and performance problems that can be caused by low-voltage conditions, commonly known as brownouts, and overvoltages. The SMART3000RM2U corrects brownouts as low as 83V and overvoltages as high as 145V to a nominal 120V, providing safe, network-grade power to all connected components, without consuming battery power needed to support equipment through blackouts.
Reliable Battery Backup UPS battery backup keeps connected equipment operational through short power failures, and provides time to save data and perform an orderly system shutdown in case of a prolonged blackout. The SMART3000RM2U features a large internal battery that provides 10 minutes at 50% load (1125W) and 3.5 minutes at 100% load (2250W). During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed. Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit) external battery packs*. Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment. (*max output de-rates to 1600 watts with external batteries. External battery configurations require the use of Tripp Lite's External Battery Configuration Software.)
Surge Suppression and EMI/RFI Line Noise Filtering A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The SMART3000RM2U features a 570-joule surge suppression rating to protect connected components and data from the harmful effects of power surges. Various electrical and radio sources can cause disruptive line interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The SMART3000RM2U incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.
USB/DB9 Ports and Included PowerAlert Software The SMART3000RM2U features built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options for comprehensive network power monitoring and control, when used with included PowerAlert UPS monitoring software. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities.
Intuitive Status Indication Audible alarm and 5 front panel LEDs indicate system status in an easy-to-understand way.

Learn more about the Tripp Lite SMART3000RM2U

Model

Brand: TRIPP LITE

Series: SmartPro

Model: SMART3000RM2U

Input

Input Voltage Range: 120 V

Input Connection: L5-30P

Output

VA Rating: 3000 VA

Watts: 2250 Watts

Output Voltage: 120Vac +/- 5%

Outlets: 9

Outlet Type: 8 5-15/20R outlet(s); 1 L5-30R outlet(s)

Battery

Battery Run Time: Full load runtime (minutes): 3.5 min. (2250w)
Half load runtime (minutes): 10 min. (1125w)

Battery Recharge Time: Less than 4.5 hours from 10% to 90%

Spec

Alarms: Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Interface Port: DB-9, USB

Management Software: YES

Approvals: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

Physical Spec

Rackmountable: Yes

Weight: 62.8 lbs.

Dimensions: 3.5 x 17.5 x 19.5 in

Features

Features: Tripp Lite SMART3000RM2U line interactive 2U rack/tower UPS with 3000VA / 3kVA capacity (1600W maximum load with external battery packs)
Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V
NEMA L5-30P input plug; 8 NEMA 5-15/20R and 1 L5-30R output receptacles, Two independently switchable output load banks
Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
High 98% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions

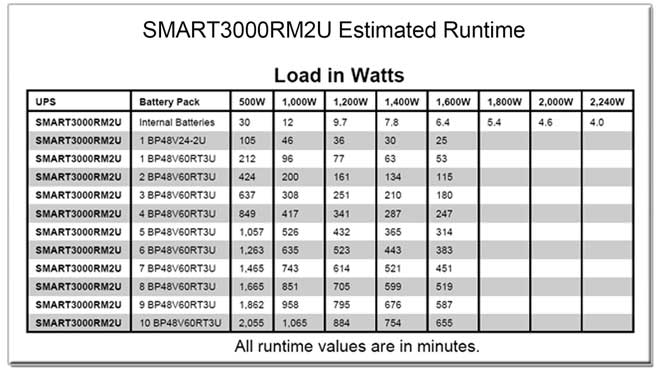

Internal batteries offer 10 minutes at 50% load (1125W) and 3.5 minutes at 100% load (2250W)
Extended runtime is available with optional BP48V24-2U (limit 1) OR BP48V60RT3U (no limit) external battery packs (max output de-rates to 1600 watts with external batteries)
External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment
Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
LCD interface also supports a number of advanced user setup and operating preferences
Built-in USB, RS-232
HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

Packaging

Package Contents: SMART3000RM2U UPS System
PowerAlert Software with USB, Serial & EPO cabling
4-post rackmount installation kit
Instruction manual

Manufacturer Warranty

Parts: 2 years limited

Quick Info

Warranty

Limited Warranty period (parts): 2 years
Limited Warranty period (labor): 0 day

Manufacturer Contact Info
