Tripp Lite SR2POST25 25U 2-Post SmartRack Open Frame Rack

Black
Aluminum
800 lbs. Weight Capacity
2 Post Open Frame Rack

SmartRack 2 post open frame rack are ideal for space constrained or cost conscious 19-inch rack mount application. Multiple unit can be bolted together side by side and Self squaring design Easy to assembly

PRODUCT DESCRIPTION

Do you need an economical rackmount solution for a secure network or data center environment? Tripp Lite has the solution. Our SR2POST25 25U Open Frame Rack is the cost-conscious way to accommodate your growing rackmount space requirements, particularly in areas where space is limited. The SR2POST25's heavy-duty construction is backed by a 5-year warranty.

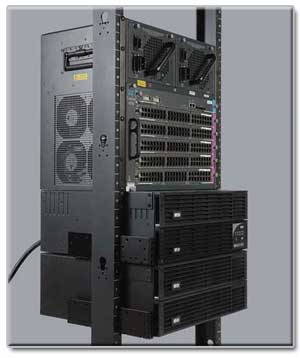

Economical Rackmount Solution

The SR2POST25 is ideal for growing businesses that require an economical rackmount solution. It provides 25U of rack space and can accommodate up to 800 lbs of equipment. The SR2POST25 features heavy-duty aluminum construction, easy assembly and a self-squaring design with provision for bolt-down. For high-density applications, multiple units can be bolted together side by side.

Broad Compatibility

The SR2POST25 is compatible with all standard 19-in. rack equipment that supports 2-post mounting. Round threaded and numbered mounting holes simplify equipment installation. The open design provides easy access to equipment and cabling.

Toolless Mounting

The SR2POST25 features convenient toolless button-hole mounting for vertical PDUs and cable managers.

Optimized for Secure Environments

The SR2POST25 is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It conserves valuable floor space, helps IT managers to better organize their equipment array, and simplifies access for equipment installation and servicing.

Technical Specifications

Rack spaces: 25
Load capacity: 800 lbs.
Height: 49.0 in.
Width: 20.3 in.
Depth: 4.75 in.
Weight: 23 lbs.
Material of construction: Heavy-duty aluminum
Warranty: 5 years

What's in the Box

SR2POST25
(28) 12-24 screws
(28) washers
Installation hardware
Cable management hooks
Owner's Manual

Open Frame Racks	SR2POST25	SR2POST	SR4POST25
Type	2-Post	2-Post	4-Post
Rack Space	25U	45U	25U
Weight Capacity	800 lbs	800 lbs	1000 lbs
Warranty	5-year	5-year	5-year

Learn more about the Tripp Lite SR2POST25

General

Brand: Tripp Lite

Model: SR2POST25

Specification

Type: 2 Post Open Frame Rack

Rack Units: 25U

Color: Black

Material: Aluminum

Weight Capacity: 800 lbs.

Dimension & Weight

Dimension: 49.0" x 20.3" x 4.75" (14" total depth with support base)

Weight: 23 lbs.

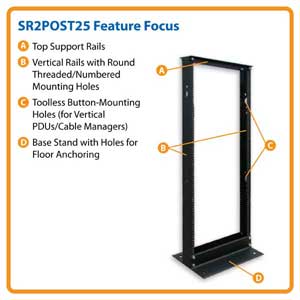

Features

Features: 25U 2-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment.

Installed whole system maximum rack depth (inches): 4.8

Black aluminum with round threaded and numbered mounting holes.

Toolless button holes to accept PDUs or cable managers.

Certifications:
NOM (Mexico): Tested to NOM (Mexico)
Approvals: EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS

Quick Info

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 0 day

Manufacturer Contact Info
