Tripp Lite SR4POST13 13U 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment

4 Post Open Frame Rack

SmartRack 4-post open frame racks are ideal for cost conscious 19 inch rack mount applications. Multiple units can be bolted together side by side.

PRODUCT DESCRIPTION

Do you need an economical rackmount solution for a secure network or data center environment? Tripp Lite's SR4POST13 13U Open Frame Rack is the cost-conscious way to accommodate your growing rackmount space requirements. For applications where a lockable enclosure is not required, this 4-post open frame rack offers a convenient way to organize equipment and cabling. With toolless mounting, the SR4POST13 provides easy integration for PDUs and cable managers for a seamless application. Multiple units can be bolted together side by side for expandable rack capacity. The SR4POST13's heavy-duty construction is backed by a 5-year warranty.

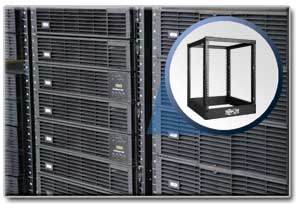

Economical Solution for Current and Future Needs

The SR4POST13 is ideal for growing businesses that require an economical rackmount solution. It provides 13U of rack space and can accommodate up to 1000 lbs. of equipment. The SR4POST13 features heavy-duty steel construction, easy assembly and a self-squaring design with provision for bolt-down. For high-density applications, multiple units can be bolted together side by side.

Broad Compatibility

The SR4POST13 is compatible with all standard 19-in. rack equipment that supports 4-post mounting. Mounting depth is adjustable from 22 to 39 inches. The square mounting holes are numbered to simplify equipment installation. The open design provides easy access to equipment and cabling.

Toolless Mounting

The SR4POST13 features convenient toolless button-hole mounting for vertical PDUs and cable managers.

Optimized for Secure Environments

The SR4POST13 is an ideal solution for secure IT environments and other applications not requiring a lockable enclosure. It helps IT managers to better organize their equipment array while simplifying access for equipment installation and servicing.

Technical Specifications

Rack spaces: 13
Load capacity: 1000 lbs.
Height: 28.0 in.
Width: 20.20 in.
Depth: 22.0-39.0 in.
Weight: 39 lbs.
Material of construction: Steel
Warranty: 5 years

What's in the Box

SR4POST13
Installation hardware
(16) M6 Cagenuts, Screws, Washers
Cable Management Hooks
Owner's Manual with Warranty Information

Open Frame Racks	SR4POST13	SR4POST25	SR4POST
Type	4-Post	4-Post	4-Post
Rack Space	13U	25U	45U
Weight Capacity	1000 lbs	1000 lbs	1000 lbs
Warranty	5-year	5-year	5-year

Learn more about the Tripp Lite SR4POST13

General

Brand: Tripp Lite

Model: SR4POST13

Specification

Type: 4 Post Open Frame Rack

Rack Units: 13U

Dimension & Weight

Dimension: 28.0" x 20.2" x 34.3"

Weight: 43.0 lbs.

Features

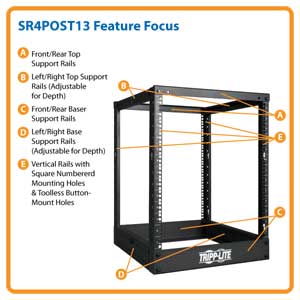

Features: Black steel with square, numbered mounting holes
Toolless button holes to accept PDUs or cable managers

Quick Info

Warranty

Limited Warranty period (parts): 5 years
Limited Warranty period (labor): 0 day
