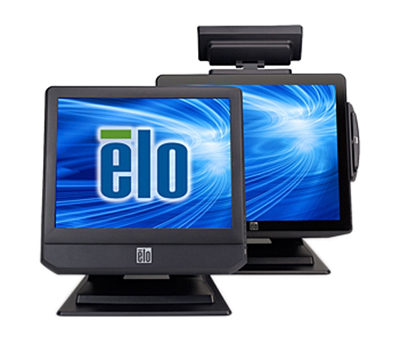

Elo Touch Solutions E136113 B2 Rev.B 17-inch All-in-One Desktop Touch Computer

  • Fanless Intel 1.86GHz Atom CPU
  • 17-inch AccuTouch Touch Screen Monitor
  • Windows XP Pro

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
B-Series B2

B-Series B2 Rev.B Fan-less All-in-One Touchcomputers

B-Series B2

The Elo Touch Solutions B-Series B2 Rev.B models provide a compact, configurable, ruggedized touchcomputer in two screen sizes: 15-inch and 17-inch. These models are available with a choice of industry-leading Elo touch technologies: AccuTouch ("no-bezel" resistive) or iTouch Plus (zero-bezel multi-touch surface acoustic wave). The B-Series B2 models are fan-less – well-suited for environments where noise may be an issue – and can meet the diverse needs of a wide variety of point-of-sale (POS), point-of-information (POI), and point-of-service venues, including retail and hospitality display units, customer loyalty systems, Internet access sites and mobile kiosks.

The B-Series touchcomputers have a compact, stylish design, with a choice of configuration and customer-installable peripheral options as well as ease of serviceability. These models feature a fan-less Intel Atom™ Dual- Core 1.86GHz N2800 processor, and support multiple customer-installable memory and storage configurations. For applications requiring even higher performance, look at the powerful, fan-cooled B3 models with the 3rd Generation Intel Core-i3, 3.3GHz i3- 3220 processor with HD2500 graphics.


B-Series B2
  • Clean and neat with only a single wire for power required in many applications
  • Full range of standard connectivity ports to add functionality (USB, serial, etc.)
  • Special USB ports around periphery of monitor provide the ability to integrate peripherals with no external wiring
  • Choice of high-performance processor configurations
  • Choice of industry-leading touch technologies including iTouch Plus (zero-bezel multi-touch surface acoustic wave) and AccuTouch "no-bezel" (resistive)

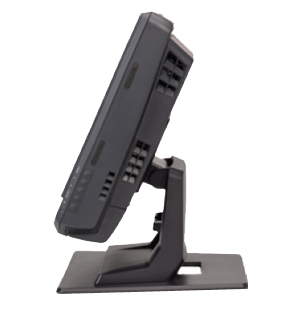

  • "Designed for touch" from the ground-up; stable stand and tilt able display with VESA mount for table-top, wall or pole mounting options
  • Field-installable peripherals
  • Excellent cable management and cables hidden from view
  • Energy Star 5.2 certified
  • Worldwide agency approvals
  • 3-year warranty plus Elo quality and reliability
B-Series B2


  • Improved aesthetics, ease of integration into any environment or application
  • Allowing for easy integration to any legacy or new install environments
  • Clean look, added security; no accidental disconnects
  • Facilitates a wide range of computing options, including low cost and high performance
  • Touch options for any application or environment; zero-bezel designs offer seamless, edge-to-edge design for a sleek appearance that is easy to clean and maintain
  • Durability to withstand the rigors of use in public environments with mounting options that complement a variety of configurations
  • Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Prevents accidental disconnection and gives a clean, professional look
  • Lower energy costs and better for the environment
  • Meets local agency approvals, as required in many countries
  • Satisfaction and peace of mind from 40 years of experience built into all of our products

Learn more about the Elo Touch Solutions B2 Rev.B


B2 Rev.B
Part Number


Intel Atom Dual-Core N2800 1.86GHz
Chip Set
Intel NM10 Express
2 GB
Hard Drive
320GB 2.5" 5400RPM Advanced Format (4K) SATA HDD3
Operating System
Windows XP Pro SP3 (32-bit)
Intel GMA 3600


Screen Size
1280 x 1024
Aspect Ratio
5:4 (Standard)
Useful Screen Area
13.3" x 10.6"
16.7 million
Brightness Control
200 nits
Response Time
Total: 5 msec
Viewing Angle
Horizontal: ± 80° or 160° total
Vertical: ± 80° or 160° total
Contrast Ratio


6 x USB 2.0 (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
2 x NATIVE RS-232 Serial (standard)
1 x LAN RJ45 (Gigabit)
1 x 2nd VGA out port
1 x 3.5mm line-in
1 x 3.5mm line-out
1 x 3.5mm mic-in
Two 2W internal speakers


Dark Gray


50,000 hours demonstrated
Real-Time Clock
Replaceable lithium-ion battery for clock


AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)
Power Consumption


Operating: (0°C to 35°C) 32°F to 95°F
Storage: (-20°C to 60°C) -4°F to 140°F
Operating: 20% to 80%
Storage: 5% to 95%


Maximum Touchcomputer Dimensions: 15.2"x 14.2" x 14.0"
Maximum Touchcomputer Dimensions With Stand: 15.2" x 14.2" x 10.5"
Maximum Touchcomputer Dimensions Without Stand: 15.2" x 13.0" x 3.8"
with stand: 19.8 lbs.
without stand: 15.0 lbs.


Serviceable internal components

Removable base with 100mm VESA mounting

Threaded holes on bottom of base for mounting

Kensington security lock
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 547 days
  • Limited Warranty period (labor): 547 days
  • Read full details
