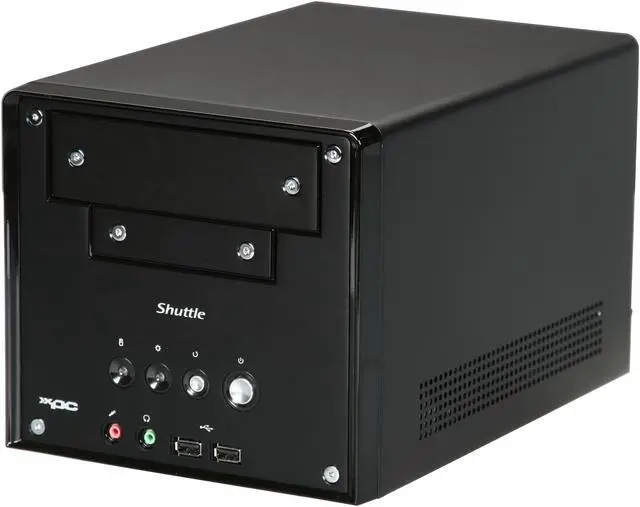

Shuttle SA76G2 AMD Socket AM2+ / AM3 AMD 760G Barebone

(47) Write a Review
  • AMD Phenom II / Phenom / Athlon 64 X2 / Athlon 64 AMD Socket AM2+ / AM3
  • AMD 760G AMD SB710
  • 2 x 240Pin DIMM DDR2 533/667/800
  • ATI Radeon 3000
Specs
Reviews (47)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Shuttle Computer SA76G2

General
Brand Shuttle
Model SA76G2
CPU Supported
CPU Type AMD Phenom II / Phenom / Athlon 64 X2 / Athlon 64
CPU Socket AMD Socket AM2+ / AM3
FSB 3 GHz HyperTransport Technology
Chipset
North Bridge AMD 760G
South Bridge AMD SB710
Memory Supported
Memory slot 2 x 240Pin DIMM
Memory Type Supported DDR2 533/667/800
Max Memory Supported 8GB
Dual Channel Memory Supported Yes
Expansion Slots
PCI Express 1 x PCI Express x16
PCI 1
Storage
IDE ATA 1 x ATA 133
Serial ATA 3 x SATA 3.0Gb/s
SATA RAID RAID 0/1
Graphics
Onboard Video ATI Radeon 3000
Audio
Onboard Audio Realtek ALC662
Channel 6-CH
Communications
First LAN MARVELL 88E8057
Max LAN Speed 10/100/1000Mbps
Extension Bays
3.5" External bays 2
5.25" External bays 1

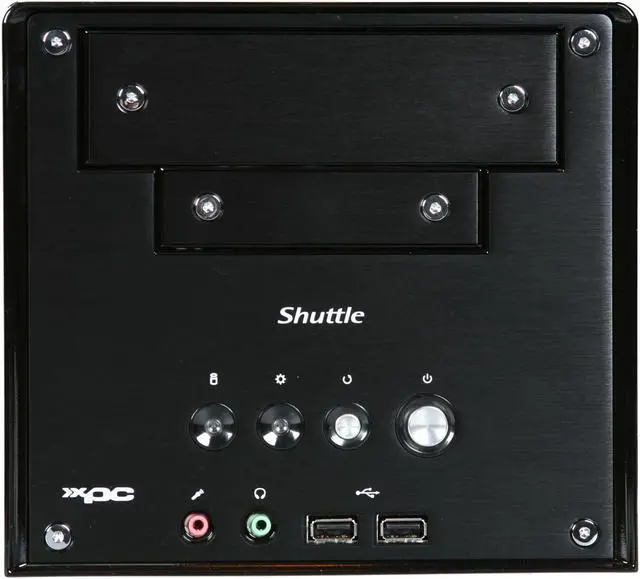

Front Panel Ports
Front USB 2
Front Audio Ports 2 jacks

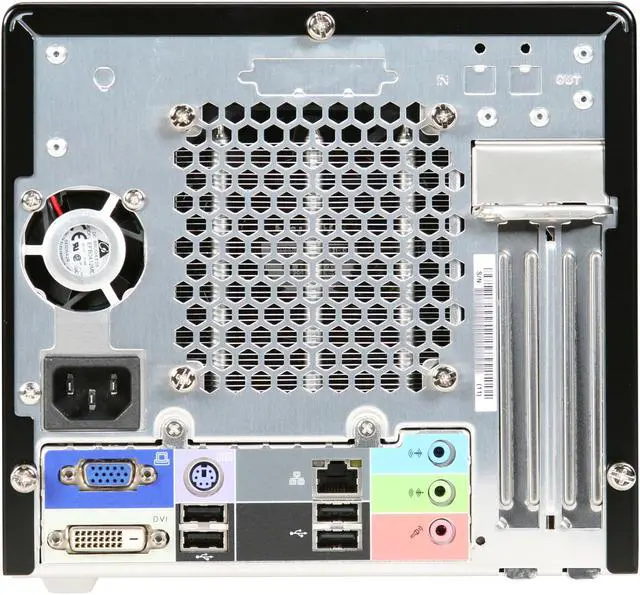

Back Panel Ports
PS/2 1
VGA 1 x D-Sub + 1 x DVI
Rear USB 4
RJ45 1
Rear Audio Ports 3 jacks

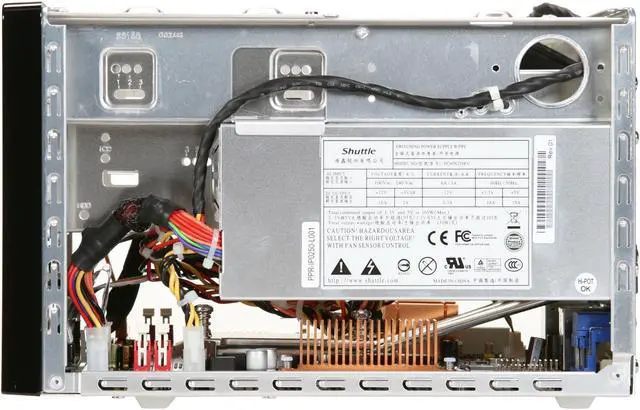

Power Supply
Power Supply 250W
Physical SPEC
Dimensions 11.81" x 7.87" x 7.28"
Additional Information
Date First Available June 08, 2009
