Item#: N82E16856101152

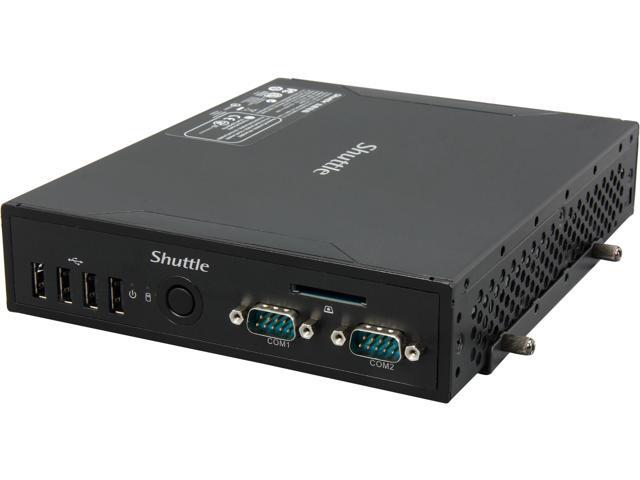

Shuttle DS437 Fanless Slim PC Barebone With Inbuilt Intel Celeron Processor 1037U

  • Intel Celeron 1037U, Dual Core, 1.8 GHz
  • Intel HD Graphics Integrated by CPU
  • 2 x 204Pin

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews


Learn more about the Shuttle Computer DS437

General

|
Brand
Shuttle
Model
DS437
Color
Black

CPU Supported

|
CPU Type
Intel Celeron 1037U, Dual Core, 1.8 GHz

Chipset

|
North Bridge
Intel NM70

Memory Supported

|
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1600/1333
Max Memory Supported
16GB
Dual Channel Memory Supported
Yes

Expansion Slots

|
Other
1 x the half size slot is occupied with a WLAN module
2 x the full size slot supports PCIe 2.0, SATA 3G and USB 2.0

Storage

|
Serial ATA
1 x SATA 6.0Gb/s

Graphics

|
Onboard Video
Intel HD Graphics Integrated by CPU

Audio

|
Onboard Audio
Realtek ALC662
Channel
5.1 Channel

Communications

|
LAN
Realtek 8111G
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11 b/g/n

Extension Bays

|
2.5" Internal Bays
1

Front Panel Ports

|
Front USB
4 x USB 2.0
Card Reader
Supports SD, SDHC, SDXC
Other Front Ports
2 x RS232

Back Panel Ports

|
HDMI
1
VGA
1 x DVI-I
Rear USB
2 x USB 3.0
RJ45
2
Rear Audio Ports
2 jacks
Other Rear Ports
1 x Pin connector for external power or CMOS button or 5V DC voltage supply
1 x DC connector for external power adapter

Power Supply

|
Input
100~240 V AC, 50/60 Hz, max. 1.6 A
Power Supply
19V DC, max. 3.42 A, max. 65 W

Physical SPEC

|
Dimensions
7.87" x 6.50" x 1.56"
Weight
3.15lbs

Features

|
Features
Robust, Stylish and Extremely Small

Ease of installation thanks to bay covers

Intel Core Processor Architecture

No fan noise

Great Connectivity

Dual View Technology with HDMI and DVI

Dual Gigabit LAN Network

Two serial ports

Expansion slots for Mini-PCI-Express cards

VESA mount

External power button by separate remote line

Power on after Power fail

Kensington Lock
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Customer Reviews of the Shuttle Computer DS437

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Michael K.
  • 3/18/2015 4:56:20 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsShuttle should change to a better Ethernet interface chipset

Pros: - Fanless for dustless and noiseless operation
- easy SSD and memory installation
- Sturdy construction
- True small print
- low power consumption, ideal for 24/7 operation

Cons: - No Link and Activity LEDs on the LAN ports to indicate the status of Ethernet connection
- LAN ports not compatible with IPCop Linux

Other Thoughts: I bought it to use it as an IPCop firewall/router (installed Ipcop 2.19 version, GNU/Linux 3.4-3). During the setup I can see the dual Eth0 and Eth1. One Ethernet port is to connect to my ISP modem and the other for my internal network. The Ethernet connected to my ISP cannot get an IP address from the modem and does not transmit or receive any packet. Even setting it on a static IP address does not make a difference. The Ethernet connected to my internal network does not assign any IP to any device on my internal network. The firewall is also the DHCP server of my internal network. I exchanged many emails with Shuttle support team, got them to RMA and swap the box for another one but same thing. I downloaded the latest Linux driver from RealTek website for the dual adapter (Realtek 8111G) and installed it per the instructions but no luck. It seems to simply be NOT compatible with IPCop 2.19. I now have to spend another $50 to get two USB Network adapters so I can use this box as an IPCop firewall. The fact that this box had a Dual Gigabit LAN Network is the main reason I purchased it in the 1st place. I am disappointed.

Did you find this review helpful? Yes No

  • Davi O.
  • 3/5/2015 11:14:13 AM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsfanless silence

Pros: 1) completely silent. not a peep.
2) easy and fast to install/upgrade memory and HD
3) solid construction
4) boots off removable storage (USB/SD)
5) low power
6) tiny size

Cons: a) CPU not upgradable. Need more cores to run more VMs
b) not designed for any standard wall/rack mounts. designed to mount to the back of monitor or stand alone. i don't have any monitors attached. stuffed in a rack. so had to build my own mounts.

Other Thoughts: i replaced an aging ATX server with this. took me about 15m to install memory and SSD, boot off a linux USB and have it running. copied a VM from old server to this and done. liked it so much i bought another to run pfsense. replaced my off-the-shelf router.

Did you find this review helpful? Yes No

  • Forshock
  • 7/23/2014 3:11:12 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsGreat little unit

Pros: Low power (<20W)
Serial Ports
USB3.0

Cons: Port layout (Would prefer all ports on one side)
Vertical stand is not snug, wobble

Other Thoughts: If you are looking for a very compact, low power unit this is it. Using these for industrial control and video NVR applications. Very easy to configure.
Wish the ports were to one side, making it easier to place inside an equipment enclosure (DIN Rail).
Can run on 12VDC! Confirmed by test and Shuttle.

Built with Intel DC3500 SSD, Mushkin 4GB DDR3, Windows 7 Pro.

2 out of 2 people found this review helpful. Did you? Yes No
