General

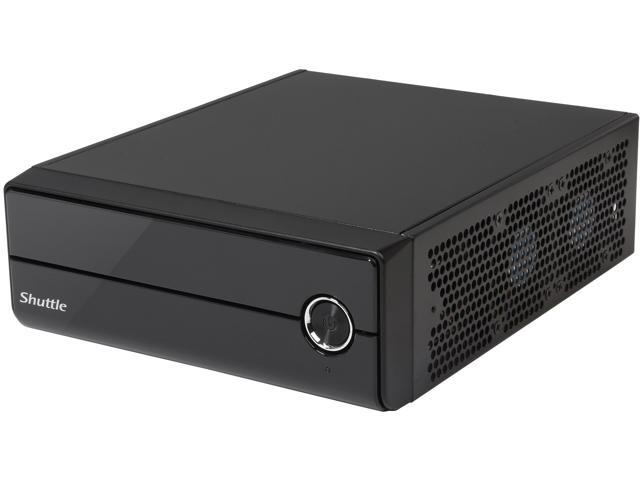

Brand

Shuttle

Model

XH81V

CPU Supported

CPU Type

Intel Core i7 / i5 / i3 / Pentium / Celeron 65W

Chipset

North Bridge

Intel H81

Memory Supported

Memory slot

2 x 204Pin SO-DIMM

Memory Type Supported

DDR3 1600/1333

Max Memory Supported

16GB

Dual Channel Memory Supported

Yes

Expansion Slots

PCI Express

1 x PCI Express x1

Other

1 x Full size Mini-PCIE socket

Storage

Serial ATA

1 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s

Audio

Channel

5.1-CH

Communications

First LAN

Realtek 8111G

Second LAN

Realtek 8111G

Max LAN Speed

Dual 10/100/1000Mbps

Extension Bays

2.5" Internal bays

1 x 2.5" HDD / SSD bay

Front Panel Ports

Front USB

2 x USB 3.0

Front Audio Ports

1 x Microphone-In; 1 x Earphone-Out

Back Panel Ports

COM

1 x RS232

HDMI

1 x HDMI

VGA

1 x DisplayPort Port

Rear USB

4 x USB 2.0

RJ45

2

Rear Audio Ports

1 x Line in port

Power Supply

Power Supply

90W Power Adapter

Physical SPEC

Dimensions

3.0 x 8.0 x 9.5 (H x W x L)

Features

Features

Interactivity through connectivity

Support Intel 4th generation Core processors

Equipped with an Intel 8 series Chipset

Supports an Optical Disk Drive (ODD)

XH81 can support up to 5 COM ports

Operable in 0-50 degree C environments

Support 4K Ultra HD

Dual-screen display Outputs

24/7 Certified

Watchdog Security Protection

Support 2x Mini-PCIe Slots

Add extra storage or an ODD
