General

Brand

Shuttle

Model

SH97R6

Color

Black

CPU Supported

CPU Type

Intel Core i7 / i5 / i3 / Pentium (LGA1150)

CPU Socket

Intel Socket LGA1150

Chipset

North Bridge

Intel H97

Memory Supported

Memory installed

No Memory

Memory slot

4 x 240Pin DIMM

Memory Type Supported

DDR3 1600/1333

Max Memory Supported

32GB

Dual Channel Memory Supported

Yes

Expansion Slots

PCI Express

1 x PCI Express x16 + 1 x PCI Express x4

Storage

Hard Drive Installed

No Hard Drive

Expansion Slots

Other

(1) Mini-PCIE (long) socket
(1) Mini-PCIE (Short) socket

Storage

Serial ATA

4 x SATA 6.0Gb/s

Communications

First LAN

Realtek 8111G

Max LAN Speed

10/100/1000Mbps

Extension Bays

3.5" Internal bays

(2) 3.5" HDD bay

5.25" External bays

(1) 5.25" ODD bay

Front Panel Ports

Front USB

(1) USB 2.0 Port
(1) USB 2.0 Port with mobile charger mobile device charger feature
(2) USB 3.0 Port

Front Audio Ports

(1) External microphone jack 1/8"
(1) External headphone jack 1/8"

Back Panel Ports

HDMI

1 x HDMI

Rear USB

(4) USB 2.0 Ports
(2) USB 3.0 Ports

Rear e-SATA Ports

1

RJ45

1

Other Rear Ports

(1) Line in jack 1/8”
(1) Line out jack 1/8”
(1) Side surrond out jack 1/8”
(1) Rear surrond out jack 1/8”
(1) Center bass out jack 1/8”
(1) CMOS clear button
(2) Display port

Power Supply

Power Supply

80 Plus 300W power supply

Physical SPEC

Dimensions

13.07(L) x 8.50(W) x 7.80 (H) inch

Features

Features

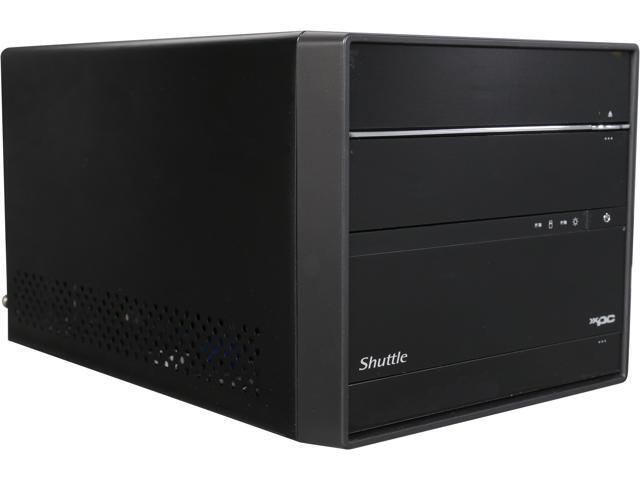

Triple-display Mini server, SH97R6

Compact, the SH97R6 packs a powerful Intel H97 chipset with support for up to Haswell and Haswell refresh 95W processors in a mere 13 liter barebones, a third the size of a traditional tower desktop PC. The SH97R6 is capable of delivering 4K video content on a single screen or Full HD resolution on up to three independent screens via built-in (2) DisplayPorts and (1) HDMI. The system is highly expandable with one PCI-E x16 slot and one PCI-E x4, allowing for installation of dual slot graphics cards, video surveillance cards, and more. Equipped with Shuttle’s proprietary ICE2 cooling engine, the SH97R6 is 80 Plus Bronze certified with a 300W power supply and a full I/O interface, designed for both home and industrial use.
