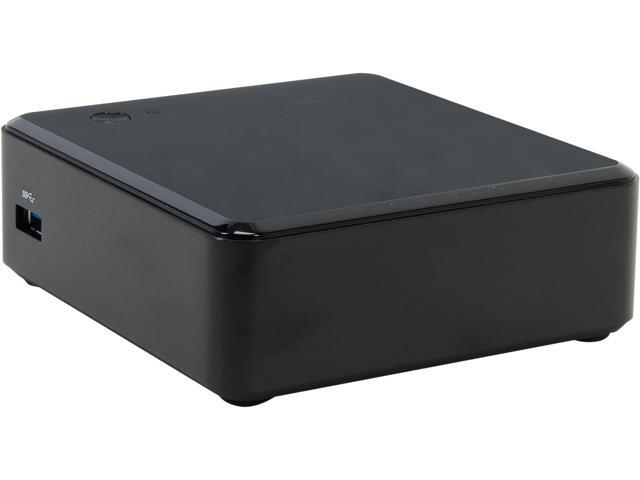

Intel NUC Kit DC53427HYE 2 x 204Pin Black Mini / Booksize Barebone System

Open Box

Sold and Shipped by Newegg

Intel Core i5-3427U 1.8GHz with Intel QS77 Express Chipset
Integrated Intel 10/100/1000 Network Connection
Dual So-DIMM sockets for memory expandability up to 16GB
Dual Mini Display ports* supporti

Overview
Specifications
Warranty & Returns
Q&A

Accessories Not Included

Open box items carry a limited return policy and should be tested thoroughly when they are received.
Be sure to read the open box return policy before you purchase one of these items.

Open box items are previously-owned products that have been returned to Newegg.com.
Please bear in mind that due to the varying quality of testing, you are taking a risk when purchasing open box products.

Learn more about the Intel NUC DC53427HYE

General

Brand: Intel

Model: NUC DC53427HYE

Color: Black

CPU Supported

CPU Type: Intel Core i5-3427U 1.8GHz

Chipset

North Bridge: Intel QS77

Memory Supported

Memory slot: 2 x 204Pin SO-DIMM

Memory Type Supported: DDR3 1600/1333

Max Memory Supported: 16GB

Dual Channel Memory Supported: Yes

Expansion Slots

PCI: 1 x full length mini-PCIe slot supporting mSATA capability
1 x half length mini-PCIe slot with dual USB 2.0 ports routed

Storage

Serial ATA: mSATA

Communications

Max LAN Speed: 10/100/1000Mbps

Front Panel Ports

Front USB: 1 x USB 3.0

Back Panel Ports

Rear USB: 2 x USB 2.0

Power Supply

Power Supply: 19V, 65W DC-DC power adapter (AC cord not included)

Physical SPEC

Dimensions: 4.59" x 4.41" x 1.55"

Features

Features: VESA mounting hole support

Antennae for WIFI and Bluetooth pre-assembled for ease of deployment

Front Panel USB 3.0

Integration Guide

Aluminum and Plastic Chassis design

Intel High Definition Audio via the HDMI v1.4a interfaces

Supports Triple Independent Display capability using HDMI 1.4a and Dual mini DisplayPort 1.1a
