General

Brand

Intel

Model

R1304WTTGS

CPU Supported

CPU Type

Intel Xeon processor E5-2600 v3 product family

CPU Socket

Socket R3 (LGA2011-3)

Memory Supported

Memory installed

No Memory

Memory slot

24 x 288Pin DIMM

Memory Type Supported

DDR4 2133/ 1866/ 1600, ECC

Max Memory Supported

3072GB

Expansion Slots

PCI Express 3.0 x16

2

PCI Express

1 x PCIe x4 Gen 3
1 x PCIe x8 Gen 3

Storage

Hard Drive Installed

No Hard Drive

Expansion Slots

Other

1 x Connector for Intel I/O Expansion Module
1 x Connector for Intel Integrated RAID Module

Storage

Serial ATA

Total # of SATA Ports: 10

SATA RAID

SW RAID 0, 1, 10, optional 5

Graphics

Onboard Video

Integrated

Communications

First LAN

10-GbE

Second LAN

10-GbE

Extension Bays

2.5" Internal bays

1

3.5" Internal bays

4

5.25" External bays

1

Power Supply

Power Supply

750W

Physical SPEC

Dimensions

16.93" x 27.95" x 1.72"

Features

Features

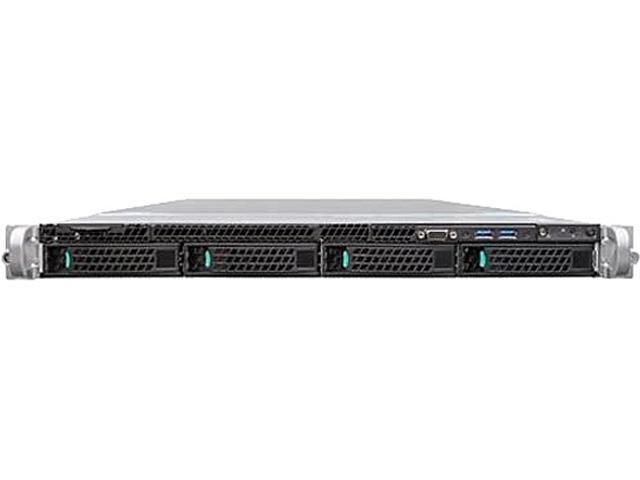

Integrated 1U system featuring Intel Server Board S2600WTT supporting four 3.5 inch hot-swap drives, dual 10-GbE LAN, 24 DIMMs, one 750W redundant-capable power supply, enterprise class I/O, with built in discrete management network interface.

Packaging

Package Contents

(1) Intel Server Board S2600WTT in a 1U chassis, (1) front I/O panel with1x VGA and 2x USB, (1) standard control panel board FXXFPANEL, (1) ODD bay for CD/DVD drive support, (4) 3.5 inch hot-swap drive carriers FXX35HSCAR, (1) backplane FR1304S3HSBP, (1) AXXCBL800HRHD cable, (2) processor heatsinks FXXCA84X106HS, (2) risers 1x16 PCIe* 3.0 FHHL slot on each F1UL16RISER, and (1) 750W AC power supply FXX750PCRPS
