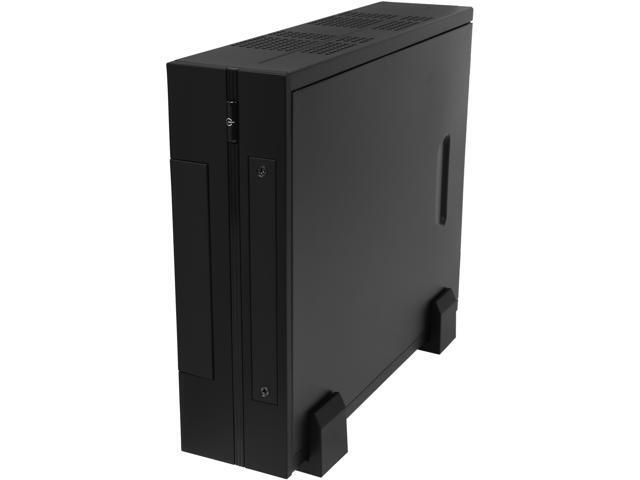

Jetway HBJC200F9N-E4IN-B Intel Celeron N2930 Soc 5 x Intel Gigabit LAN Ports HDMI & VGA Black Barebone

(4)

Write a Review

Sold and Shipped by Newegg

Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz Burst, Quad-Core, 7.5WTDP/4.5W SDP
2 x 204Pin SO-DIMM DDR3L-1333, 1.35V required (0MB incl)

Specifications
Warranty & Returns
Reviews
Q&A

Learn more about the JETWAY HBJC200F9N-E4IN-B

General

Brand: JetWay

Model: HBJC200F9N-E4IN-B

CPU Supported

CPU Type: Intel Celeron N2930 SoC, 1.83GHz - 2.16GHz Burst, Quad-Core, 7.5WTDP/4.5W SDP

Memory Supported

Memory installed: No Memory

Memory slot: 2 x 204Pin SO-DIMM

Memory Type Supported: DDR3L-1333, 1.35V required (0MB incl)

Max Memory Supported: 8GB

Expansion Slots

Other: 1 * Full-size Mini-PCI Express slot

Storage

Hard Drive Installed: No Hard Drive

Serial ATA: 1 x SATA 3.0Gb/s

Communications

First LAN: 4 * Intel 82574L gigabit LAN ports

Second LAN: 1 * Intel J211AT gigabit LAN port

Extension Bays

2.5" Internal bays: 1

Front Panel Ports

Front USB: 2 * USB 2.0 ports

Other Front Ports: Power button, Power & HDD LED

Back Panel Ports

PS/2: 1 x PS/2 keyboard port
1 x PS/2 Mouse port.

HDMI: 1 x HDMI

VGA: 1

Rear USB: 1 * USB 3.0 port
3 * USB 2.0 ports

RJ45: 5 x RJ45

Other Rear Ports: 1 * RS232 port, line-out, Antenna holes, 12V DC In jack

Physical SPEC

Dimensions: 8.27" x 10.12" x 2.56"

Features

Features: Designed for Networking Applications

Planned Product Lifecycle Through Q1'2019

Intel Celeron N2930 Quad-Core SoC Processor

Supports DDR3L-1333 up to 8GB Total Memory

(5) Intel Gigabit LAN Ports

(1) 2.5" SATA 3Gb/s Bay, (1) Slim Optical Bay

(1) mSATA Slot, (1) Mini-PCI Express Slot

Up to 2 Displays via HDMI, VGA Video Outputs

(1) USB 3.0 Port, (5) USB 2.0 Ports, (1) RS232 Port

PS/2 Keyboard Port, PS/2 Mouse Port

Wall Mount Bracket Included

Packaging

Package Contents: 60W 12V AC Adapter, US Power Cord, Manual, Driver disk, Wall mount bracket

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Manufacturer Contact Info
Manufacturer Product Page|
Website: http://www.jetwaycomputer.com/|
Support Phone: 1-510-857-0130
Support Email: tech@jetwaycomputer.com|
Support Website|
View other products from JETWAY

Customer Reviews of the JETWAY HBJC200F9N-E4IN-B

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (1) All Reviews (4) 75% (3) 25% (1) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
Gabriel I. 11/19/2015 8:19:31 AM Ownership: 4/5 Verified Owner	Rating: 5/5Used for Firewall / Router This review is from: Jetway HBJC200F9N-E4IN-B Intel Celeron N2930 Soc 5 x Intel Gigabit LAN Ports HDMI & VGA Black Barebone Pros: Using it as a PFsense/OPNsense router, with 60GB SSD and 8GB of ram. Works perfectly and massively under utilized for a four person home. Cons: The external power supply died within 90 days of purchase. You may want to consider purchasing an extra power supply if you plan to use it as router/firewall. The power supply specs are 12v 5 AMP 2.5 MM plug. Newegg item# 9SIA6T536R1201 should work. Did you find this review helpful? Thanks for the valuable feedback you provided!
Brandon R. 8/10/2015 8:27:36 AM Ownership: 3/5 Verified Owner	Rating: 5/5 This review is from: Jetway HBJC200F9N-E4IN-B Intel Celeron N2930 Soc 5 x Intel Gigabit LAN Ports HDMI & VGA Black Barebone Pros: Using this as a pfSense box and its been running flawlessly with 2 weeks and counting up time. Cons: BIOS isn't great, smart fan control doesn't allow fans to be shut completely OFF until high temperature is reached (to run fanless) and instead the lowest they can be set at is 10% Case does have some very sharp edges, be careful Did you find this review helpful? Thanks for the valuable feedback you provided!
Prentice V. 7/10/2015 9:20:02 PM Ownership: 3/5 Verified Owner	Rating: 4/5Sophos/Astaro UTM Device This review is from: Jetway HBJC200F9N-E4IN-B Intel Celeron N2930 Soc 5 x Intel Gigabit LAN Ports HDMI & VGA Black Barebone Pros: Installed a 60GB SSD and 8 GB (2x4GB) 1.35V SO-DIMM RAM. Works well so far for intended purpose. Approximately 40% CPU utilization with intrusion prevention and web site scanning operating during limited home usage. Still continuing to test and evaluate performance and cooling at this time. Cons: Unique SATA power source connector on motherboard, must be used with included married SATA data and power connector to connect a 2.5" SATA HD or SSD. The included SATA right angle connector at the motherboard blocks the second SATA port on motherboard, however there's no obvious secondary SATA power source on the motherboard either. Other Thoughts: May want to use a second 60 mm fan. Fan power connectors are available on the motherboard, but securing a second fan may require require a DIY mounting solution. 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
CLIFFORD W. 6/11/2015 12:13:32 PM Ownership: 2/5 Verified Owner	Rating: 5/5Amazing little box for Firewall / Router This review is from: Jetway HBJC200F9N-E4IN-B Intel Celeron N2930 Soc 5 x Intel Gigabit LAN Ports HDMI & VGA Black Barebone Pros: Been running pfSense as firewall / router for SOHO setup. Quick build (threw in 60gb SSD, 8 gigs of GSKIL ram) and boom...she's up and running pfsense. This bad boy actually has more throughput than the original 5 yr old PC i had running pfsesne. **NOTE: The bios on it is not perfect. by default, the case fans DO NOT run UNTIL you go into bios, and turn OFF the smart controller. Other than that, order an extra 40 x 40 x 10mm case fan w/three pin, and you should be solid, as i am Cons:* As previously mentioned, case fans do NOT run from factory. YOU MUST disable the smartcontroller in Bios to make sure your fans turn on. Not a big deal, as it claims its a fanless setup, but i'm about overkill in cooling so i don't have to fix / replace it constantly from a thermonuclear meltdown Other Thoughts: Excellent box for pfSense. Runs ~ 30 watts under a decent load (50+ LAN and WLAN devices being routed and firewalled @ once) 3 out of 3 people found this review helpful. Did you? Thanks for the valuable feedback you provided!
