General

Brand

JetWay

Model

HBJC501F9QUW-Q87-B

Color

Black

CPU Supported

CPU Type

4th Generation Intel Core i7 / i5 / i3 / Pentium Processor < 45W

CPU Socket

Socket LGA 1150 (Formerly Haswell)

Chipset

North Bridge

Intel Q87

Memory Supported

Memory installed

No Memory

Memory slot

4 x 204Pin SO-DIMM

Memory Type Supported

DDR3 1600

Max Memory Supported

16GB

Dual Channel Memory Supported

Yes

Storage

Hard Drive Installed

No Hard Drive

Expansion Slots

Other

1 x PCI-E 2.0 x4 Slot
1 x Shared mSATA/mini-PCI Express Combo slot (Full-size)
1 x Mini-PCI Express Slot (Half-size)

Storage

Serial ATA

4 x SATA 6.0Gb/s

SATA RAID

RAID 0/1/5/10/JBOD

Graphics

Onboard Video

Requires Intel Core processor with Intel HD Graphics

Audio

Onboard Audio

Realtek ALC662

Communications

First LAN

Intel i217LM PHY Gigabit LAN (iAMT 9.0)

Second LAN

Intel i211AT PCI-E Gigabit LAN

Max LAN Speed

Dual 10/100/1000Mbps

Extension Bays

2.5" Internal bays

1 x 2.5" SATA Drive Bay

Front Panel Ports

Front USB

2 x USB 2.0 ports

Other Front Ports

1 x Power Button
1 x HDD LED
6 x DB9 punchouts

Back Panel Ports

COM

3 x RS232 COM port
1 x RS232/422/485 jumperless COM port

HDMI

1 x HDMI (up to 1920 x 1080)

VGA

1 x VGA (up to 1920 x 1080)
1 x DVI-D (up to 1920 x 1080)

Rear USB

4 x USB 3.0

RJ45

2

Rear Audio Ports

1 x Line-out jack
1 x MIC-in jack

Other Rear Ports

1 x +9 ~ +24V DC-in jack (1-pin 2.5mm ID, 5.5mm OD)
2 x SMA Hole for WiFi Antenna

These connectors may not be fully usable with chassis closed, but the information is provided for customer alternative uses.
1 x Chassis Intrusion header
1 x AT/ATX mode select jumper
1 x 8-bit GPIO Header

Physical SPEC

Dimensions

2.3" x 10.24" x 8.19"

Environment

Operating Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 85°C

Features

Features

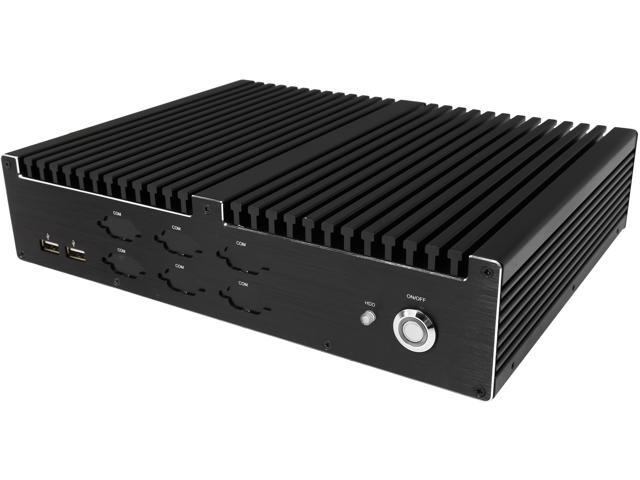

Fanless Embedded Barebone System with Planned Lifecycle Through Q1’2018

Fanless Black Aluminum Enclosure

Socket LGA1150 Supporting 4th Generation Intel Core i3, i5, i7 Processors (Haswell), Up to 45W

Supports DDR3-1600 SODIMM up to 16GB Total

Supports up to 3 Displays, HDMI, DVI, VGA

1 * 2.5" SATA3 6Gb/s Internal Drive Bay

1 * Full-size mSATA/mini-PCIE Shared Slot

1 * Half-size mini-PCIE Slot

2 * Intel Gigabit LAN, vPro & iAMT 9.0 Supported

Onboard Nuvoton TPM IC

4 * USB 3.0 Ports, 2 * USB 2.0 Ports

4 * Serial Ports (2 * RS232/422/485, 2 * RS232)

Watchdog Timer, 120W 19V AC Adapter

Includes Wall Mount and DIN Rail Clips

Only 58.5 x 208 x 260mm (2.3" x 8.19" x 10.24")

Packaging

Package Contents

Standard Accessory:
19V 120W AC-DC Adapter x1
Power Cord x1
Wall Mount Kit
DVI-to-VGA adapter x1
DIN RAIL x2
DVD Disk x1
Manual x1
WIFI antenna (with HBJC501F9QUW-Q87-B model)
