General

Brand

JetWay

Model

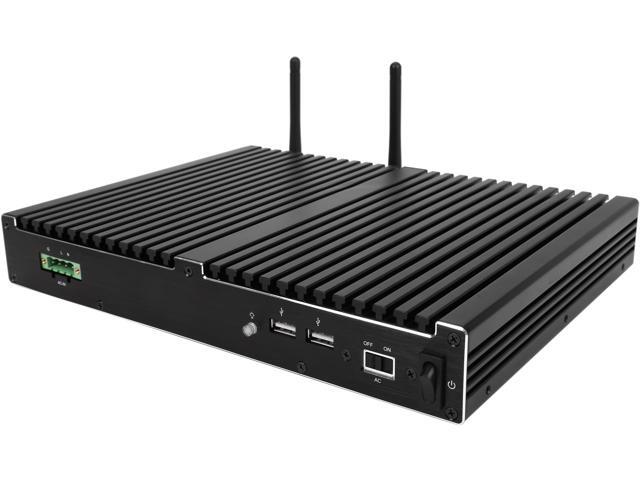

HBJC512F3DPW-1900-B

Color

Black

CPU Supported

CPU Type

Intel Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail

Memory Supported

Memory installed

4GB

Memory slot

1 x 240Pin DIMM

Memory Type Supported

DDR3L-1333

Expansion Slots

Other

1 x Mini-PCI Express slot (Half-size)

Storage

Serial ATA

1 x SATA 3.0Gb/s

Graphics

Onboard Video

Intel HD Graphics

Audio

Onboard Audio

Realtek ALC662

Communications

First LAN

2 x Intel i211-AT Gigabit LAN

Second LAN

4 x 10/100 LAN with POE, up to DC52.5V-0.48A-25W per port

Wireless LAN

802.11b/g/n

Bluetooth

Bluetooth 4.0

Max LAN Speed

Dual 10/100/1000Mbps

Extension Bays

2.5" Internal bays

1 x 2.5" HDD or SSD Drive Bay

Front Panel Ports

Front USB

2 x USB 2.0 ports

Other Front Ports

1 x Power Button
1 x AC on/off
1 x Power/HDD LED
1 x AC-in (90-240V, Phoenix Contact Terminal Block)

Back Panel Ports

VGA

1 x DVI

Rear USB

1 x USB 3.0 ports
3 x USB 2.0 ports

RJ45

6 x RJ-45 ports

Rear Audio Ports

1 x Line Out jack

Other Rear Ports

2 x SMA Connector for WiFi Antenna (for HBJC512F3DPW-1900-B)

Power Supply

Power Supply

The max output power is 150W with a wide range AC input voltage from 90Vac to 264Vac. The output power is one channel +12V, 6A, and the other channel is -52.5V, 1.65A. The power have the power factor correction, output short circuit protection, output over current protection, output overvoltage protection, PG monitor signal and over temperature protection functions, etc.

Physical SPEC

Dimensions

10.4" x 7.85" x 1.5"

Weight

12 lbs.

Environment

Operating Temperature: 0 ~ 40°C
Storage Temperature: -10 ~ 70°C

Packaging

Package Contents

Standard Accessory:
- Power Cord x1
- Wall Mount Kit
- 4 Pin Male Phoenix Contact Terminal Block x1
- DIN RAIL x2
- CD Disk x1
- Manual x1
- Screw Pack x1
- WIFI antenna (with HBJC512F3DPW-1900-B model)
