Item#: N82E16856119039

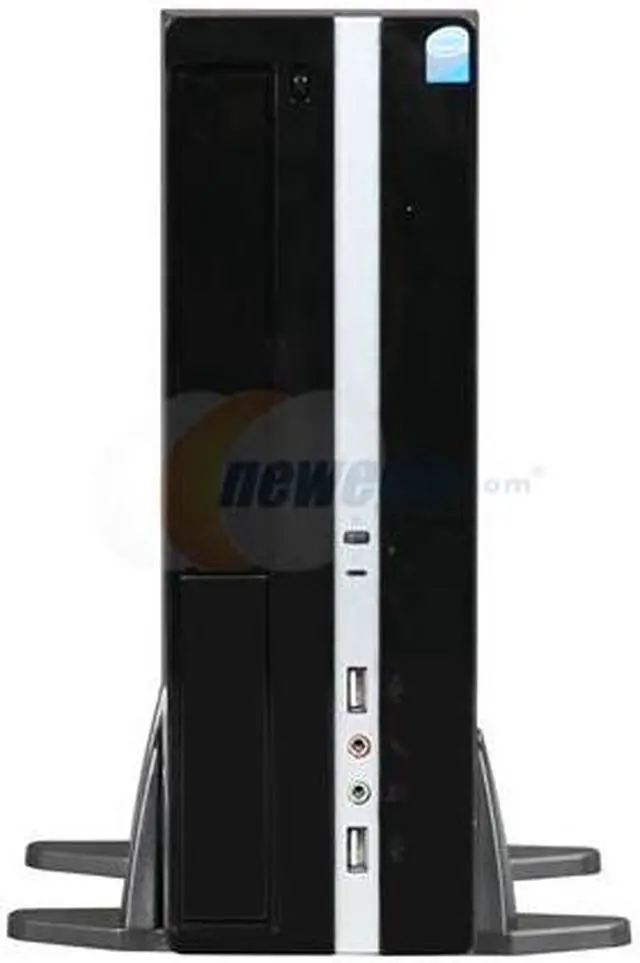

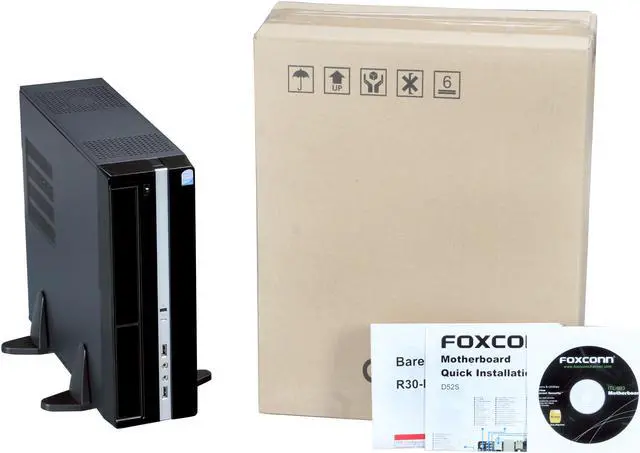

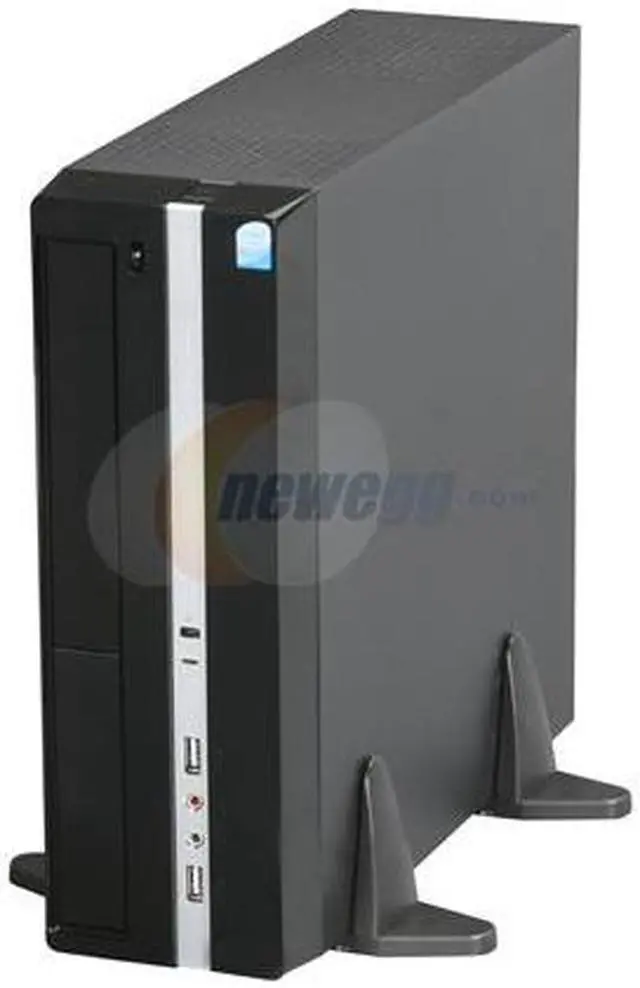

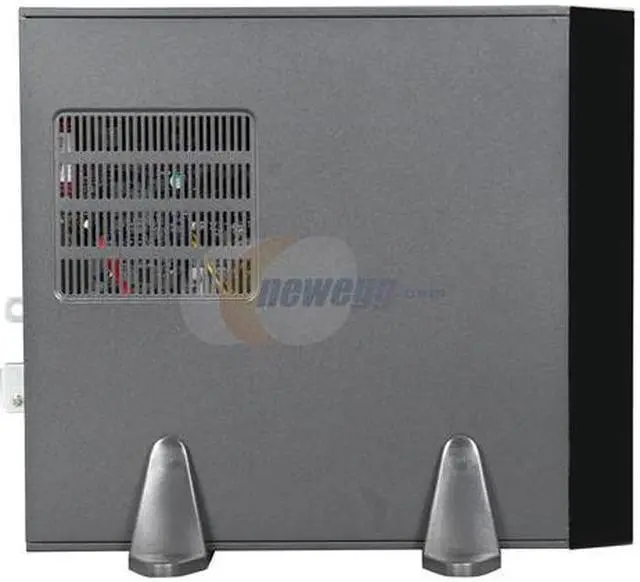

Foxconn SFF R30-D4 Intel Atom D525 (1.8GHz, Dual-core) Intel NM10 Intel GMA 3150 Barebone

  • Intel Atom D525 (1.8GHz, Dual-core)
  • Intel NM10
  • 2 x 240Pin DIMM DDR2 800/667
  • Intel GMA 3150
ICON Loading...

Learn more about the Foxconn R30-D4

General

Brand
Foxconn
Series
SFF
Model
R30-D4
Color
Black

CPU Supported

CPU Type
Intel Atom D525 (1.8GHz, Dual-core)

Chipset

North Bridge
Intel NM10

Memory Supported

Memory slot
2 x 240Pin DIMM
Memory Type Supported
DDR2 800/667
Max Memory Supported
4GB

Expansion Slots

PCI
1

Storage

Serial ATA
2 x SATA 3.0Gb/s

Graphics

Onboard Video
Intel GMA 3150

Audio

Channel
5.1-CH

Communications

Max LAN Speed
10/100/1000Mbps

Extension Bays

3.5" Internal bays
1
3.5" External bays
1 (Fit for CR)
5.25" External bays
1

Front Panel Ports

Front USB
2
Front Audio Ports
2 jacks

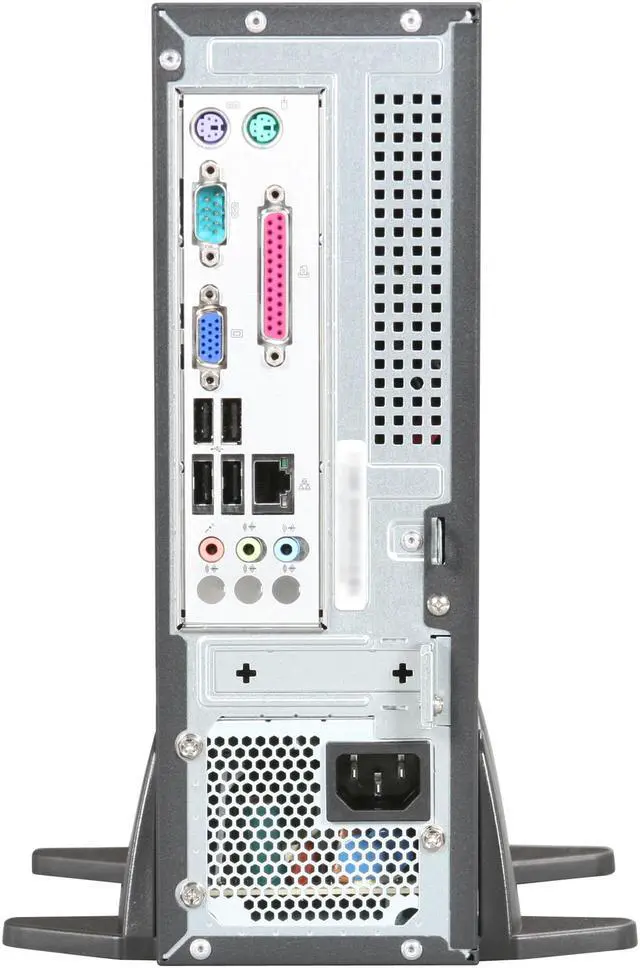

Back Panel Ports

PS/2
2
COM
1
LPT
1
VGA
1 x D-Sub
Rear USB
4
RJ45
1
Rear Audio Ports
3 jacks

Power Supply

Power Supply
150W

Physical SPEC

Dimensions
11.1" x 11" x 3.74"
Weight
10 lbs.

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Foxconn R30-D4

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Eric S.
  • 1/9/2012 5:38:24 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks for VoIP Server

Pros: Wanted cheap, low power system for PBX in a Flash server. Works entirely as expected. No issues. Not much heat out of the back.

Cons: Tight case took a short while to understand.

Other Thoughts: Want something like this for a low power pfSense router next.

Did you find this review helpful? Yes No

  • ADAM M.
  • 7/7/2011 9:57:34 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsAwesome bang for the buck

Pros: Cheap, small, faster than the legacy machines they are replacing. I have around 10 of these for my production staff and no problems yet. Running Windows 7 (32 bit and 64 bit) without trouble.

Cons: CDROM drive button doesn't work. You are better off getting an external. Just cheap molding.

If you do get an internal drive, try to get the shortest one possible. Long drives will cover up the CPU fan (BAD).

Plastic clips that hold the front bezel on break easily, be careful.

Other Thoughts: Using these as replacements for older P4 and Celeron machines running simple tasks. Much faster than I had expected. Will buy again!

1 out of 1 people found this review helpful. Did you? Yes No

  • Nghia D.
  • 4/2/2011 11:27:02 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsbig on the outside, tight on the inside

Pros: * Cheap (got it for $139.99) with 2GB RAM
* low power usage

Cons: * Bigger than I thought it would be from the bigger. I was expecting Eee Box size, it's closer to SFF PC from Dell

* space is tight on the inside

* there's 2.5 mount but not long enough to fit a laptop hard drive, you'll have to get a 2.5 to 3.5 inch mounting if you're using a laptop hard drive.

* No PCI-E slot, the one upgrade slot is an old fashion PCI low profile. The onboard graphics is weak and I wanted to upgrade to a low-profile Radeon 5450 that I already have. No such luck.

Other Thoughts: Know what you're getting it for before jumping and buying it.

0 out of 1 people found this review helpful. Did you? Yes No

  • Samuel A.
  • 3/31/2011 1:51:34 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsnot bad, not great

Pros: Got this as a Shell Shock deal w/2Gb ram. Nice small case, PSU quiet, top case fan quiet. Popped memory in, popped a Ubuntu 10.10 USB flash stick in and fired it right up.

Cons: CPU fan noisy as hell with case in vertical position, lay it flat it's quiet. Have tons of small CPU fans so I just swapped it out. Stand to hold case upright doesn't fit tight to case, touch the case and it slides back out of stand. Nothing a couple dabs of glue on the bottom side won't fix.

Other Thoughts: Hard drive I ordered with this coming in separate shipment so I haven't finished yet. Plan on this being a Win 7 media streamer for our bedroom 720p TV. Only low-profile PCI cards will fit, have to modify bracket on the wireless card I plan to use. No biggie for me but may be for some

0 out of 1 people found this review helpful. Did you? Yes No

  • Brock M.
  • 3/19/2011 12:26:55 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

3 out of 5 eggsGood, but not perfect

Pros: Nice design, not a lot of super-bright LEDs or chrome knobs everywhere. Uses standard desktop components (optical, 3.5" HDD), making it reasonably cheap to build-out. Stays fairly quiet under load, and handles 720p content without so much as a hiccup (XBMC, VLC player, and Media Player). No HDMI, DVI, or S-PDIF.

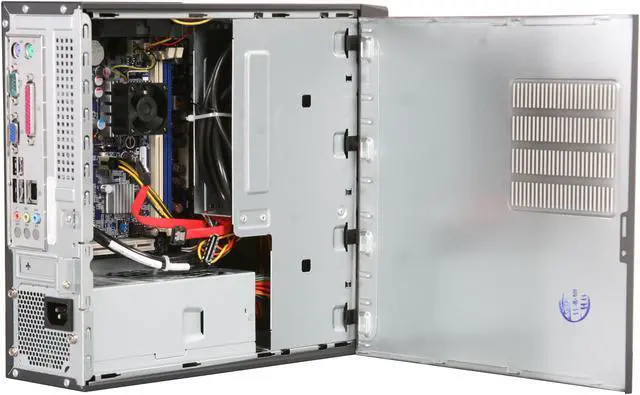

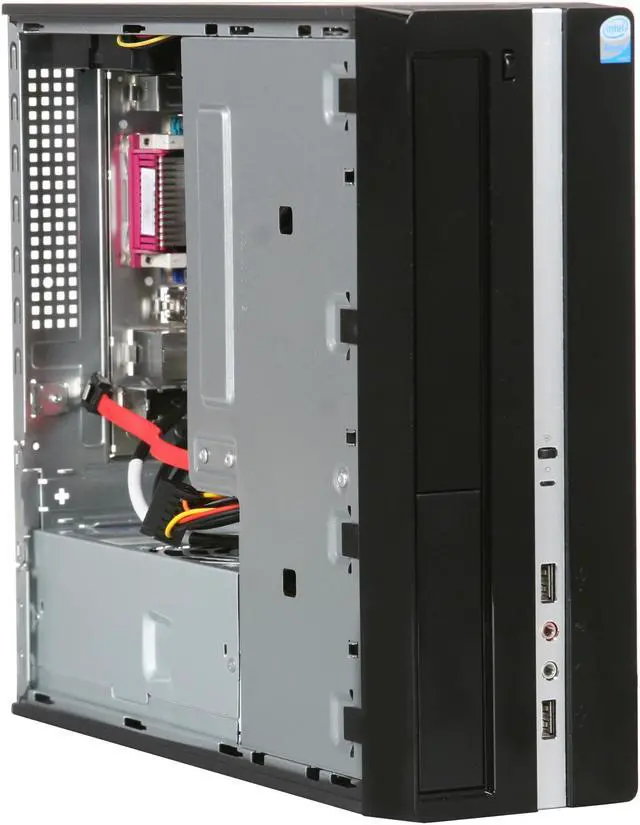

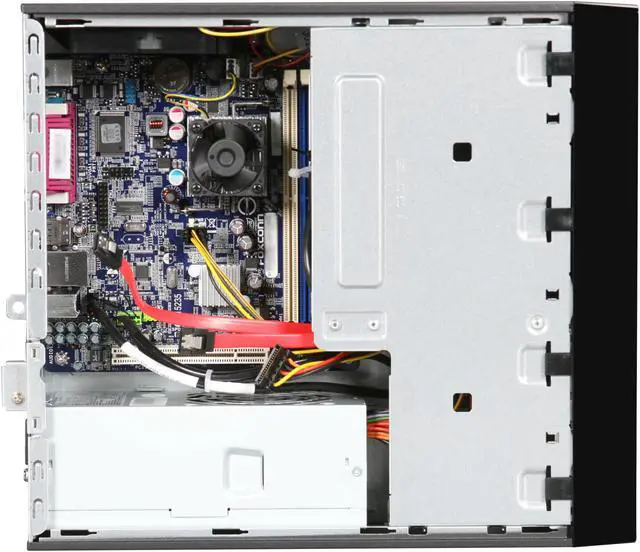

Cons: Interior layout is TERRIBLE. watch your memory height or the optical will interfere with memory when installed. Odd-shaped PSU comes *inredibly* close to HDD, and getting use of the included <6" sata cables is tricky at best.

Other Thoughts: I'm surprised for as tight as everything is packed in, there is no mounting for a 2.5 or 1.8" drives. If you are putting a laptop drive in this (HIGHLY recommended given the tight interior space), you'll need your own adapter plate.

HDMI, mount points for a laptop HDD, and relocated or angled memory slots would make this 5/5 stars. As it is, it's a fairly competent machine once you get past the little problems.

3 out of 4 people found this review helpful. Did you? Yes No

  • Jon C.
  • 3/7/2011 6:06:35 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsnice

Pros: Small. Easy to assemble. You only have to add a Hard drive, Optical Drive if you need one, and a Stick or 2 of desktop DDR2 memory. Opened box, added hd, and memory. 5 minutes I was installing an OS. Have to say that was easy.

Cons: Case fan is a little loud. Fan is louder than normal im sure because of smaller size trying to move more air. You could change out the fan if you wanted.

Other Thoughts: Fan is located on top if standing the case up. Good design so as to have good airflow and minimize heat build up in the case. Over all great price for a great little pc.

2 out of 2 people found this review helpful. Did you? Yes No
