Item#: N82E16856158042

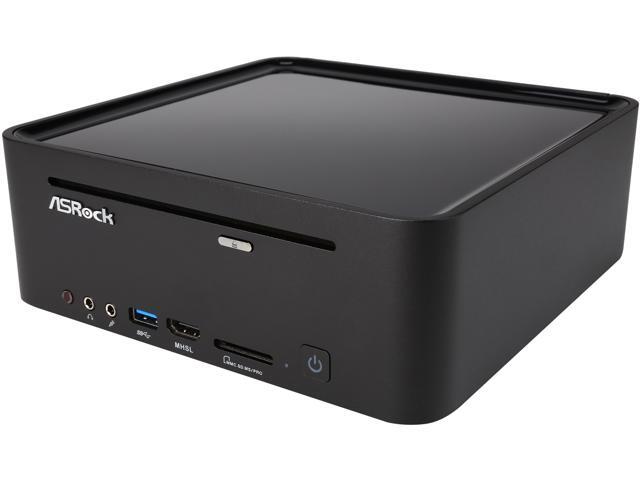

ASRock VisionX VISION X 471B Intel HM87 2 x 204Pin SO-DIMM AMD Radeon R9 M270X Graphics (with 1GB GDDR5 VRAM) Supports Blu-ray 3D playback, AMD HD3D technology *AMD has officially renamed AMD Radeon HD8850M to AMD Radeon R9 M270X. **Blu-ra

Sold and Shipped by Newegg

  • Intel Core i7 4712MQ Mobile Haswell Processor (6M Cache, up to 3.30 GHz)
  • AMD Radeon R9 M270X Graphics (with 1GB GDDR5 VRAM)
  • 2 x 204Pin SO-DIMM DDR3 1600/ 1333/ 1066

ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ASRock VISION X 471B

General

|
Brand
ASRock
Series
VisionX
Model
VISION X 471B

CPU Supported

|
CPU Type
Intel Core i7 4712MQ Mobile Haswell Processor (6M Cache, up to 3.30 GHz)

Chipset

|
North Bridge
Intel HM87

Memory Supported

|
Memory installed
8GB DDR3-1600 (2 x 4GB)
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1600/ 1333/ 1066
Max Memory Supported
16GB

Storage

|
Hard Drive Installed
2TB
Supports second 2.5" SATA HDD

Graphics

|
Onboard Video
AMD Radeon R9 M270X Graphics (with 1GB GDDR5 VRAM)
Supports Blu-ray 3D playback, AMD HD3D technology

*AMD has officially renamed AMD Radeon HD8850M to AMD Radeon R9 M270X.
**Blu-ray disc is supported by Blu-ray drive.

Audio

|
Channel
7.1 CH HD Audio, Supports DTS Connect

Communications

|
LAN
Gigabit LAN
*Supports Wake-On-LAN
Wireless LAN
2T2R 802.11 a/b/g/n/ac
*5GHz/2.4GHz Dual-Band access / Faster Speed: WLAN up to 867Mbps data rate.
Bluetooth
Bluetooth 4.0 / 3.0 + High Speed Class II

Front Panel Ports

|
Front USB
1 x USB 3.0
Card Reader
4-in-1 Card reader (SD3.0/MMC/MS/MS PRO)
Other Front Ports
1 x MHSL
1 x MIC
1 x Headphone

Back Panel Ports

|
HDMI
1
VGA
1 x DVI-I (Dual-Link)
Rear USB
1 x USB 2.0
5 x USB 3.0
Rear e-SATA Ports
1
Other Rear Ports
1 x S/PDIF

Power Supply

|
Power Supply
Power Unit - 120W/19V Adapter

Physical SPEC

|
Dimensions
2.76" x 7.87" x 7.87"

Features

|
Remote Control
MCE
Features
Intel Mobile Haswell Processor

Mobile Intel HM87 Express chipset

AMD Radeon R9 M270X Graphics, Supports BD3D, AMD HD3D technology

7.1 CH HD Audio, Supports DTS Connect

2T2R WiFi 802.11ac + BT v4.0 support

Supports MHSL (Mobile High Speed Link) Technology

OS - Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit compliant

Volume (liters) - 2.8L
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the ASRock VISION X 471B

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Andrew P.
  • 2/6/2016 10:31:24 AM

4 out of 5 eggsThe Ultimate Low Noise/Moderate Power Cable Box Killing One Stop Shop For Home Entertainment!

Pros: Was in the market to replace my aging Asrock Ion 330ht. Despite playing HD cable perfectly via HDHomerun and Media Center, it was no longer able to deliver a smooth HD stream on Netflix, and A mazon and HBO Go were also jumpy. On a 720p plasma I am getting 60fps in WoW and Diablo 3 using med to high settings. The 8850m is no slouch and is comparable to a Nvidia 860m. As the title suggests, I am primarily using this beast as a cable box replacement, connecting to an HDHomeRun Prime on the network. Have yet to test the 3d capabilities due to owning an older tv, but I can attest to the fine standard Blu-ray playback. If not for the Plasma's power bill, this thing could become my primary PC. The HT version of Asrock's Vision HTPC's, as well as their Beebox line, will do many of these things as well. But you'll sacrifice in having great Blu-ray support and/or gaming capability.

Cons: Availability has been an issue with this model from day one, which wouldn't have been too bad if it wasn't the only one with a Blu-ray drive (finding a replacement on the other models seems to be a hassle due to eject button placement). I wanted to upgrade my old Ion platform last year when it came out, but kept missing the two or three times it was available here. I was lucky to find it "used" off of A mazon last month (Everything was sealed like new, I guess the first owner didn't realize they had to supply an OS). Looks like Asrock has been more interested in keeping their Beebox line in stock than their line of heavy hitting HTPC's. The only area I can think of where they cut corners on the device itself is deciding to go with 1GB of DDR5 on the 8850m as opposed to the standard 2 that everyone else seems to use. Luckily that hasn't impacted me yet, but I've yet to try anything other than WoW and Diablo 3 so far. Still wish MXM cards were easily interchangeable, but that's a complaint against the industry at large. Also, seeing as everything inside of the case is laptop guts, it would have been nice for the machine to utilize the lower powered Intel GPU for less intensive tasks (video streaming) instead of the AMD doing everything, like how most gaming laptops work. Overall just a minus 1 for the poor availability. Everything else is nitpicking.

Other Thoughts: Originally put Windows 10 along with the sideload of Media Center, but ended up installing 7 because of finicky IR controller support in Windows 8-10. Far more easy to swap in hardware upgrades than on the Ion 330ht. Upgraded ram to 16GB, swapped in a better ranged Intel wireless adapter and replaced 5400 rpm HDD with a faster HGST Travelstar. I plan to next replace the generic msata SSD with one from Samsung. I very much hope this isn't a last hurrah for the Vision X line from Asrock, who saw a 4th gen Intel refresh instead of a 5th gen update. But coupled with the market shift away from physical media and Microsoft's complete abandonment of Media Center, the future looks bleak indeed.
