GIGABYTE BRIX GB-XM1-3537 Intel HM77 Core i7-3537U 3.1GHz Integrated HD Graphics 4000

  • Intel HM77
  • Intel Core i7-3537U 2GHz / 3.1GHz
  • Intel HD Graphics Integrated by CPU
  • 2 x 204Pin
  • Pin It
  • Email this page
ICON Loading...

Learn more about the GIGABYTE GB-XM1-3537

General

Brand
GIGABYTE
Model
GB-XM1-3537
Color
Black

CPU Supported

CPU Type
Intel Core i7-3537U 2GHz / 3.1GHz

Chipset

North Bridge
Intel HM77

Memory Supported

Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1600/1333
Max Memory Supported
16GB

Expansion Slots

Other
1 x mSATA slot
1 x Half-size mini-PCIe slot occupied by the WiFi card

Graphics

Onboard Video
Intel HD Graphics Integrated by CPU

Communications

LAN
Realtek RTL8111E
Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11n

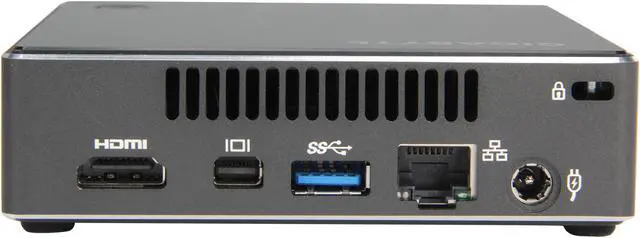

Front Panel Ports

Front USB
1 x USB 3.0

Back Panel Ports

HDMI
1
VGA
1 x Mini DisplayPort
Rear USB
1 x USB 3.0
RJ45
1
Other Rear Ports
1 x DC-In
1 x Kensington lock slot

Power Supply

Power Supply
Input: AC 100-240V
Output: DC 19V
3.42A

Physical SPEC

Dimensions
4.5" x 4.24" x 1.18"

Features

Features
The BRIX from GIGABYTE is an ultra compact (29.9 x 107.6 x 114.4 mm) and versatile DIY PC kit available with a broad choice of processors covering a range of performance points. The BRIX redefines the desktop PC in terms of miniaturization with a form factor that sits in the palm of your hand. Ideal for compact HTPC builds or as a standard desktop in the home or office, the BRIX doesn't hold back in terms of display and peripheral connectivity, or raw performance.

Supports dual display video output via HDMI and mini DisplayPort.

Includes 802.11n Wi-Fi Mini PCIe module.

Includes VESA bracket for discreet display and wall mounting.

Dimensions: 29.9 x 107.6 x 114.4 mm.

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the GIGABYTE GB-XM1-3537

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Dexter F.
  • 7/26/2013 2:39:52 PM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

4 out of 5 eggsDoes the job

Pros: Extremely Tiny - smaller than the Intel NUC, Very quiet, Fast. It certainly packs a decent punch even though its merely a dual core i7. The minimal and sleek styling is definitely a plus. As noted above - you get the power cord included (Sorry NUC fans) The integrated video is more than fast enough considering it's not a gaming machine. Has an easy time driving a philips 1080p tv.

I put in 16GB ram, and a 256GB SSD.

Cons: Loss of one star because its quite expensive and not a quad core processor. Only 2 USB 3 ports, although that's plenty for me considering I'm only using one to an external backup drive.

Other Thoughts: Right now its a home server, using windows 7 x64 as a host. I have iis, ftp, and rdp running, as well as a few VMs. Very stable. It sits right next to my router and modem. (Make sure you use the high performance power settings in the control panel as this does seem to affect performance in windows 7)

4 out of 4 people found this review helpful. Did you? Yes No

  • Keith S.
  • 7/19/2013 1:16:51 PM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsVery Nice

Pros: Small, Fast, solid all metal case. My purchase was oriented around this thing being used mainly towards a micro server role including virtual machine hosting and eventually headless or only occasional console needs... I got it with 16GB crucial ram and 240gb Mushkin ssd and all works trouble free. I used old USB 2 external cd/dvd drive to load Fedora 17 Linux x64. All worked flawlessly. I started the built in KVM hypervisor software and created/configured (oddly) some test SCO Unix and other Fedora based virtual machines all to my great satisfaction. From the Linux desktop, I easily connected to my office wifi and surfed. Desktop performance on a 1920x1200 flat panel via hdmi to DVI cable was excellent. I like that I got a local power cable included.

Cons: Not much at this time. This I7 based unit is currently the fastest unit I can find. It is dual core as advertised. It's fast but it would seem that for such a little box, they do not have a big cache and only dual core. Am going to monitor the fan for noise and longevity. It seems to get sound on your desktop, you presumably need a hdmi flat panel with speakers or usb speakers. Have not tried the displayport. I'm mixed on why this kind of box is on the expensive side though it is rather new/bleeding edge.

Other Thoughts: I was mixed on how I wanted to config the box. If max performance is wanted at all times, then disable EIST speedstep in bios. With EIST disabled, I see all cores run at 2594Ghz. Not sure in this config if it would still turbo to the 3.1Ghz rating ondemand. Overall though, it runs hotter this way so you may trade off the fan noise for full fan speed (~6k rpm) vs the autospeed of something around 4K rpm. With EIST enabled, the fan is normally much slower and decently quiet at idle. All around, I'm pretty impressed.

4 out of 6 people found this review helpful. Did you? Yes No
