Item#: N82E16856167058

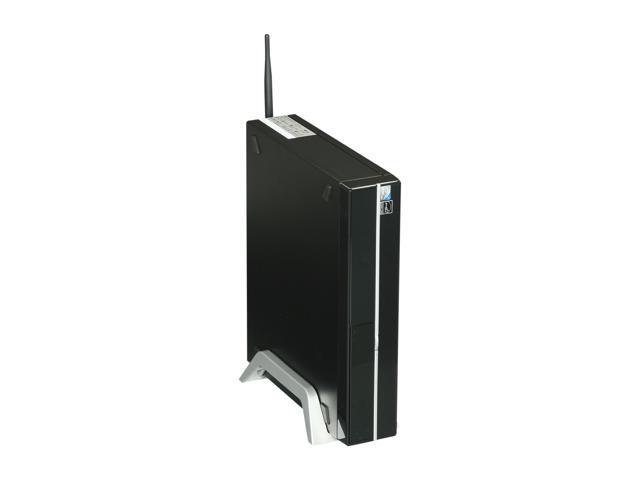

MSI B032-001BUS Intel NM10 Barebone

Sold and Shipped by Newegg

  • Intel Atom D2500 (1.86GHz, dual core)
  • DDR3 1066/800

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

LOWER POWER CONSUMPTION MOBILE PLATFORM

wind box dc111

The Wind Box DC111 is equipped with Intel Mobile 1037U 1.8GHz ULV dual-core processor which provides impressive multi-tasking performance. The 1037U Processor also has the characteristic of low power consumption and requires only 17W TDP to operate, which consumes much less power than the average desktop.

COMPACT WITH WINDOWS 8.1

wind box dc111

The MSI Wind Box DC111 adopts with Windows 8.1 pre-installed is a totally new version of Windows than ever. Windows 8 breaks the traditional OS architecture of past Windows operating systems; whereas it applies a UI interface which allows users to interact with Windows 8.1 more instinctively and flexible.

UTILITIES I/O PORTS: THE BEST CHOICE OF HOME THEATER DESKTOP PC

wind box dc111

The Wind Box DC111 provides one an HDMI (High-Definition Multimedia interface) and one VGA out which allows the units to be connected to a second monitor. They support dual-screen display and can also output the screen to a larger display device, such as a projector or a large-screen LCD TV, making the DC111 more versatile and more efficient. DC111 also provide SPDIF out can support 5.1 channel audio. Based on the utilities I/O ports, DC111 has capabilities to be the best choice of Home Theater PC.

SMART- AN ULTRA- LIGHTWEIGHT PC

wind box dc111

The Wind Box DC111 has elegant lines and a slim, lightweight chassis. It is just 191.8 mm (W) × 150.93 mm (H) × 34.94 mm (D) in size, and weighs only around 900 grams. The DC111's unique ID design makes it easy to store and move around; this ultra-mini PC is perfect for both home and office use. Tests have confirmed that, in regular operation, the Wind Top DC111 maintains average power consumption that does not exceed 40W, less than half that of most conventional PCs.

SMART MULTIMEDIA FILE SHARING

wind box dc111

MSI has introduced the latest and exclusively developed SmartMedia link on the Wind Box DC111 using cloud technology, users can use their tablet, laptops, TVs that support DLNA, and mobile handsets on the same Wi-Fi and LAN network to play videos and music or display photos instantaneously via SmartMedia link.


Learn more about the MSI B032-001BUS

General

|
Brand
MSI
Model
B032-001BUS

CPU Supported

|
CPU Type
Intel Atom D2500 (1.86 GHz, dual core)

Chipset

|
North Bridge
Intel NM10

Memory Supported

|
Memory installed
0 MB / 4 GB (max)
Memory Type Supported
DDR3 1066/800

Storage

|
Serial ATA
1 x SATA 1.5Gb/s

Audio

|
Discrete Graphic Card
Intel GMA 3600
Onboard Audio
Integrated

Communications

|
Max LAN Speed
10/100/1000Mbps + 10/100Mbps

Extension Bays

|
3.5" Internal Bays
1

Front Panel Ports

|
Front Audio Ports
1 x headphones
Front S/PDIF Out
Yes
Card Reader
6 in 1

Back Panel Ports

|
HDMI
1
VGA
1 x D-sub
Rear USB
6
RJ45
1
Rear Audio Ports
2 jacks

Power Supply

|
Power Supply
65 Watt

Physical SPEC

|
Dimensions
11.88" x 9.4" x 2.6"

Features

|
Features
B032-001BUS equipped with HDMI and VGA output connectors makes it possible to be connected to a big full-HD display while enjoying the outstanding image quality. The model also includes the 7.1-channel audio and SPDIF-out ports to support the astounding surround sound without extra cost.
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the MSI B032-001BUS

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • W H.
  • 10/29/2014 6:32:59 PM
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsNice little machine

Pros: OK, having lived with this machine for a couple of months, I've decided that I like it a great deal, despite the lack of support from MSI. This product makes a very nice little media server running Ubuntu 14.04 server, 64bit, headless. Easy enough to add a PCIe wifi card. Enough room in the chassis for 1 3.5" internal hdd and 1 2.5" hdd. The optical SPDIF audio out is a definite plus. I have this machine set up to boot from a 60gb SSD with a 6TB seagate HDD hosting the media library. I'm running HTTP, LMS and DLNA services.

Cons: Only supports 4gb of ram. Unlike the old MSI WindPC, there's no CF card support. Adding 2nd standard SATA HDD requires getting out a drill and a soldering iron to deal with the funky 2ndary micro-sata optical drive cable.

Other Thoughts: Too bad this product is out of stock. I'd buy more of 'um if they were available.

1 out of 1 people found this review helpful. Did you? Yes No

  • W H.
  • 7/13/2014 1:51:59 PM
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsNo support

Pros: Too soon to tell

Cons: Basically, there is ZERO support for this product from MSI's US or Global web sites. The download link on the US site leads to a 404 page-not-found error on the Global site. So, for now, you can forget about finding BIOS updates, driver updates, etc.

Manufacturer Response:

Dear Valued Customer,

We apologize for the issues that you are having with this product.

If you have not go through troubleshooting yet, then feel free to contact our tech support team for assistance at 626.271.1004 from M to F, 6am to 6pm Pacific Time.

Best Regards,
MSI Review Team | usreview@msi.com

1 out of 1 people found this review helpful. Did you? Yes No
