Item#: N82E16856173047

Zotac ZBOX ZBOXNANO-AD12-U AMD A68M (Hudson-M3L) 1 x 204Pin SO-DIMM AMD Radeon HD 7340 Mini / Booksize Barebone System

  • AMD E2-1800 APU 1.7GHz Dual-Core
  • AMD Radeon HD 7340
  • 1 x 204Pin SO-DIMM DDR3 1333

  • Pin It
  • Email this page
ICON Loading...
  • Specifications
  • Warranty & Returns
  • Reviews

Learn more about the ZOTAC ZBOXNANO-AD12-U

General

Brand
Zotac
Series
ZBOX
Model
ZBOXNANO-AD12-U

CPU Supported

CPU Type
AMD E2-1800 APU 1.7GHz Dual-Core

Chipset

North Bridge
AMD A68M (Hudson-M3L)

Memory Supported

Memory installed
No Memory
Memory slot
1 x 204Pin SO-DIMM
Memory Type Supported
DDR3 1333
Max Memory Supported
8GB

Storage

Hard Drive Installed
No Hard Drive
Serial ATA
1 x SATA 6.0Gb/s

Graphics

Onboard Video
AMD Radeon HD 7340

Audio

Onboard Audio
Integrated

Communications

Max LAN Speed
10/100/1000Mbps
Wireless LAN
802.11n
Bluetooth
Bluetooth 3.0

Extension Bays

2.5" Internal Bays
1 (9.5mm height)

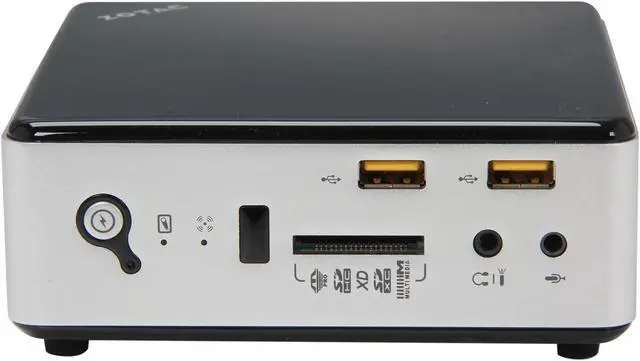

Front Panel Ports

Front USB
2 x USB 2.0
Front Audio Ports
Combo Analog / mini-Optical S/PDIF out jack
Microphone jack
Card Reader
7-in-1 Memory card reader (MMC/SD/SDHC/SDXC/MS/MS Pro/xD)

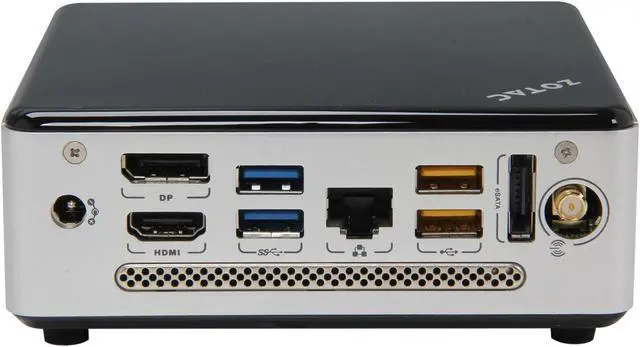

Back Panel Ports

HDMI
1
VGA
1 x DisplayPort
Rear USB
2 x USB 3.0
2 x USB 2.0
Rear e-SATA Ports
1
RJ45
1

Power Supply

Power Supply
DC19V

Physical SPEC

Dimensions
5" x 5" x 1.77"
Weight
3.63 lbs.

Features

Remote Control
MCE
Features
AMD E2-1800 APU 1.7GHz Dual-Core
AMD Radeon HD 7340 GPU
Universal Video Decoder (UVD)
Blu-ray hardware decode acceleration
Adobe Flash Player 10.1 acceleration
Microsoft DirectX 11 compatible
Microsoft DirectCompute ready
OpenGL 3.2 compatible
OpenCL compatible
Integrated 802.11n WiFi & Bluetooth 3.0

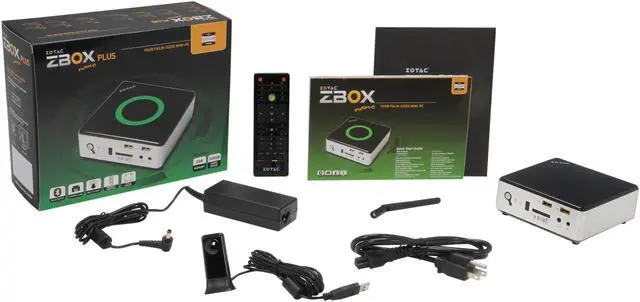

Packaging

Packaging
1 x ZOTAC ZBOX nano AD12 (no RAM, HDD, and OS)
1 x Power brick & cable
1 x VESA monitor mount (w/4 screws)

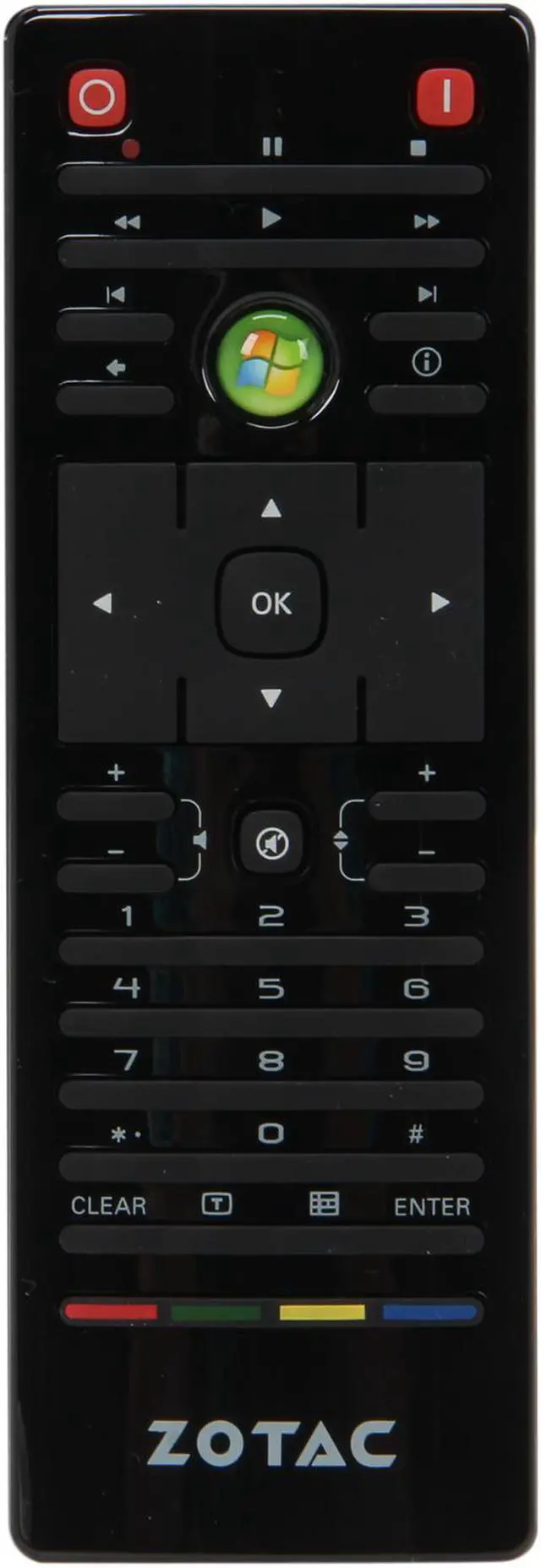

1 x MCE compatible remote w/ 2 CR2032 batteries
1 x USB IR receiver

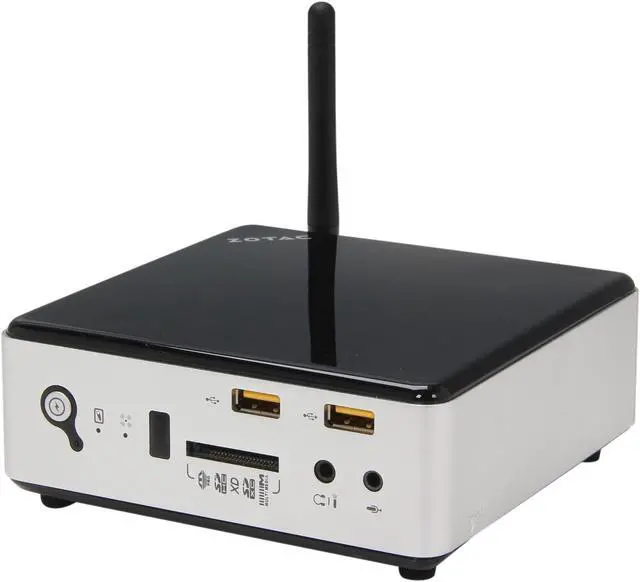

1 x WiFi antenna
1 x mini-Optical to Optical adapter

General

Group
No Memory / No Hard Drive
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the ZOTAC ZBOXNANO-AD12-U

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Bryan S.
  • 7/30/2015 6:43:43 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsSo far I'm loving it

Pros: Very cool little PC. I had considered the intel nuc's at first, but this one was much cheaper, so I thought it might be worth the risk and I could use it for something else if it didn't make the cut.

My setup:
1TB Seagate Hybrid Drive
8GB Corsair Ram
Windows 7 Home Premium running WMC
Tuner: HDHomeRun Prime (3 tuners)

Windows 7 installed well and easily with an external DVD drive (I read that the intel nuc's won't do external DVD for install). The Zotac driver CD was very easy to install as well. Installing took about 2 hours with windows and drivers. It took about a day to download and install all of the windows updates (thanks to no SP2 for windows 7). I'm running WMC and even though this computer came with a remote, I'm using a Logitech Ultimate Home to control it via Bluetooth - but I don't have access to numerals with that remote - that's something I'm trying to remedy and the IR remote will likely help with that - so this is a major plus for this device.

I have been recoding for a little over a week and everything seems to be working well. When I have recorded two programs at the same time, it appears to be working fine. I have not tried three programs at the same time. I'm wired directly into my gigabit network, which is important to have. Do not even think of using wifi to record - that's just asking for trouble.

Cons: As one other reviewer mentioned this might be slightly underpowered, though I haven't experienced any issues yet. It doesn't take much to get to 100% processing power, especially when windows update runs and even for about 1/2 day after windows updates runs - it hogs some processing power and just needs to run its course. This is after the major series of windows updates when you first install windows.

I hope that my hybrid drive is the reason why I'm not experiencing any issues so far with two simultaneous recordings. To me it makes sense that the OS and application should be running from SS memory, while the disk function is reserved exclusively for storing data (in theory).

Other Thoughts: I'm continuing to watch out for artifacts caused by overloading and will update this review as time goes on and I push it to 3 recordings. The i5 version might be more well suited to the recording application of WMC (for 2 or more simultaneous feeds), but it's significantly more expensive. If it's in your budget, I would recommend going for the i5. I'm more than happy with the zotac brand.

Did you find this review helpful? Yes No

  • Gerard O.
  • 1/14/2014 1:04:53 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsGood units overall

Pros: Easy to install and mount to a monitor. Easily runs basic workstation functions and internet use if used for those purposes. Boots quickly and efficiently on Windows 7 w/ 8gb memory and SSD drive. I run Linux also on some (own 10 of these in our businesses) and it runs well on 4gb and transitional laptop drive w/o ssd. Handles many different USB devices without an issue. If using Windows, install the included drivers.

Cons: Will not run wireless on Linux without rebuilding the driver package as a general rule (definitely need to on Ubuntu). Out of 10 of these, 1 came DOA with a stuck power button and after 3 months of use, that just occurred to another one so I will RMA. Otherwise would have given it 5 stars.

Other Thoughts: Overall, easiest units I have found for mounting to vesa mounts.

Did you find this review helpful? Yes No

  • Vadim G.
  • 11/22/2013 10:58:26 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsbetter than i expected

Pros: good GPU, common sense design, doesn't get hot at all.

Cons: cpu is underpowered, but that was expected.

Other Thoughts: bought it to replace my home SSH/Proxy machine, but set it up as a desktop with 22 inch monitor - a lot heavier task.
it runs great - Fedroa linux as host OS, VMplayer running XP as guest. The only thing is - AMD linux drivers can be a hightmare to deal with and you need to run proprietary ones if you want GPU acceleration in VM guest.

Did you find this review helpful? Yes No

  • M L.
  • 9/22/2013 12:57:49 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year

1 out of 5 eggsFailed after 6 months. Bad RMA service.

Pros: Small. Quiet.

Cons: Failed after less than 6 months. ZOTAC tried to replace it with a slower, older model because this model was "out of stock". When I refused, they tried to replace it with a model that only took an mSATA hard drive. Their tech support didn't seem to know why that would be a problem.
Finally they replaced it with an equivalent intel model, ID62-U. This one has since failed after less than 2 months.
I recommend against any of the ZBOXNANO line and, given their awful RMA service, against ZOTAC in general.

0 out of 2 people found this review helpful. Did you? Yes No

  • Janos H.
  • 7/31/2013 2:31:34 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsHappy so far

Pros: Small, reliable, perfect HTPC.

Cons: Not really a con, just a concern ... CPU tends to stay at 60C and the fan spins at 3800RPM. Seems a bit high.

Other Thoughts: Some random 8G stick of budget memory
Samsung 840 SSD
Windows 7 Ultimate
WMC for TV stuff and Netflix
XBMC for movies

1 out of 1 people found this review helpful. Did you? Yes No

  • Daniel S.
  • 7/23/2013 7:34:23 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsUnreliable

Pros: Compact form factor

Cons: Unreliable, weak internal IR, terrible RMA service

Other Thoughts: Fine when it works, but I've had two of these die on me now. Time to RMA the first one was 6+ weeks. I don't have time for that; I'll be looking elsewhere.

1 out of 1 people found this review helpful. Did you? Yes No

  • Mark E.
  • 7/3/2013 7:50:45 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsI own 3 of these

Pros: This make a great HTPC. Small size, low power, plays everything including cablecard.

Cons: Could be cheaper

Did you find this review helpful? Yes No

  • Mark A.
  • 6/10/2013 7:57:29 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsgreat hype

Pros: OpenElec works flawlessly.

Cons: None

1 out of 1 people found this review helpful. Did you? Yes No

  • Robert B.
  • 5/8/2013 7:54:18 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

4 out of 5 eggsExcellent, but not yet perfect

Pros: I use this system to host my local media files via Windows Media Center and it plays all files perfectly. With a 1TB hybrid drive, I have plenty of space for media and file backups. Due to the small size, the system fits easily just about anywhere. The hardware has been very reliable and quiet. Even while using Handbrake to encode a video, it did not freeze and the internal fan was quiet. The included remote is comfortable and attractive. There is a mount included to attach to the back of a VESA monitor. Bluetooth and wireless internet are both included, which is great at this price.

Cons: The APU cannot handle Netflix HD streaming. The case is a bit on the ugly side. The bottom panel was a little tough to remove. The included Media Center remote does not work properly. When I used it to navigate WMC, I would press the direction button once, but the remote would act as if I had pressed it twice, thereby skipping every other selection.

Other Thoughts: To make this the perfect HTPC for me, they could do three things:
1. Fix the remote.
2. Offer it in black.
3. Offer an APU that is powerful enough to handle Netflix HD streaming.

As is, it's still an excellent device for my main use, which is playing locally stored video files.

0 out of 2 people found this review helpful. Did you? Yes No

  • Jordan T.
  • 5/3/2013 5:28:02 AM
  • Tech Level: Somewhat High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsNice, but service is pretty bad

Pros: Small, convenient form factor. Built in IR, wifi.

Cons: Poor driver support in XBMC/OpenELEC
Horribly slow service from MFR

Other Thoughts: The wireless was either unsupported in the Zotac builds, or very slow, so I switched to the hardwired network, which had a hardware issue. Registering the device took 2 weeks, getting an RMA approved to 3-4 weeks, I shipped it to them and just got notified it would be up to 30 days to receive a replacement. For those counting, that's 2 months to get an RMA completed. Yikes.

0 out of 2 people found this review helpful. Did you? Yes No
