Item#: N82E16856173086

Zotac ZBOX-EI750-Plus-U 2 x 204Pin SO-DIMM Iris Pro 5200 w/128MB eDRAM Mini-PC

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Intel Core i7 4770R (quad-core, 3.2 GHz)
  • Iris Pro 5200 w/128MB eDRAM
  • 2 x 204Pin SO-DIMM DDR3L 1600

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

ZOTAC ZBOX EI750 Plus

Embrace mini-PC gaming with the 4th Gen Intel Core R-series processor and Intel Iris Pro 5200 graphics packing ZBOX EI700 series. The new Intel Iris Pro 5200 graphics processor enables the ZBOX EI700 series to deliver outstanding visuals and performance that's on par with discrete graphics cards and connect three native or up to four 1080p displays via adapters, or a single 4K display via DisplayPort or quad HDMI, with adapters, using Intel Collage Display Technology.

There's plenty of internal expansion capability in the ZBOX EI700 series with room to accommodate a 2.5-inch SATA 6.0Gbps SSD or HDD and mSATA 6.0Gbps SSD. Intel Smart Response Technology enables the ZBOX EI700 series to combine the superior speed of an mSATA SSD with the higher storage capacity of standard 2.5-inch hard drives to create a single high-speed storage device that intelligently optimizes performance without user intervention for SSD-like performance with hard disk storage capacity.

Specifications

Product Name
Product Name ZBOX EI750 Plus
Chipset
Manufacturer Intel
GPU Iris Pro 5200 with 128MB eDRAM
CPU Compatibility
Name Intel Core i7 4770R (quad-core, 3.2 GHz) (Turbo up to 3.9GHz)
Memory
Memory Type DDR3L
Memory Speed 1600MHz
Slots 2 x 204-pin SODIMM
Capacity 8GB (up to 16GB)
3D API
DirectX DirectX 11.2 (feature level 11_0)
OpenGL OpenGL 4.4
Networking
Ethernet 2 x 10/100/1000Mbps
Wi-Fi 802.11ac + Bluetooth 4.0
Audio
Analog Stereo output
Digital 8-Ch. via DVI-HDMI adapter, S/PDIF
Storage
Hard Drive 1TB 5400RPM HDD
Memory Card Reader 4KB RAM Selectable to 64KB
Ports
DVI 1 (single-link)
HDMI With included adapter
DisplayPort 2
SATA 2 (1 SATA 6.0Gbps, 1 mSATA 6.0Gbps)
USB Ports 4 USB 3.0 (2 on back panel, 1 on top, 1 front)
Cooler
Cooler Smart fan
Form Factor
Form Factor mini-PC
OS Compatibility
Windows User installed (Windows 7/8 ready)
Other
Graphics Output 1 DVI / 2 DisplayPort
Packaging

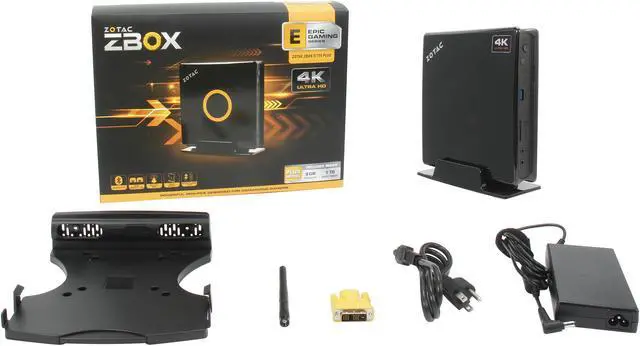

Contents
  • ZOTAC ZBOX EI750 Plus
  • Wi-Fi Antenna
  • VESA Mount
  • 4 x Mounting Screws
  • Stand
  • DVI-to-HDMI Adapter
  • AC Adapter
  • Power Cord
  • Warranty Card
  • User Manual
  • Quick Install Guide
  • USB Drive with OS Driver
  • Driver Disc

Gallery

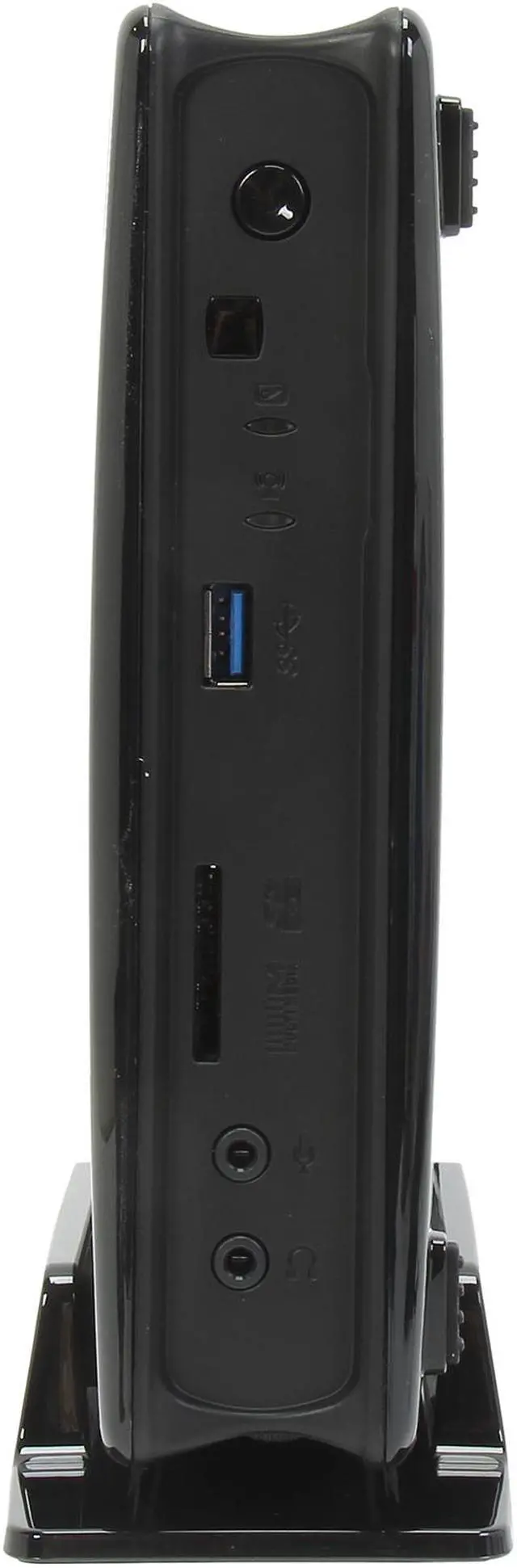

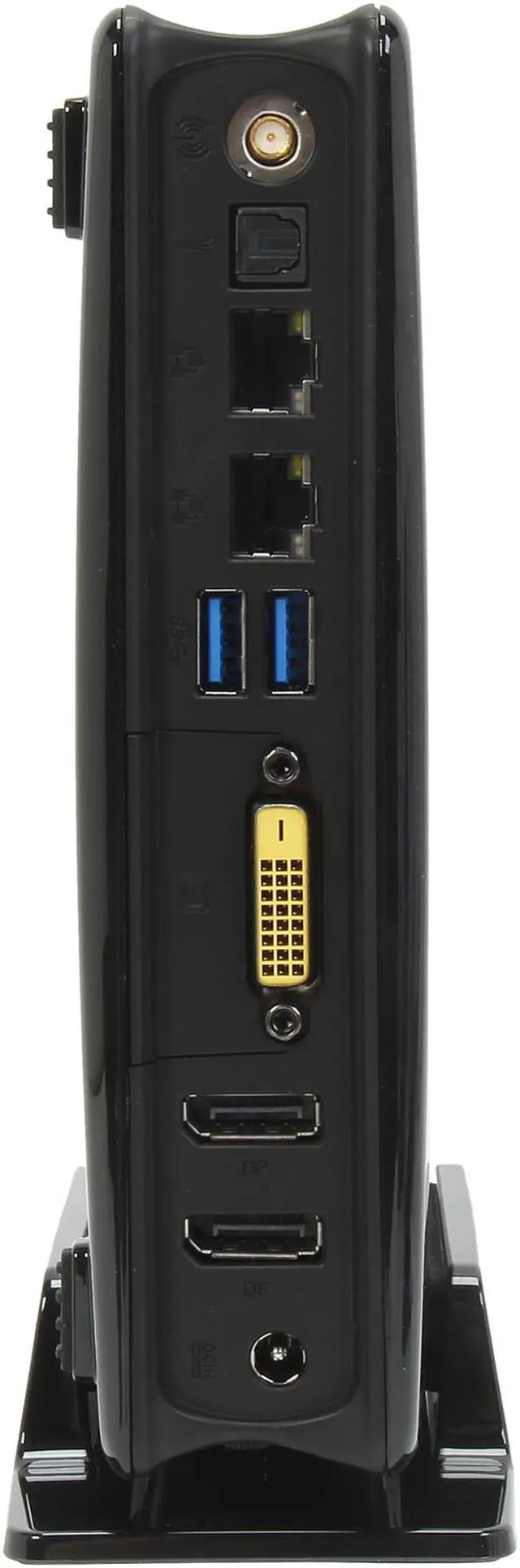

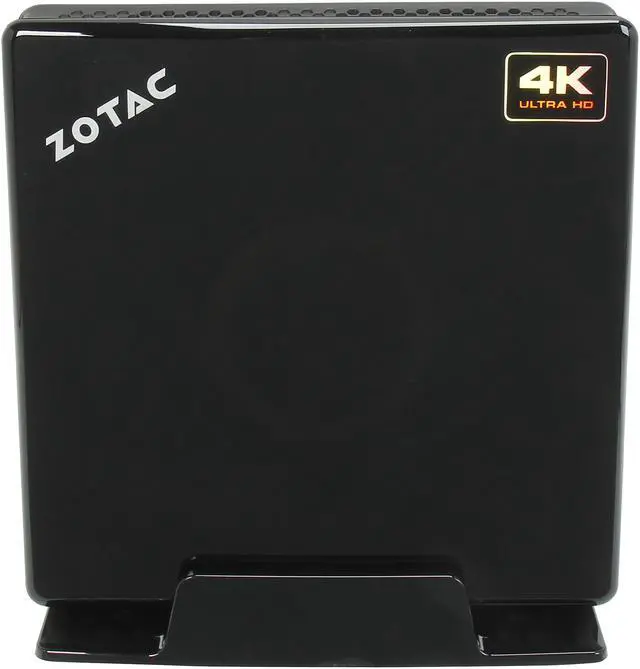

ZBOX-EI750-P ZBOX-EI750-P ZBOX-EI750-P ZBOX-EI750-P ZBOX-EI750-P ZBOX-EI750-P ZBOX-EI750-P

Learn more about the ZOTAC ZBOX-EI750-Plus-U

General

|
Brand
Zotac
Model
ZBOX-EI750-Plus-U

CPU Supported

|
CPU Type
Intel Core i7 4770R (quad-core, 3.2 GHz)

Memory Supported

|
Memory installed
8GB
Memory slot
2 x 204Pin SO-DIMM
Memory Type Supported
DDR3L 1600
Max Memory Supported
8GB (up to 16GB)

Storage

|
Hard Drive Installed
1TB
Serial ATA
SATA 6.0 Gb/s (1TB 5400RPM SATA HDD isntalled)
1 x mSATA 6.0 Gb/s

Graphics

|
Onboard Video
Iris Pro 5200 w/128MB eDRAM

Audio

|
Channel
8 Channel

Communications

|
Max LAN Speed
Dual 10/100/1000Mbps
Wireless LAN
802.11ac
Bluetooth
Bluetooth 4.0

Front Panel Ports

|
Front USB
1 x USB 3.0
Front Audio Ports
2 jacks
Card Reader
4-in-1 Memory card reader

Back Panel Ports

|
VGA
1 x DVI
2 x DisplayPort
Rear USB
2 x USB 3.0
RJ45
2
Rear S/PDIF Out
1 x Optical output
Other Rear Ports
WiFi antenna connector
Power connector

Physical SPEC

|
Dimensions
7.4" x 7.4" x 2.0"
Weight
5.1

Features

|
Features
Intel Clear Video HD technology

Intel InTru 3D technology

Intel Quick Sync Video technology

Intel Collage Display ready

Microsoft DirectX 11 compatible

802.11ac WiFi & Bluetooth 4.0 technology

Packaging

|
Packaging
ZOTAC ZBOX EI750 PLUS
Power brick & cable
VESA monitor mount (w/4 screws)
Stand
DVI-to-HDMI adaptor
1 WiFI antenna

Group

|
Group
8GB / 1TB
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: Non-refundable
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
