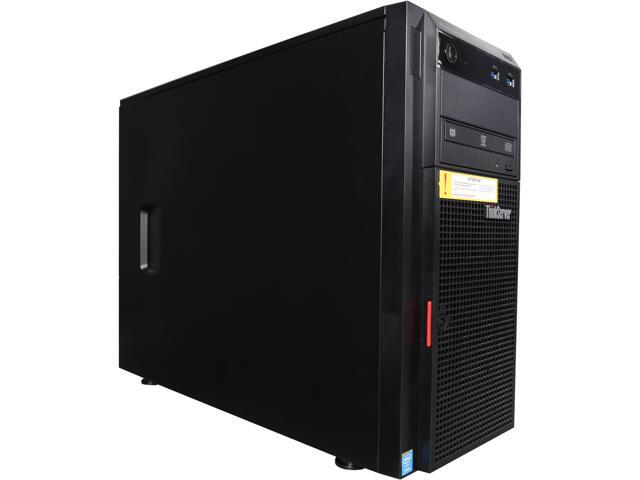

Lenovo ThinkServer TS440 70AQ000XUX 5U Tower Server - 1 x Intel Xeon E3-1225 v3 3.20 GHz

(1)

Write a Review

Sold and Shipped by Newegg

Intel Xeon E3-1225v3
4GB DDR3 ECC UDIMM
HW RAID (0,1,10)
4 x 3.5” Hot-swap
AMT, 1 x 450W
1 Yr Onsite

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Learn more about the Lenovo 70AQ000XUX

Model

Brand: Lenovo

Series: TS440

Model: 70AQ000XUX

Details

Type: Tower

Rack Height: 5U/Tower

Processor

CPU Type: Intel Xeon

Memory

Installed Memory Size: 4GB

MAX Memory Capacity: 32GB

Memory Features: Memory Technology:DDR3 SDRAM

Storage

Storage Controller: Integrated ThinkServer RAID 100 (0/1/10/5)
Optional ThinkServer RAID 500 Adapter (0/1/10/5*) *RAID 5 available only with optional upgrade key
Optional ThinkServer RAID 700 Adapter (0/1/10/5/50/6/60)

Networking

LAN Ports: 1 x Integrated Gb Ethernet (shared with AMT)

Expansion & Ports

Expansion Slots: 1 x PCIe GEN3: HH/FL x16 mechanical, x16 electrical
1 x PCIe GEN2: HH/HL x16 mechanical, x4 electrical
1 x PCIe GEN2: HH/HL x1 mechanical, x1 electrical
1 x PCI 5V 32-bit/33MHz: FH/HL

Software

Operating System: Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Windows Small Business Server 2011
Windows 7
Windows 8.1
Novel SUSE Linux Enterprise Server
Red Hat Enterprise Linux Server
VMware ESXi

Power

Power Characteristics: 1 x Fixed: 450 watt
1+1 Redundant hot-swap: 450 watt (optional)

Features

Features: Number of Processors Supported: 1Number of Processors Installed: 1Processor Manufacturer: IntelProcessor Type: XeonProcessor Model: E3-1225 v3Processor Core: Quad-core (4 Core)Processor Speed: 3.20 GHz64-bit Processing: YesHyper-Threading: NoChipset Manufacturer: IntelChipset Model: C226Standard Memory: 4 GBMaximum Memory: 32 GBMemory Technology: DDR3 SDRAMMemory Standard: DDR3-1600/PC3-12800Number of Total Memory Slots: 4Optical Drive Type: DVD-WriterOptical Media Supported: DVD?ö¼?ûÆR/?ö¼?ûÆRWController Type: Serial ATA/600,6Gb/s SASRAID Supported: YesRAID Levels: 0, 1, 1+0Number of Total Expansion Slots: 4Ethernet Technology: Gigabit EthernetTotal Number of USB Ports: 8Operating System: NoMaximum Power Supply Wattage: 450 WGreen Compliant: YesGreen Compliance Certificate/Authority: GREENGUARD,ENERGY STAR 1.1,RoHSColor: Business BlackForm Factor: TowerRack Height: 5UHeight: 16.9" (429.3 mm)Width: 7.7" (195.1 mm)Depth: 23.4" (594.4 mm)Weight (Approximate): 27.99 kg

Dimensions & Weight

Dimensions: 16.92" x 7.67" x 23.42" (H x W x D)

Weight: Starting at 61.80 lbs

Plug Standards

Electrical Outlet Plug Type: Plug Type “A” (USA, Canada, Mexico, Japan)

Warranty, Returns, And Additional Information

Warranty
Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Customer Reviews of the Lenovo 70AQ000XUX

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 0% (0) 0% (0) 100% (1) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
John F. 7/16/2015 8:21:34 AM Ownership: 3/5	Rating: 3/5Good 2nd machine but obsolete. This review is from: Lenovo ThinkServer TS440 70AQ000XUX 5U Tower Server - 1 x Intel Xeon E3-1225 v3 3.20 GHz Pros: Can access while turned off. Great hot swaps. Using F12 key very easy multiple boots. Is an Xeon processor & Reasonably fast and snappy. Plenty of room for further hard drives over 4 it is set up for if you overcome PSU issues. Cons: Obsolete DDR3 Mem. Obsolete E3 CPU and the weakest one with no hyperthreading. The lines off the PSU do not allow expansion or an advanced Video Card so you have to tinker. Only SAS 6gb/s instead of the new 12gb/s. O.K. for second machine. Make first an E5 costing about $1000. Other Thoughts: I bought mine elsewhere for $300 as they are a glut on Lenovo's inventory as they become more obsolete. Do not over pay. Price out on Newegg an E5 with similar power CPU and SuperMircro keyboard about $1000.Then you get hyperthreading, DDR4 memory and 12 gb/s SAS. i.e. the cutting edge not last decade's product. 1 out of 3 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Filter Results

0% (0)
0% (0)
100% (1)
0% (0)
0% (0)

Verified Owners
Video Reviews
Mfr. Responses

John F.
7/16/2015 8:21:34 AM
Ownership: 3/5

Rating: 3/5Good 2nd machine but obsolete.

Pros: Can access while turned off. Great hot swaps. Using F12 key very easy multiple boots. Is an Xeon processor & Reasonably fast and snappy. Plenty of room for further hard drives over 4 it is set up for if you overcome PSU issues.

Cons: Obsolete DDR3 Mem. Obsolete E3 CPU and the weakest one with no hyperthreading. The lines off the PSU do not allow expansion or an advanced Video Card so you have to tinker. Only SAS 6gb/s instead of the new 12gb/s. O.K. for second machine. Make first an E5 costing about $1000.

Other Thoughts: I bought mine elsewhere for $300 as they are a glut on Lenovo's inventory as they become more obsolete. Do not over pay. Price out on Newegg an E5 with similar power CPU and SuperMircro keyboard about $1000.Then you get hyperthreading, DDR4 memory and 12 gb/s SAS.
i.e. the cutting edge not last decade's product.

1 out of 3 people found this review helpful. Did you? Yes
