Item#: N82E16859324025

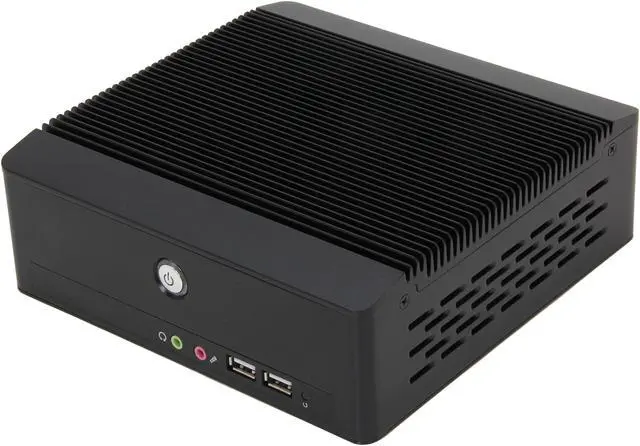

Habey BIS-6763 Fanless Intel Core-i3 mini PC with COM/Serial Port - OEM

  • Intel Core i3-2367M 1.4GHz 2C/4T
  • No Hard Drive
  • +12V DC power supply
ICON Loading...

Learn more about the Habey BIS-6763

Main

Brand
Habey
Model
BIS-6763

Processor

CPU Type
Intel Core i3-2367M 1.4GHz 2C/4T
Cache Memory
3MB
CPU Features
17W

Mainboard

Chipset
Intel HM65

Memory

Memory Type
DDR3
MAX Memory Capacity
4GB
Memory Features
1x DDRIII SODIMM 1066/1333MHz Slot

Storage

Hard Drive (Installed)
No Hard Drive
HDD Interface
SATA II

Graphic Controller

Graphic Type
Intel HD Graphics 3000

Networking

Ethernet Controller
1 x Gigabit Ethernet - 10/100/1000Mbps RJ5-45

Expansion

Expansion Slots
2x Mini PCIe slots (half size and full size slots)
Expansion Bays
1x 2.5" SATAII HDD/SSD Drive Bay, bottom plate access to storage bay
Other ports
USB: 6x USB2.0
COM: 1x RS-232
HDMI: 1x HDMI, Display 1920x1080
VGA: 1x VGA, Display 1920x1080
Audio: Integrated ALC662-GR 6-channel HD audio CODEC, 2xLine-out, 2xMic-In

Tech Spec

LEDs
Power/ HDD indicator

Software

Compatible/Certified OS
Windows XP/ Windows 7/ Windows XP Embedded, Windows Embedded Standard 7/ Win CE 6.0/ Linux Meego/ Linux Yacto/ VxWorks Wind River

Power

Power Characteristics
+12V DC power supply

Physical Spec

Dimensions
190 mm x 190 mm x 67 mm
Weight
3.6 lbs.

Features

Features
System Control: Power On/Off

Cooling System: Proprietary Fanless Thermal Design

Materials: Aluminum + Steel

Coating Processes: Aluminum

Mounting: 100x100mm VESA holes on case, Optional VESA Mount sold separately.

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Habey BIS-6763

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Derek K.
  • 6/23/2013 12:51:10 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

1 out of 5 eggsDifficult to use

Pros: This is a rugged and potentially powerful fanless computer that could be quite useful in a variety of non traditional settings.

Cons: As far as I can tell, there is no support or user community for this product. Calls and emails to Habey have all gone unanswered. An internet search results in a vacuum. There are no drivers listed on their website. The Intel website does not have drivers that are obviously useful for this product though that may change with more investigation.

Other Thoughts: I am in the habit of placing computers in remote and hostile location for monitoring tasks so I was excited to see a fanless rugged computer appear at this price point. The i3 mobile processor also promised better performance than the usual atom processor fare. However, at least under WinXP this has been an exceptionally difficult product to use.
Initially I could not get the product to POST. That was however related to the seating of the memory in its socket which was for me uncomfortably tight. That being resolved, the unit powered on and the BIOS was accessible. Memory, SSD and attached external USB CD drive were recognized. Predictably, WinXP did not find a SATA driver and installation of WinXP required slip streaming the Intel Moble Express Chipset SATA ACHI Controller onto the WinXP installation disc using nLite. It is at this point that I am stalled. There are a number of subsystems that lack drivers and they are predictable. Ethernet, video, SM bus all lack drivers. The standard Intel drivers downloaded off the Intel site do not work here.
I have further contacts out to Habey peding and I will post addendums to this review should I discover drivers that will allow this computer to function. I am planning on continuing to work with this computer for a while longer in hopes if actually getting it to function.
