TRENDnet TV-IP651W 640 x 480 MAX Resolution RJ45 Wireless N PTZ Internet Camera

(1) |

Write a Review

Wireless Camera
RJ45
1/5" CMOS Sensor
640 x 480 MAX Resolution

TV-IP651W Wireless N PTZ Internet Camera

The Wireless N PTZ Internet Camera, model TV-IP651W, provides security over a large area. Pan the camera side-to-side a remarkable 340 degrees and tilt up-and-down 115 degrees from any Internet connection. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 640 x 480 pixel (VGA) video at up to 20 frames per second (fps). Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan / tilt Auto-Patrol, date-and-time overlays, one-way audio, an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

Overview – TV-IP651W

Pan 340° side-to-side and tilt 115° up-and-down

High speed wireless n connection

Program motion detection recording, recording schedules, email alerts and more with complimentary software

1-way audio

Surveillance Solutions

Video Specs:

4x digital zoom

Supports up to 640 x 480 pixel MJPEG resolution at up to 20 frames per second
Minimum illumination: 1 lux

Audio Specs:

Built-in omni-directional microphone
Sensitivity: -38dB +/- 3dB (5 meters max)
Frequency: 100~20000Hz

Package Contents:

TV-IP651W
CD-ROM (Utility & User's Guide)
Multi-Language Quick Installation Guide
Network cable (1.5 m / 5 ft.)
Power adapter (12V DC, 1.25A)
Camera mounting kit

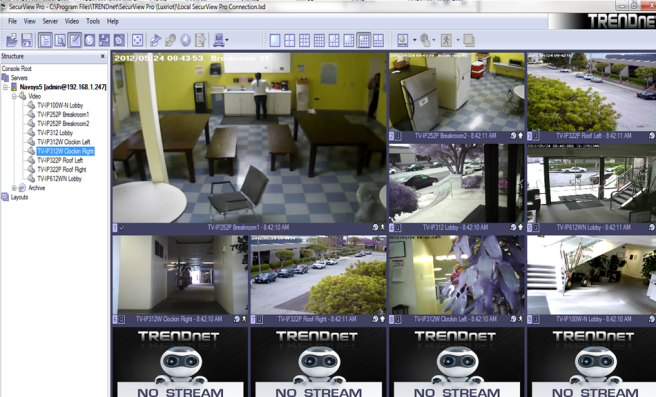

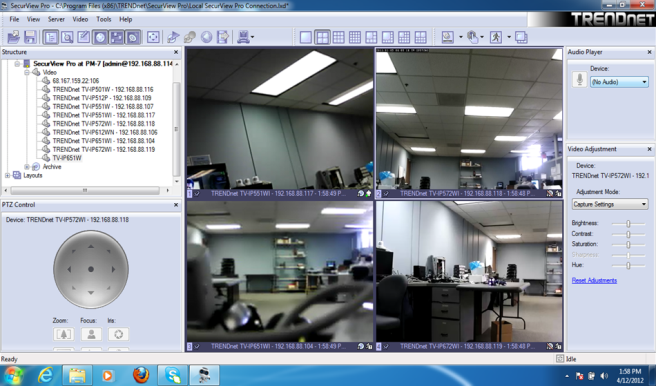

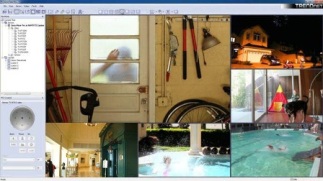

SecurView Pro Camera Software:

Learn more about the TRENDnet TV-IP651W

Model

Brand: TRENDnet

Model: TV-IP651W

Spec

Type: Wireless Camera

Connection Type: RJ45

Wireless Standard: IEEE 802.11b/g/n

Wireless Frequency: 2.4 - 2.497Ghz

Wireless Data Rate: Up to 150Mbps

Wireless Antenna: 1 x detachable 2dBi dipole antennas (Reverse-SMA connector)

Ports: IEEE 802.3u 10/100Mbps Auto-MDIX Fast Ethernet

Networking Protocol: IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
PPPoE
UPnP

Pan/Tilt/Zoom: Pan: -170 degree ~ +170 degree
Tilt: up 90 degree and down 25 degree
Auto-Patrol preset positions: 24
Digital Zoom: 4x

Sensor: 1/5" CMOS Sensor

MAX Resolution: 640 x 480

Video Capture Resolution: 640x480,320x240,160x120

Frame Rate: Up to 30fps

Lens Type: Board Lens
Focal Length: 4 mm
F/No: 1.5

Security: 64/128-bit WEP, WPA/WPA2-PSK

Audio: Built-in omni-directional microphone
Sensitivity: -38dB +/- 3dB (5 meters max)
Frequency: 10~20000Hz
S/N: >60dB
Format: PCM

Operating Systems Supported: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit)
Windows Server 2003, 2008

Power: Input: 100~240V, 50/60Hz 0.5A
Output: 12V, 1.25A external power adapter

Feature

Features: Wi-Fi compliant with IEEE 802.11n standard

Backwards compatible with IEEE 802.11g and IEEE 802.11b devices

One touch WPS connection button

1 x 10/100Mbps Auto-MDIX RJ-45 port (for optional wired installation)

Power and activity LED indicators (can be disabled)

1-way audio

4x digital zoom

Dynamic DNS support

Supports up to 640 x 480 pixel resolution at up to 20 frames per second

Image controls: Brightness, contrast, saturation, flip image vertically, mirror image horizontally

Define a recording schedule or motion detection recording

Create motion detection fields of any shape over the viewing area

Supports TCP/IP networking, Email, HTTP, and other Internet protocols

System controls:
Define up to 64 user login accounts
Set the date and time or synchronize with an NTP server

Supports wireless encryption up to WPA2-PSK

Quick Universal Plug and Play (UPnP) installation

Complimentary SecurView Pro software: manage up to 32 cameras *

SecurView Pro software compatible with Windows operating systems

Mounting base and mounting hardware included

*Monitoring multiple cameras may require a high performance CPU.

Quick Info

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years

Manufacturer Contact Info

Customer Reviews of the TRENDnet TV-IP651W

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (0) All Reviews (1) 100% (1) 0% (0) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
wayneworld 10/30/2012 2:58:40 PM Tech Level: 3/5 Ownership: 2/5 Verified Owner	Rating: 5/5good picture quality, fast shipping from newegg Pros: Good picture quality. Easy initial setup. Cons: Need to also setup the router for viewing from other locations. Other Thoughts: I set the camera up initially on my own for viewing when I am at home and a friend of mine helped me setup the router and signed up for dynamic dns account and now I can see the camera when I am at the office. Really happy with the results, but just wish the setup process is easier. 2 out of 2 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Filter Results

wayneworld
10/30/2012 2:58:40 PM
Tech Level: 3/5
Ownership: 2/5
Verified Owner

Rating: 5/5good picture quality, fast shipping from newegg

Pros: Good picture quality.
Easy initial setup.

Cons: Need to also setup the router for viewing from other locations.

Other Thoughts: I set the camera up initially on my own for viewing when I am at home and a friend of mine helped me setup the router and signed up for dynamic dns account and now I can see the camera when I am at the office.
Really happy with the results, but just wish the setup process is easier.

2 out of 2 people found this review helpful. Did you? Yes
