TRENDnet TV-IP572PI 1280 x 800 MAX Resolution RJ45 Megapixel PoE Day / Night Internet Camera

(1) |

Write a Review

Wired Camera
RJ45
1/4" CMOS Sensor
1280 x 800 MAX Resolution

The Megapixel PoE Day/Night Internet Camera, model TV- IP572PI, transmits real-time Megapixel video over the Internet. Record crisp video in complete darkness for distances of up to 7.5 meters. No need to install this camera near a power source, power and data are received through a single Ethernet cable using Power over Ethernet (PoE) technology (See TRENDnet PoE Switches and Injectors).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, H.264/MPEG-4/MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall/ceiling mounting kit is included and the camera's off white housing blends into most environments.

Learn more about the TRENDnet TV-IP572PI

Model

Brand: TRENDnet

Model: TV-IP572PI

Spec

Network Camera: Yes

Type: Wired Camera

Connection Type: RJ45

Ports: 1 x 10/100 Mbps Auto-MDIX Fast Ethernet

Networking Protocol: IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
LLTD
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP

Pan/Tilt/Zoom: Digital Zoom: 4x

Sensor: 1/4" CMOS Sensor

MAX Resolution: 1280 x 800

Frame Rate: 30fps

Lens Type: Board Lens
Focal Length: 4 mm
F/No: 1.5

Night Vision: Yes

Audio: Built-in omni-directional microphone
Sensitivity: -40 dB +/- 3 dB (5 meters max)
Frequency: 100~20000 Hz
S/N: >60 dB
Codec: PCM / ADPCM
External speaker output (speaker sold separately)
Two-way audio with echo canceling

Operating Systems Supported: To Run software: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008

Power over Ethernet: IEEE 802.3af Power over Ethernet

Power: Input: 100~240V, 50/60 Hz, 0.2A
Output: 5V, 1.2A external power adapter

Feature

Features: Day / Night:
Built-in ICR
Nigh vision (IR) supports up to 7.5 meters

LED: Power, Link / Act

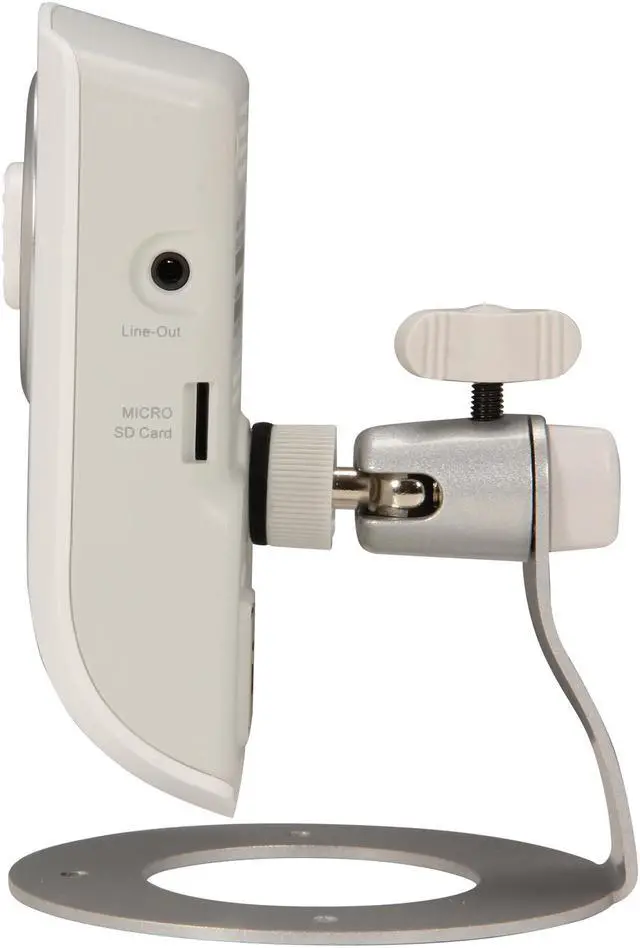

Micro SD slot: Supports Micro SD (up to 32GB)

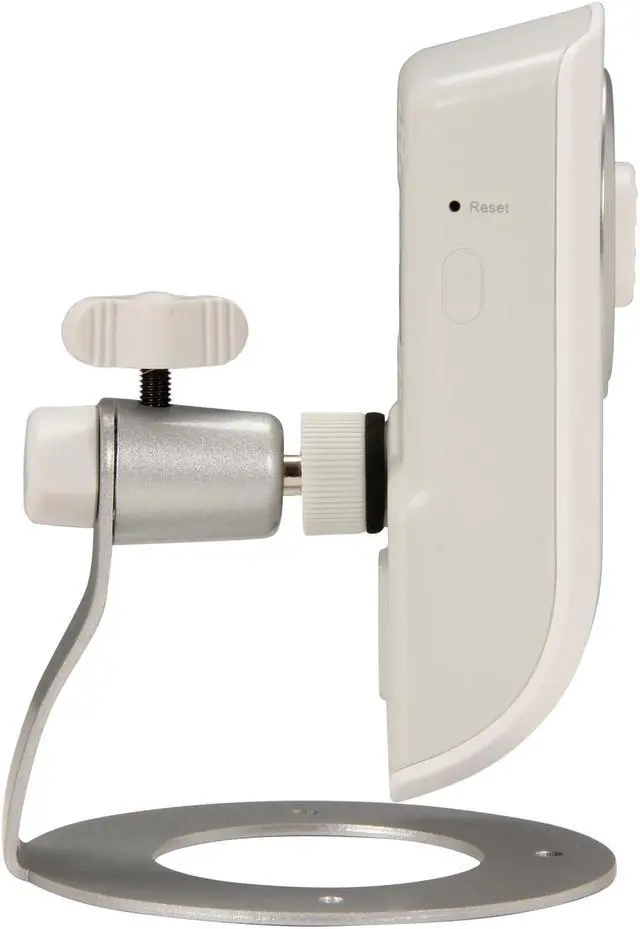

Reset Button: Reset to factory default

Management Interface: Internet Explorer 7.0 or above, Firefox, Safari, and Chrome

Management:
System: Web based administration; NIPCA support
Access: Up to 20 user accounts
Backup / Restore: Save / retrieve configuration files
Log: System log up to 500 entries
Micro SD: View, download, delete files; Format and remove Micro SD card

Image:
Brightness, contrast, saturation, sharpness, white balance, flip, mirror (horizontal / vertical), black & white, indoor, outdoor, schedule mode
Shutter: 1/3.25s, 1/7.5s, 1/10s, and 1/15s

Video Setting:
Profile 1: H.264 / MPEG-4:
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 2: H.264 / MPEG-4:
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 3: MJPEG:
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 1280 x 800 @ 5fps, 640 x 400 / 320 x 192 @ 30fps
JPEG quality: Low, Fair, Standard, Good, Excellent
-Profile 4: H.264 / MPEG-4:
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
RTSP: http://ipcamera_ip/3gpp

3GPP:
Video codec: MPEG-4 (no audio support)
Protocols: RTSP, RTP

Recording:
Resolution: Define individual resolution for up to 4 profiles
Required storage: 32 MB (minimum per profile)
Recording type: event based (motion detection and digital input trigger), continuous, and scheduled

Event Action:
Trigger event: motion detection or digital input signal
Action: send real-time snapshot or video recording to FTP or email

Port Settings:
HTTP port: 80 (default)
RTSP port: 554 (default)

Time: Synchronize with NTP server or set time / date manually

Dimension: 75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)

Weight: 125 g (4.4 oz.)

Quick Info

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years

Manufacturer Contact Info

Customer Reviews of the TRENDnet TV-IP572PI

Do you own this product? Write a Review

Filter Results Last 2 Weeks (0) Last 6 Months (1) All Reviews (1) 100% (1) 0% (0) 0% (0) 0% (0) 0% (0) Verified Owners Video Reviews Mfr. Responses keyword Go
MeduZa 4/11/2013 6:36:43 PM Tech Level: 5/5 Ownership: 4/5 Verified Owner	Rating: 5/5A good cam! Pros: Is a good cam and have several nice features like Night vision, web interface, PoE, small, cheap. I connected it to my Rack's switch to monitor the room (security) was working fine from the 1st day. Easy to setup Cons: Not linux software, I connected this cam to a Ubuntu server, but the provided software runs only on windows or Macs, the Android version works fine but have several issues (like unable to set a dynamic address, only static ips) Other Thoughts: Even without Linux software the cam can be used with no problems using a web browser. Other features not tested yet! 1 out of 1 people found this review helpful. Did you? Thanks for the valuable feedback you provided!

Filter Results

MeduZa
4/11/2013 6:36:43 PM
Tech Level: 5/5
Ownership: 4/5
Verified Owner

Rating: 5/5A good cam!

Pros: Is a good cam and have several nice features like Night vision, web interface, PoE, small, cheap.
I connected it to my Rack's switch to monitor the room (security)
was working fine from the 1st day.
Easy to setup

Cons: Not linux software, I connected this cam to a Ubuntu server, but the provided software runs only on windows or Macs, the Android version works fine but have several issues (like unable to set a dynamic address, only static ips)

Other Thoughts: Even without Linux software the cam can be used with no problems using a web browser.

Other features not tested yet!

1 out of 1 people found this review helpful. Did you? Yes
