TRENDnet TV-IP672W Megapixel Wireless N PTZ Internet Camera

Skip Image Gallery

TRENDnet TV-IP672W 1280 x 800 MAX Resolution RJ45 Megapixel Wireless N PTZ Internet Camera

Be the first to review this product...

TV-IP672W Megapixel Wireless N PTZ Internet Camera

The Megapixel Wireless N PTZ Internet Camera, model TV-IP672W, provides security over a large area. Pan the camera side-to-side a remarkable 340° and tilt up-and-down 115° from any Internet connection. Wireless n technology provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS).

Record 1280 x 800 Megapixel (WXGA) video at up to 30 frames per second (fps). Manage up to four video profiles to record HD video while streaming low resolution video to a compatible smart phone at the same time. Manage up to 32 TRENDnet cameras with the included complimentary camera management software. Advanced features include adjustable motion detection recording areas, email alerts, scheduled recording sessions, pan / tilt, Auto-Patrol, H.264 / MPEG-4 / MJPEG image compression, date-and-time overlays, a Micro-SD card slot for backup storage, two-way audio (speakers not included), an adjustable lens, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

Overview – TV-IP672W

See more with Megapixel resolution up to 1280 x 800 (WXGA)

Pan 340° side-to-side and tilt 115° up-and-down

High speed wireless n connection

Program motion detection recording, recording schedules, email alerts and more with complimentary software

2-way audio

Surveillance Solutions

Video Specs:

4x digital zoom

Sensor: 1/4" CMOS Sensor
Minimum illumination: 1 lux

Audio Specs:

2-way audio: built-in omni-directional microphone
Sensitivity: -40 dB +/- 3 dB (5 meters max)
Frequency: 100~20000 Hz

Package Contents:

TV-IP672W
CD-ROM (Utility & User's Guide)
Multi-Language Quick Installation Guide
Network cable (1.5 m / 5 ft.)
Power adapter (12V, 1.25A)
Camera mounting kit

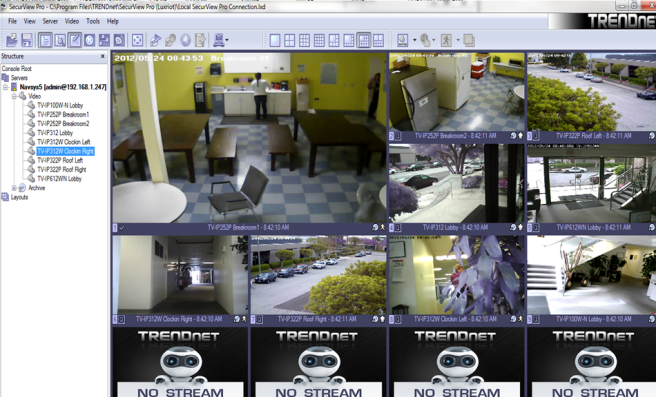

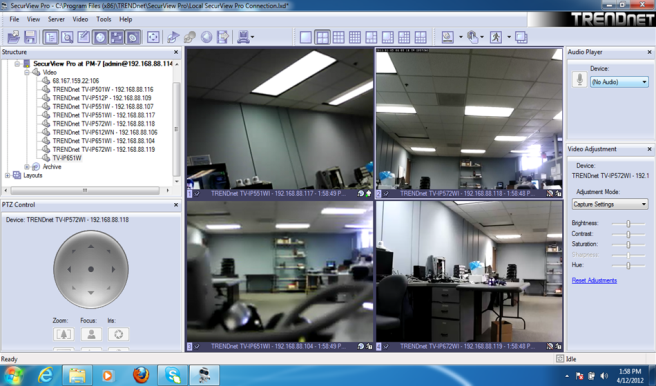

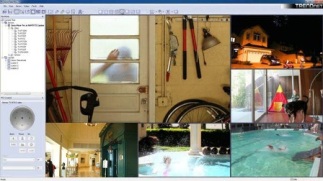

SecurView Pro Camera Software:

Learn more about the TRENDnet TV-IP672W

Model

Brand: TRENDnet

Model: TV-IP672W

Spec

Network Camera: Yes

Type: Wireless Camera

Connection Type: RJ45

Wireless Standard: IEEE 802.11b/g/n

Wireless Frequency: 2.4 - 2.483Ghz

Wireless Data Rate: Up to 150Mbps

Wireless Antenna: 1 x detachable 2dBi dipole antenna (Reverse-SMA connector)

Ports: 1 x 10/100Mbps Auto-MDIX Fast Ethernet
Micro SD card slot

Networking Protocol: IPv4, ARP, TCP, UDP, ICMP
DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client
HTTP
Samba Client
PPPoE
UPnP
LLTD
RTP (Real Time Protocol)
RTCP (Real Time Control Protocol)
RTSP (Real Time Streaming Protocol)
3GPP (video only)

Pan/Tilt/Zoom: Pan: - 170 ~ + 170 degree
Tilt: up 90 and down 25 degree
Digital Zoom: 4x

Sensor: 1/4" CMOS Sensor

MAX Resolution: 1280 x 800

Video Capture Resolution: H.264 / MPEG-4: 1280 x 800, 640 x 400, 320 x 192, 160 x 96

Frame Rate: 30fps

Lens Type: Board Lens
Focal Length: 4 mm
F/No: 1.5

Security: Wireless: 64/128-bit WEP, WPA/WPA2-PSK

Audio: Built-in omni-directional microphone
Sensitivity: -40dB +/- 3dB (5 meters max.)
Frequency: 100~20000Hz
S/N: >60dB
Format: PCM/ADPCM
External speaker output (speaker sold separately)
Two-way audio with echo canceling

Operating Systems Supported: Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008

Power: Input: 100~240V, 50/60Hz 0.5A
Output: 12V, 1.25A external power adapter

Feature

Features: LED: Power, Link/Act

Reset Button: Reset to factory default

Privacy Button: Privacy mode on/off

Management Interface: Internet Explorer 7.0 or above, Firefox, Safari, and Chrome

Management:
System: Web based administration
Access: Up to 20 user accounts
Backup / Restore: Save/retrieve configuration files
Log: System log up to 500 entries
Micro SD: View, download, delete files, Format and remove Micro SD card

Video Setting:
-Profile 1: H.264 / MPEG-4
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 2: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
-Profile 3: MJPEG
Resolution: 1280 x 800, 640 x 400, 320 x 192, 160 x 96
Max frame rate: 1280 x 800 @ 5fps, 640 x 400/320 x 192@30fps
JPEG quality: Low, Fair, Standard, Good, Excellent
-Profile 4: H.264 / MPEG-4
Resolution: 640 x 400, 320 x 192, 160 x 96
Max frame rate: 30fps
RTSP: http://ipcamera_ip/3gpp

Quick Universal Plug and Play (UPnP) installation

Packaging

Package Contents: TV-IP672W
CD-ROM (Utility & User's Guide)
Multi-Language Quick Installation Guide
Network cable (1.5 m / 5 ft.)
Power adapter (12V, 1.25A)
Camera mounting kit
