TRENDnet TV-IP851WC 640 x 480 MAX Resolution RJ45 Wireless PTZ Cloud Camera

Be the first to review this product...

Wireless Camera
RJ45
1/5" CMOS Sensor
640 x 480 MAX Resolution

TV-IP851WC Wireless PTZ Cloud Camera

TRENDnet's Wireless PTZ Cloud Camera, model TV-IP851WC, takes the work out of viewing video over the internet. Previously to view video remotely, users needed to perform many complicated and time consuming steps: such as signing up for a third party dynamic IP service and reconfiguring their router. The TRENDnet Cloud service removes all of these complicated steps. Users simply open a web browser and log into the TRENDnet Cloud with their unique password to view and manage this camera. A free app for mobile devices brings live video to smart phones and tablets.

About the TV-IP851WC

Pan the camera side-to-side a remarkable 340° and tilt up-and-down 115° from any internet connection. Wireless n technology connects the camera to a wireless network and provides unsurpassed wireless coverage and improved streaming video quality. Add this camera to your wireless network at the touch of a button with Wi-Fi Protected Setup (WPS). The TV-IP851WC offers 640 x 480 (VGA) video at up to 20 frames per second (fps), one-way audio, an adjustable lens, motion detection recording, scheduled recordings, email alerts, pan / tilt, Auto-Patrol, date and time overlay, and four times digital zoom. A wall / ceiling mounting kit is included and the camera's off white housing blends into most environments.

About SecurView Pro Management Software

Users can either control each TRENDnet camera individually or can use the free included enterprise class SecurView Pro software to manage up to 32 cameras. SecurView Pro is compatible with Windows and Microsoft Server operating systems and supports all current TRENDnet cameras.

SecurView Pro provides users with extensive camera viewing options. Users can define a combination of weekly recording schedules and motion detection recording; program motion detection areas of any shape; set date, time, and text overlays; and define mask overlays to conceal sensitive areas.

Zero loss architecture provides the ability to record a single video stream to multiple locations simultaneously. Manage recorded files by time or by storage space. A navigation timeline of stored video provides a quick visual reference of recorded content.

Overview – TV-IP851WC

View and manage your camera with TRENDnet's free cloud service

Pan 340° side-to-side and tilt 115° up-and-down

High speed wireless n connection

Program motion detection recording, recording schedules, email alerts and more with complementary software

Wall / ceiling mounting kit

Free mobile App

Networking Solution

Video Specs:

4x digital zoom

Supports up to 640 x 480 pixel MJPEG resolution at up to 20 frames per second

Minimum illumination: 1 lux

Audio Specs:

Built-in omni-directional microphone

Sensitivity: -38dB +/- 3dB (5 meters max)

Frequency: 100~20000Hz

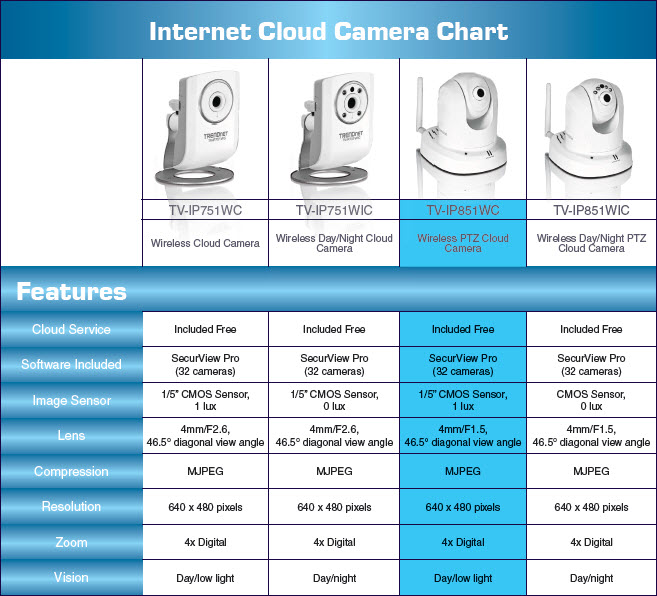

TRENDnet Wireless Router Comparison Chart

Package Contents:

TV-IP851WC

CD-ROM (Utility, software, & User's Guide)

Multi-Language Quick Installation Guide

Network cable (1.5 m / 5 ft.)

Power adapter (12V DC, 1.25A)

Camera mounting kit

Learn more about the TRENDnet TV-IP851WC

Model

Brand: TRENDnet

Model: TV-IP851WC

Spec

Network Camera: Yes

Type: Wireless Camera

Connection Type: RJ45

Wireless Standard: IEEE 802.11b/g/n

Wireless Frequency: 2.4 - 2.497Ghz

Wireless Data Rate: Up to 150Mbps

Wireless Antenna: 1 x detachable 2 dBi dipole antennas (Reverse-SMA connector)

Ports: IEEE 802.3u 10/100 Mbps Auto-MDIX Fast Ethernet

Pan/Tilt/Zoom: Pan: -170 ~ +170 degree
Tilt: up 90 and down 25 degree
Auto-Patrol preset positions: 24
Digital Zoom: 4x

Sensor: 1/5" CMOS Sensor

MAX Resolution: 640 x 480

Frame Rate: VGA @ 20fps, QVGA @ 30fps, QQVGA @ 30fps

Lens Type: Board Lens
Focal Length: 4 mm
F/No: 1.5

Security: Wireless: 64/128-bit WEP, WPA/WPA2-PSK

Audio: Directional microphone
Sensitivity: -38 dB +/- 3 dB (5 meters max)
Frequency: 10~20000 Hz
S/N: >60 dB
Format: PCM

Power: Input: 100~240V, 50/60 Hz, 0.5A
Output: 12V, 1.25A external power adapter

Feature

Features: LED: Power, Link / Act

WPS Button: Push to enable WPS

Reset Button: Reset to factory default

Privacy Button: Privacy mode on / off

To Run software:
Windows 8, Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows Server 2003, 2008

Channels: 1~11 (FCC), 1~13 (ETSI)

Dimension: 113 x 113 x 130 mm (4.5 x 4.5 x 5.1 in.)

Weight: 505 g (1.1 lbs.)

Quick Universal Plug and Play (UPnP) installation

* Monitoring multiple cameras may require a high performance CPU

Packaging

Package Contents: TV-IP851WC
CD-ROM (Utility, Software & User's Guide)
Multi-Language Quick Installation Guide
Network cable (1.5 m / 5 ft.)
Power adapter (12V DC, 1.25A)
Camera mounting kit
