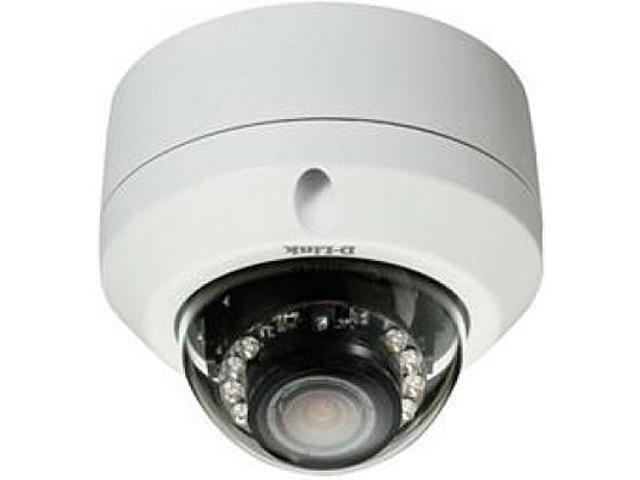

D-Link DCS-6314 2MP Full HD WDR Weatherproof Vandal-proof Outdoor Dome PoE IP Camera (ONVIF)

2MP Full HD 1920 x 1080
2.8 to 12mm Variable Focal Lens
IP68 Weatherproof & IK10 Vandal-proof
Night Vision w/ IRC
H.264/MPEG-4 Multicast streaming
2-Way Audio
PoE

Overview
Specifications
Warranty & Returns
Reviews
Q&A

The D-Link DCS-6314 Full HD Outdoor Fixed Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for accessories.

Learn more about the D-Link DCS-6314

Model

Brand: D-Link

Model: DCS-6314

Details

Network Camera: Yes

Type: Dome Camera

Connection Type: RJ12

Color: White

Network

Networking Protocol: IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS
CoS
Multicast
ONVIF compliant

Ports: 10/100 BASE-TX Ethernet port with PoE
1 DI / 1 DO
DC12 V, 100 mA Output
micro SD/SDHC Card Slot
Audio Input / Output

Camera

Pan/Tilt/Zoom: (H) 96.5 - 31.2 degree
(V) 64.5 - 17.8 degree
(D) 117.5 - 36.8 degree

Sensor: 1/2.8" CMOS

MAX Resolution: 1920 x 1080

Video Capture Resolution: 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps

Frame Rate: 30fps

Lens Type: Optical Zoom Lens

Power

Power over Ethernet: Yes

Power: Input: 100 to 240 V AC, 50/60 Hz
Output: 12V DC 1.25 A
