Item#: N82E16881667009

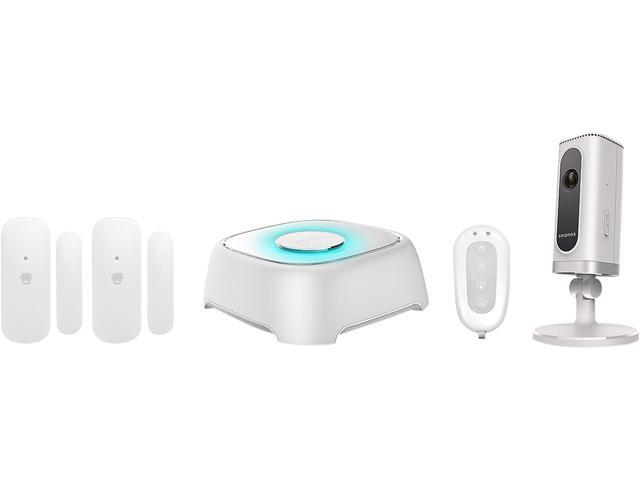

Smanos W020i DIY WiFi Burglar Alarm + Camera Kit

Sold and Shipped by Newegg

  • WiFi Burglar Alarm w/ Built-in Siren
  • 720P HD w/ SONY 1/3" CMOS sensor
  • 2.4mm Lens: 110 degree Angle View
  • Night Vision, Bulit-In 2 Way Audio
  • Micro SD Card Slot
  • Smart Control via Smartphone App

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Security Alarm System
W020

IP6 HD WiFi Camera
Perfect for Residential and SOHO Applications

Smart life
Security Beauty Comfort
All in Your Hands


W020WiFi Alarm System

Security Simplified

The W020 is ready to go as soon as you connect it to your WiFi router. Add wireless sensors and accessories to the system directly on your smartphone app anytime as you wish, as your security or smart home needs evolve. smanos W020 is ideal for residences, SOHOs and small shops.

Smanos
Security in Disguise

Smanos W020 comes with futuristic curved design and simplistic elegance, so it blends in well with almost any type of residential décor. Discreet security that simply works is priceless.

Intuitive Operation
Smanos W020 stays true to plug-and-play. Simply plug in the power, download the free iOS or Android app, setup WiFi with Smart Link, add and pair wireless sensors or accessories, and you go out to play with complete peace of mind! System maneuvers such as siren volume and time, exit and entry delays, sensor additions or deletions, and many more intuitive settings can all be done with a few swipes and taps on your smartphone.

As Easy As 123
Who knew security could be this sexy? With no wires and no fuss, smanos W020 is a smart system that will grow on you and grow with you. From door/window contacts and PIR motion sensors to flood, gas and smoke detectors, everything is wireless and will go wherever you want them to with 3M tapes, turning your security reinforcement into a fun DIY project.



Smanos

Security Redefined
Security resilience is built in the system, with 1 million radio frequency codes combinations.

Smanos

Reliable Tech
With world-class, proprietary 868/915 MHz wireless protocol, smanos W020 ensures long-distance, interference-free communication within the system. It makes sure you get the call (in the form of push notifications).

Smanos

On Guard 24/7
Smanos W020 works around the clock and stays vigilant at all times without dozing off (like security guards do). Its backup battery ensures 60 hours of extra vigilance in the event of power outage or sabotage.


Smanos Smanos

Digital Scarecrow
When smanos W020 is triggered, it goes off loud, formidably so. The system will also send you push notifications in real time, so you are always in the know no matter where you are.


Enjoy Peace of Mind with Smartphones
Multiple family users and multiple smartphones (Android or iPhone) can access the same system at the same time.



Your smart eye and smart ear into your smart home when you are away

The IP6 is an all-newaddition to the smanos wireless smart home portfolio. Download the App by searching "IP6 camera" from App Store or Google Play or just scan our QR code in the package's back. Then follow the steps and add the camera into your App. Via the App, you get to see and hear what's going on in your property anywhere, anytime. The built-in HiFi microphone and speaker ensure high-quality two-way audio communication, and the industrial-grade SONY image sensor renders sharp video footage round the clock. Together with smanos intrusion alarm system, you get to enjoy a smart and secure home or SOHO effortlessly and affordably.



Always in the Know, on the Go
Remote Monitoring – of Your Home, Office, Family, Pets – Made Easy





Smanos

Full HD Video at 720p

Smanos

Crystal Clear Even at Low Light

Smanos

WiFi Quick Link

Smanos

Smart Control via Smartphone App

Super Wide Angle, Super Coverage Day & Night

Armed with a high-caliber SONY IMX238 image sensor and a wide-angle 5-megapixel lens, smanos IP6 offers unbeatable field of view and video quality in the DIY space, and renders clear visual confirmation and evidence even in super low-light conditions.

Smanos

Crystal Clear View & Stunning
Color Rendition

Smanos

Unsurpassed Night Vision with
Ambient Light Only

Smanos

Super Low-Lux Performance
without IR LEDs



HiFi Two-Way Audio Made Easy

Smanos

Good for up to 5 meters with advanced noise reduction capability, the highly sensitive, omnidirectional HiFi microphone in smanos IP6 sets another benchmark in two-way communication. Whether it's checking in on your elderly family members, pets or children, smanos IP6 guarantees delivery of what needs to be seen and heard.

Smanos


Share the View, Spread the Joy

Worldwide reach with next-gen processing power and Amazon server hosting,
smanos IP6 reliably delivers the view that matters the most to you, with
options to allow for simultaneous viewing by multiple users.

Security Guard that You Can Afford

When used along with a smanos intrusion alarm system, smanos IP6 offers you a sense of security that is easily visible and palpable. In the unfortunate event of a break-in, gas leak, fire or flooding, not only will you get an App notification in real time, you will also be able to look in on the scene to determine the proper course of action to take.

A sensor detects abnormality

Alarm goes off with SMS text/App/voice call notifications (model-dependent)

Got the call or notification

What's going on?!

Open up the IP6 App to check and take proper action

Voila, situation neutralized



WiFi Quick Link 101

Without any wireless settings or setup complications, all you need to do is turn on your IP6, download the free App, add cameras, and you get to enjoy a smart and secure home.

Smanos

Attention to Detail

Smanos
  1. Unsurpassed color rendition from SONY IMX238 image sensor
  2. Night vision made easy
  3. 110°filed of view + 360° turning possibilities
  4. Bank-grade firewall for proper privacy protection
  5. Surveillance-grade optics for crystal clear video footage
  6. Micro SD card that records in a loop
  7. HiFi microphone and speaker with noise reduction

Specifications


Model No: W020
Power Supply: DC12V 500mA
Battery: AA 1.5V LR6 x 4pcs
Standby Current: <140mA
Alarm Current: <270mA
Internal Siren: 105dB (High Volume)
Expandable Accessories: 10 remote controls, 30 sensors
Radio Frequency: 868MHz or 915MHz
Housing Material: ABS plastic
Operation Condition: Temperature: -10°C~+55°C
Relative Humidity: <80% (non-condensing)
Dimensions (L x W x H): 117 x 118.5 x 40.5mm
Image sensor Sony 1/3" CMOS sensor
Min. illumination 0.01Lux@ (F1.2, AGC ON)
Shutter time 1/50s to 1/100,000s
Lens 2.4mm F2.0
Angle of view 110°
Video compression H.264
Bit rate Self-adaption
Max. image resolution 1280 x 720
Frame rate 30fps (1280 × 720)
Storage Built-in microSD card slot, up to 32GB
Wireless standards IEEE802.11b/g/n
Frequency range 2.4 GHz ~ 2.4835 GHz
Channel bandwidth 20/40MHz Support
Operating conditions Temperature: -5 °C - 60 °C (23 °F - 140 °F)
Humidity: < 95% (non-condensing)
Power supply DC 5V 1A
Power consumption 5W MAX
Dimensions (L x W x H) 80 x 80 x 150 mm

Learn more about the Smanos W020+IP6

General

|
Brand
Smanos
Model
W020+IP6

Spec

|
Specifications
W20
Power Supply: DC 12 V, 500 mA

Battery: AA 1.5 V LR6 x 4 pcs

Standby Current: <140 mA

Alarm Current: <270 mA

Internal Siren: 105 dB (High Volume)

Expandable Accessories: 10 remote controls, 30 sensors

Radio Frequency: 868 MHz or 915 MHz

Housing Material: ABS plastic

Operation Condition: Temperature: -10 degree C ~ +55 degree C

Relative Humidity: <80% (non-condensing)

Dimension: 1.59" x 4.67" x 4.61"

IP6
Wireless standards: IEEE802.11b / g / n

Frequency range: 2.4 GHz ~ 2.4835 GHz

Image sensorSony: 1/3" CMOS sensor

Lens: 2.4 mm F2.0

Min. illumination: 0.01 Lux@ (F1.2, AGC ON)

Shutter time: 1/50 s to 1/100,000 s

Bit rate: Self-adaption

Max. image resolution: 1280 x 720

Storage: Built-in microSD card slot, up to 32 GB

Channel bandwidth: 20 / 40 MHz Support
Features
Both the alarm hub and camera connect to your home or dorm WiFi router via Quick Link, wirelessly

Hub works with Smanos cameras, detectors and sensors (up to 30), as well as remote key fobs (up to 10)

Anywhere, anytime remote control and monitoring via your iPhone or Android smartphone, seamlessly on one app

Up to 5 emergency contacts (the 1st one being Administrator) can be authorized to receive push notifications and interact with the system

Built-in 105 dB loud siren & backup AA batteries for on-site deterrence if power goes down (up to 60 hours)

Sleek design in disguise that fits in well with most residential decors
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details

Customer Reviews of the Smanos W020+IP6

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • Anonymous
  • 11/19/2015 7:41:32 AM
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsPerfection

Pros: Stable, stylish, simple to use. I researched a home security system heavily before making this purchase and I do not regret it. It was easily installed and it works incredibly well. The app is simple and integrates the IP6 camera which was a massive leave in quality and stability from my D-Link. When researching this product you won't get a lot of reviews in North America as its new to our market however I read all the reviews in Europe and I'm glad I did. There is nothing of this caliber being made stateside. Even comes with three deterrent stickers. I will be ordering the outdoor alarm and additional sensors. HIGHLY RECOMMEND.

Cons: Need to buy more sensors because I have a large home, but that's my choice.

Did you find this review helpful? Yes No

  • Anonymous
  • 7/20/2015 7:46:22 PM
  • Ownership: 1 week to 1 month

4 out of 5 eggsGreat system, especially for the money

Pros: It took me longer to read the instructions than it took to set it up but I think it would have not gone well if I hadn’t read the instructions. Be sure to know your network name and password as it will go much smoother with this in hand. I did not and had to stop, get up out of my chair and go get it!

One weird point was when I downloaded and opened the APP it tried connecting and then got some sort of offline message. I said okay and then went to the wifi icon, entered the network name and password and about two minutes later we were all set up.

Cons: The sensors are easy to install. I would recommend to install during the day or early evening as the alarm is very loud and not pleasing to the neighbors when testing it at 11:30pm.

Did you find this review helpful? Yes No
