Item#: N82E16882073007

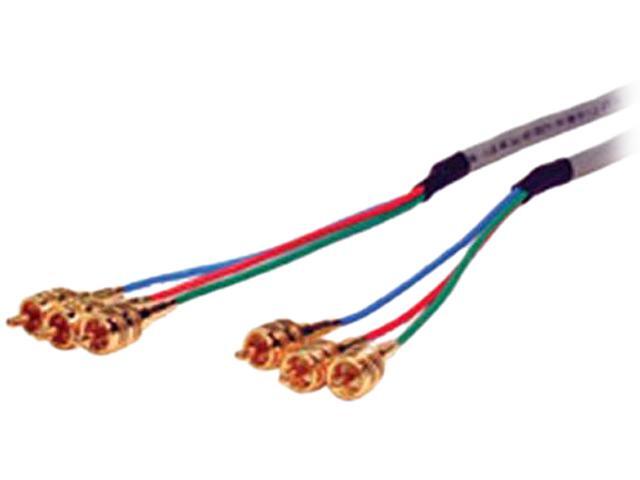

Comprehensive 3RCA-3RCA-35HRP 35 ft. Pro AV/IT Series Plenum 3 RCA plugs each end Component Video cable M-M

Sold and Shipped by Newegg

  • 6 Connector Number
  • Gray
  • M-M

ICON Loading...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

Since 1974, Comprehensive Pro AV/IT Series Cables have been trusted by Pro AV and I.T. systems integrators because of their legendary reliability, performance and value. That's why they have been the "go to" cable worldwide for boardrooms, classrooms, data centers, schools, government installations, stadiums, broadcast studios, stages and other mission critical applications. Pro AV/IT Series Cables are also perfect for anyone looking for premium quality connectivity at great price.

Pro AV/IT Series cables are perfect for anyone looking for very good quality at great price.

Pro AV/IT Series Plenum 3RCA component cables are professional grade construction which ensures extremely low attenuation and maximum signal transfer. 24k gold precision connectors provide maximum conductivity while triple shielding provides maximum rejection of all EM and RF interference. Pro AV/IT Series cables are extremely flexible which makes installation easy.Lifetime Warranty

When it has to work, it has to be Comprehensive!


Learn more about the Comprehensive Cable and Connectivity 3RCA-3RCA-35HRP

Model

|
Brand
Comprehensive
Model
3RCA-3RCA-35HRP

Details

|
Type
RCA Component
Type
RCA Component
Color
Gray
Length
35 ft.
Connector Number
6
Connector Detail
Connector Type 1: 3 RCA Male 75 ohm nickel over brass
Connector Type 2: 3 RCA Male 75 ohm nickel over brass
Terminal Gender
M-M
Specifications
Performance Grade: Better

Connector Finish: Gold

Center Conductor: 26 AWG Stranded Tinned Copper

Conductor Colors: Red, Green, Blue

Dielectric: .074" Foam Fluorinated Ethylene Propylene

Inner Shield: 95% Tinned Copper Spiral, 100% Aluminum/Mylar Wrap

Outer Shield: None

Impedance: 75 Ohms

Resistance: 41 Ohm/1000ft

Capacitance per Ft: 16.4 pF/ft

NOM Velocity of Propagation: 83%

Time Delay: 1.2nS/ft

Attenuation 100MHz at 100ft: 5.6dB

Attenuation 200MHz at 100ft: 8.1dB

Attenuation 400MHz at 100ft: 12.0dB

Attenuation 1000MHz at 100ft: 21.4dB

Jacket: Flex-Plenum

Jacket Color: Gray

Overall Diameter: .320"

UL Rating: CMP

Temperature Rating: 75 deg C

Weight Lbs: 4.8

RoHS Compliant: Yes

Features

|
Features
3RCA Male to 3RCA Male

Premium 26 AWG high resolution, low loss construction

95% tinned copper braided shield

Premium heavy duty star cut nickel over brass RCA connectors

X-traflex plenum jacket

UL listed cable and RoHS Compliant
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
  • Read full details
