Item#: N82E16882120194

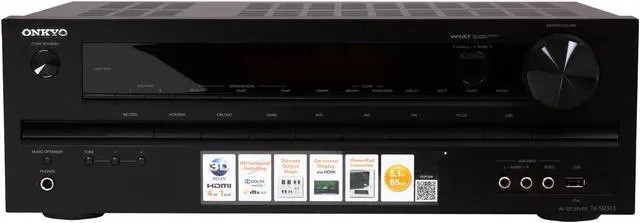

ONKYO TX-SR313 5.1-Channel 3D-Ready Home Theater Receiver

  • 5.1 channel 65W/channel
  • 4HDMI/3D passthrough
  • Dolby True HD, DD Plus, DTS-HD Master Audio
ICON Loading...



The TX-SR313 Receiver: Affordable Home Theater Just Got Much Better.

  • Onkyo's acclaimed WRAT (Wide Range Amplifier Technology)

  • Four HDMI® inputs and one output provide connectivity for your 3D TV, gaming consoles, and BD player

  • USB port offers a clean digital link to your iPod®/iPhone® or flash memory drive

  • Decodes a range of high-definition codecs such as Dolby® TrueHD and DTS-HD Master Audio™

  • HDMI-linked interactive on-screen display makes set-up and mid-program adjustment easy





Watch the introductory video for the TX-SR313
and scroll down for more highlights about the top features inside this A/V receiver.

super 3d action
3D Video and Audio Return Channel via HDMI
Four HDMI inputs on the TX-SR313 allow seamless integration of high-definition devices such as Blu-ray players, cable/satellite tuners, and gaming consoles. HDMI implementation on this receiver also supports an Audio Return Channel, allowing TV audio to be sent upstream to the A/V receiver. That means you can enjoy television programs in magnificent Onkyo sound. HDMI also supports 3D video and other popular high-resolution formats.

apple tv friendly made for iphone
Direct Digital Connection: The Cleanest Your iPod Can Sound
The front-panel USB port lets you play MP3 and AAC stored in an iPod/iPhone, and MP3, WMA, AAC, and FLAC audio files stored on a flash-memory device, and you can use the system's own remote for track selection and playback. Your music will sound much cleaner and clearer, as the audio signal is transported in digital rather than analog form through the direct digital connection.

Have an Apple TV? The Onkyo remote is preset to control Apple TV.
Use it with your Onkyo A/V Receiver. It's all integrated, and it all works together beautifully.

3d ready
ONKYO's Proprietary WRAT Technology
WRAT improves the fidelity of amplified audio and reduces noise across the frequency range, guaranteeing a well-balanced performance even with the most dynamic soundtracks. It achieves this by employing a low negative-feedback amplifier design; using "closed" ground-loop circuitry to cancel noise from individual circuits; and by ensuring high instantaneous-current capability. Also Onkyo uses discrete transistors, which help guarantee a consistent, stable supply of current to the speaker system for an open and assured performance.

On screen display via hdmi
Easy Access For Settings Changes
The TX-SR313's overlaid On-Screen Display (OSD) feature makes changing the settings on your A/V receiver quick and easy. On-screen set-up menus appear over the video image you're watching so you can adjust the settings immediately, without having to stop the program and switch to a different screen to access menus.

Compare-Onkyo


© Copyright 2012 Onkyo USA Corporation. All rights reserved.
Onkyo features and specifications subject to change without notice.

  • newegg Wide Range Amplifier Technology Onkyo’s Wide Range Amplifier Technology tunes up the volume and filling your entertainment room with noise-free, impressively powerful, true-to-life sound. The WRAT family of technologies includes a broader frequency range with lower noise entering the signal path – perfectly suited for new high resolution DVD-Audio and SACD formats.
  • newegg True-to-Life, High-Definition Audio The ONKYO TX-SR313 receiver pumps out 65 watts of audio power per channel to achieve incredible sound quality and clarity. It supports high-definition audio formats like Dolby TrueHD, DD Plus and DTS-HD Master Audio to give your Blu-ray Disc movies a soundtrack unsurpassed audio quality.
  • newegg Ready for 3D With support for the latest HDMI specification, your ONKYO TX-SR313 is ready for the next generation of 3D video content. Four 1080p capable HDMI inputs give you plenty of connectivity options for the growing number of high-definition sources available. And, the receiver also offers 4 DSP Gaming Modes: Rock, Sports, Action, and Role Playing.
  • newegg On-screen Display A new interactive on-screen display via HDMI makes set-up and mid-program adjustment easy.

Learn more about the Onkyo TX-SR313

General

Brand
ONKYO
Type
Receiver
Model
TX-SR313
Color
Walnut
Channels
5.1-Channel

Processing

Power Output
Front L/R (8 ohm, 20 Hz-20 kHz, FTC): 65 W/Ch

Center (8 ohm, 20 Hz-20 kHz, FTC): 65 W

Surround L/R (8 ohm, 20 Hz-20 kHz, FTC): 65 W/Ch
Frequency Response
20 Hz - 50 kHz
THD
0.08% (20 Hz-20 kHz, Half Power)
Decoder
DOLBY Decoder: True HD, DD Plus

DTS Decoder: DTS-HD Master Audio
D/A Converter
Audio D/A Converter: 192K/24 Bit (Burr-Brown)
Speaker Switching
Speaker A/+B
Audio
Onkyo Game Surround Modes

Direct

Advanced Music Optimizer

Radio

FM/AM Tuner
Usable Sensitivity
FM Mono: 11.2 dBf, 1.0 uV (75 ohm IHF)
FM Stereo: 17.2 dBf, 2.0 uV (75 ohm IHF)
AM: 30 uV

S/N Ratio
FM Mono: 76 dB (IHF-A)
FM Stereo: 70 dB (IHF-A)
AM: 40 dB

THD
FM Mono: 0.2 %
FM Stereo: 0.3 %
AM: 0.7 %

FM Stereo Separation: 45 dB at 1 kHz, 30 dB at 100 Hz-10 kHz

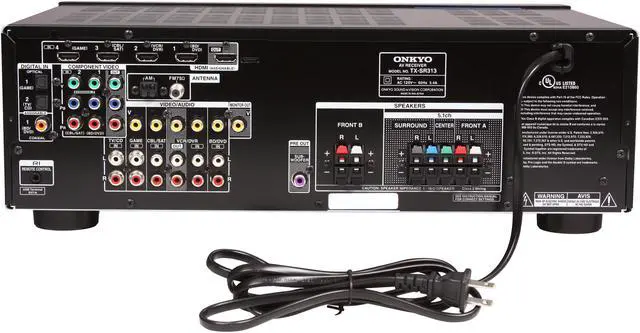

Connectivity

HDMI
4 In / 1 Out
Component Video
2 In / 1 Out
Digital Optical Audio
2 In
Digital Coaxial Audio
1 In
Pre-Amp Out
Sub
USB Port
Front-Panel USB Input (made for iPod/iPhone)
iPod Compatibility
iPod Ready (optional DS-A4, direct USB input)
Other Connectors
Audio I/O: 6 / 1

Composite I/O: 5 / 1

Specification

Remote Control
Yes
Other Specifications
Damping Factor (1 kHz, 8 ohm): 60

Input Sensitivity and Impedance (CD and Tape Play): 200 mV, 47 k ohm

Output Level and Impedance
Tape Rec: 200 mV, 470 ohm
Pre Out: 1.0 V, 470 ohm

S/N Ratio: 100 dB (Line, IHF-A)

Tone Controls
Bass: +/- 10 dB at 50 Hz
Treble: +/- 10 dB at 20 kHz

Dimensions & Weight

Dimensions
17-1/8" x 5-7/8" x 12-1/2" (W x H x D)
Weight
16.8 lbs.

Quick Info

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year


Customer Reviews of the Onkyo TX-SR313

Do you own this product? Write a Review

Filter Results

Go
  • N/A
  • 4/20/2013 4:24:49 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsCan't go wrong..

Pros: Price

Cons: None I can find.

Other Thoughts: This receiver is awesome for 150.00 bucks. Does what I want.

Did you find this review helpful? Yes No

  • GreyTalon
  • 4/11/2013 6:09:27 AM
  • Tech Level: High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsGreat MP3 USB Playback

Pros: Plays MP3s from my micro SD USB adapter, can navigate MP3 folders on receiver's display panel with remote without a TV hooked up, has a setting for enhanced MP3 playback, Subwoofer output for my Sony 15", tons of connections, sounds great, price.

Cons: Manual does not explain MP3 folder navigation except for OSD on TV.

1 out of 1 people found this review helpful. Did you? Yes No

  • Rick
  • 4/6/2013 8:37:40 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsWorks for me!

Pros: Everything works perfect for my movie/music needs

Cons: none

1 out of 1 people found this review helpful. Did you? Yes No

  • N/A
  • 3/25/2013 9:18:12 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsNice Receiver!

Pros: no problems with the HDMI board like other people say,
great sound haven't pushed it passed 50 volume
tho. Great sound! but a little under-powered compared to Yamaha etc...great for a starter!

HIGHLY RECOMMEND!

Cons: NONE so far!

1 out of 1 people found this review helpful. Did you? Yes No

  • nuttyriv3r
  • 3/20/2013 7:28:43 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsSatisfactory

Pros: Great sound, great features, easy to use and set up, solid, hasn't broken yet. Has a plethora of settings to tweak, which I appreciate. Plays from Android phones via USB fine. Very basic navigation. Has many different preset options to switch through for TV, digital video, music and gaming.

Cons: None yet.

Other Thoughts: I bought this (because it was dirt cheap - thanks Newegg) because my aging HT in a box needed to be replaced. I also wanted it to simplify all of the device connections, so having 4 HDMI units going in and 1 HDMI out to TV is incredibly helpful. Yes component isn't upscaled to HDMI, but it's not a big deal. I also bought this over the network versions because of all of the bad press regarding Onkyo's firmware issues. I decided a simple machine that doesn't need firmware upgrades is good enough. Streaming can be done through a Roku or something anyway. So with that said - it's simple (with the ability to get complicated if you need it to), and it works, and it produces a fine amount of sound for my medium sized TV room.

2 out of 2 people found this review helpful. Did you? Yes No

  • N/A
  • 3/20/2013 3:42:56 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggsMine was sent back RMA

Pros: Should have been good?? NOT Newegg's fault.

Cons: My receiver was non-functional in the respect that it was programmed as a wrong model (presumably from the factory). Made it impossible to set up as the unit could not complete (missing components required for THAT model). QOA must have been severely lacking!

Other Thoughts: My opinion of Onkyo has been down-graded due to my experience. Onkyo support was unhelpful, and they were as shocked as I was about the situation. Newegg was not at fault.

2 out of 3 people found this review helpful. Did you? Yes No

  • NE7X
  • 1/11/2013 10:16:00 AM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsA lot of amplifier for the $$$$

Pros: Works perfect, great sound.

Cons: Complex to set up and configure. Too many menus and options.

Other Thoughts: I you are looking for a simple stereo home amplifier, this is not it. If you want an entry level 5.1 home amplifier, this is it.

4 out of 5 people found this review helpful. Did you? Yes No

  • N/A
  • 11/7/2012 7:47:34 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

2 out of 5 eggsIn the shop after 1 & 1/2 months

Pros: Cheap. All the features that I need. Easy on-screen setup.

Cons: After about a month and a half, one of the 5 HDMI inputs stopped working. The unit is in the shop now for about 2 weeks, they're waiting for a part from the manufacturer. I bought this receiver based on the assumption that Onkyo was a reliable brand, this is my first Onkyo product; I may have to change my assumption.

4 out of 7 people found this review helpful. Did you? Yes No

  • Happycu
  • 10/28/2012 5:01:44 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsTotally Boombastic

Pros: I bought this for my kids game room for the media pc, xbok 360, uverse hd tv, etc to upgrade an old HDMI-less Yamaha RXV-361 receiver. Item performs well. Only rated at 65wpc but its enough to power my Polk Monitor 50, 30, CS1, PSW10 system. Sound was actually surprisingly good! Low THD, decent SNR, good components (burrbrown DACs). Besides all those specs the sound was impressive for my setup and the kids definitely enjoy it. Good quality, feature rich at affordable price.

Cons: Will not do HDMI upconvert. I have a Wii using HD Components to the Onkyo receiver. The receiver will not pass it through HDMI, I have to connect another pair of components cables from the receiver to the TV. There is no option for the HDMI upconvert.

9 out of 12 people found this review helpful. Did you? Yes No

  • poit57
  • 8/28/2012 6:35:03 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggs

Pros: HDMI control - compatible TV will control the receiver's volume using the TV or TV remote's volume +/- buttons. On screen display of menus and volume adjustments. Assignable input for each channel (HDMI/Optical/Coax/analog).

Able tune to AM/FM radio while still watching TV (useful if watching a sports event and you prefer the radio announcer over the TV announcer).

Cons: Requires a powered sub. I guess that's pretty common for current receivers, but I was not able to re-use my dad's subwoofer from his 5.1 channel DVD player.

Other Thoughts: I purchased this for my dad who just moved into a new house. I have a Pioneer receiver that is 2 years old in the same price range and this receiver blows that one out of the water feature-wise. I guess that is just the progression of technology at work.

This receiver is connected to a 4 year old Toshiba LCD TV and the HDMI controls work great for the volume and power controls, which save a lot of reprogramming of universal remotes.

11 out of 11 people found this review helpful. Did you? Yes No
